Tractor · 1951Unverified

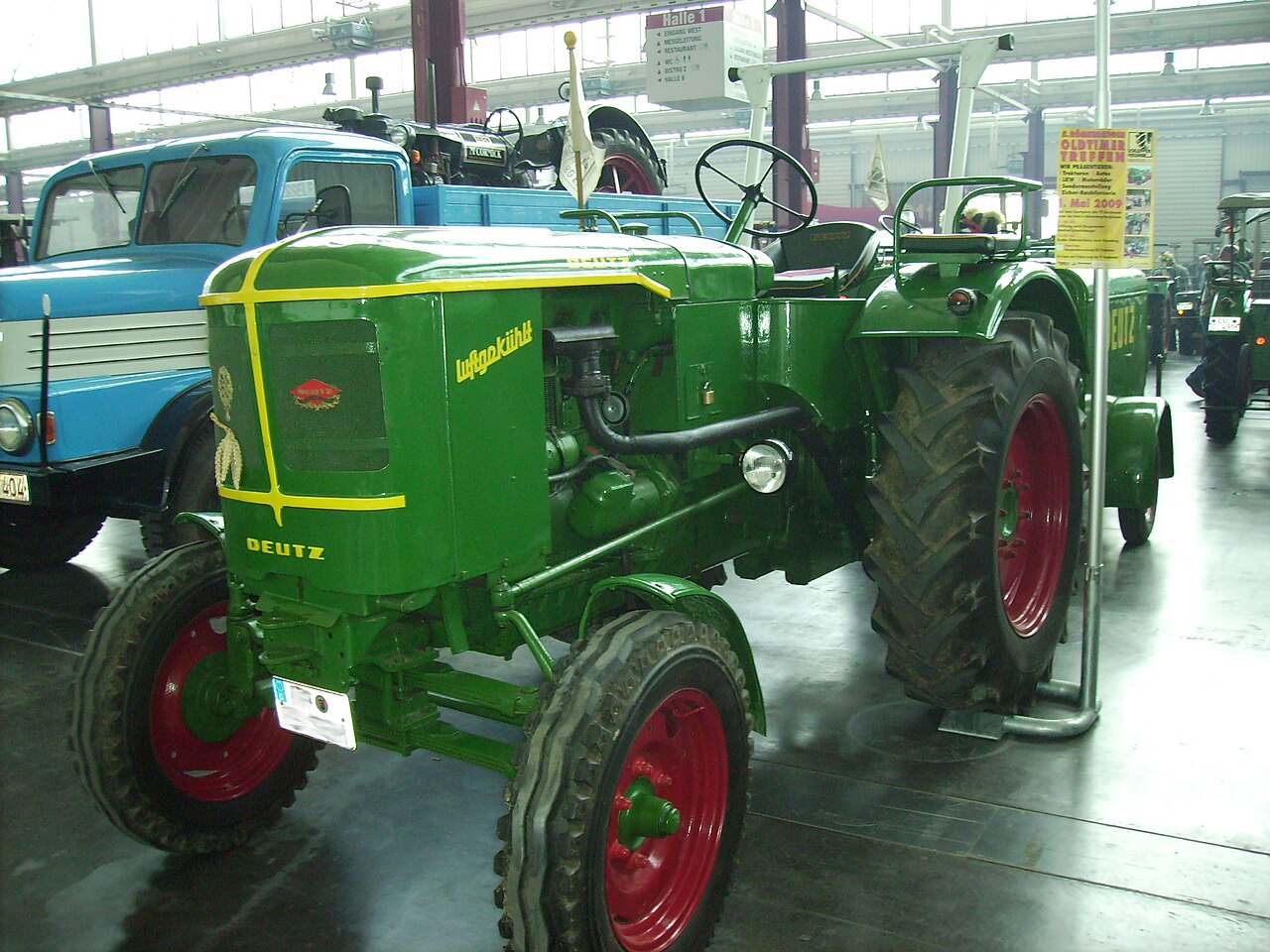

Deutz F3L514 51
Deutz F3L514 51 — Model year 1951-19561956-19581958-1964 · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
2500 kg
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
Deutz 4.0L 3-cyl dieselReference
Engine30.9 kWReference
DeutzReference
dieselReference
3-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke110 x 140 mmReference
Power30.9 kWReference
Rated RPM1450Reference
Starter typeelectricReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase207 cmReference
Weight2500 kgReference
Front tire6.00-20Reference
Rear tire13-30Reference
Ag front6.00-20Reference
Ag rear13-30Reference
Length334 cmReference
Width176 cmReference
Height184 cmReference
Rear tread139 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
