Tractor · 1942Unverified

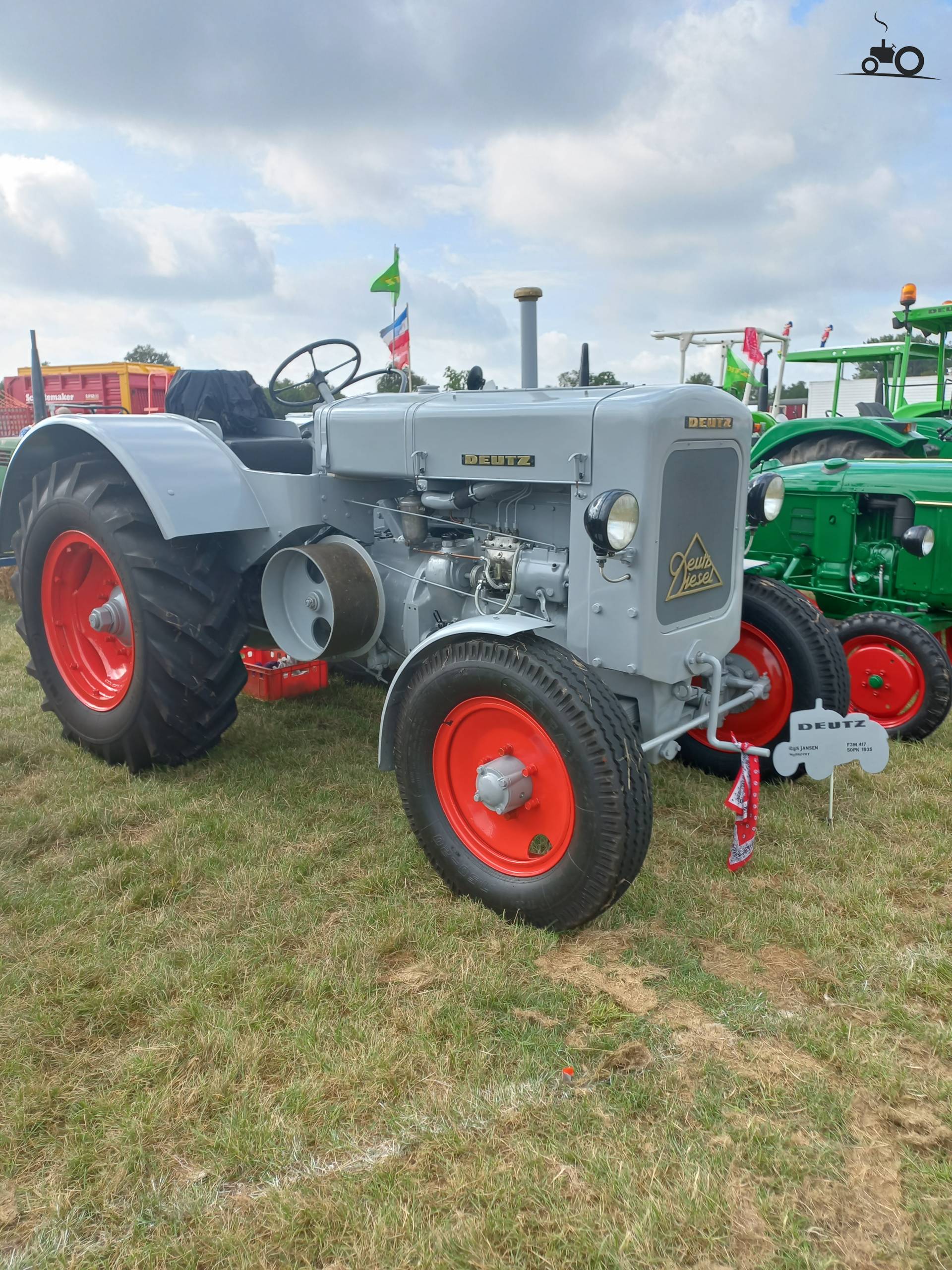

Deutz F3M417
Deutz F3M417 — FM Series · 49 hp. Reference specifications; pending source verification.
The Deutz F3M417 is a tractor model with a rated power of 49 hp, categorising it as a lighter model within its class. Constructed from 1942 to 1952, the F3M417 is equipped with a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 5-speed gearbox. Its listed operating weight is 3549 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
3549 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
49 hp
Recorded weight
3549 kg
Transmissions
5-speed gear
Production years
1942-1952
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Deutz 5.8L 3-cyl dieselReference
Fuel tank110.1 LReference
Engine36.8 kWReference
DeutzReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke120 x 170 mmReference
Power36.8 kWReference
Rated RPM1300Reference
StarterelectricReference
Starter volts24Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase219 cmReference
Weight3549 kgReference
Front tire6.50-20Reference
Rear tire12.75-28Reference
Ag front6.50-20Reference
Ag rear12.75-28Reference
Length355 cmReference
Width193 cmReference
Height177 cmReference
Height (cab)240 cmReference
Ground clearance24 cmReference
Front tread145 cmReference
Rear tread155 cmReference
Capacities
Diameter44 cmReference
Width23 cmReference
RPM810Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
