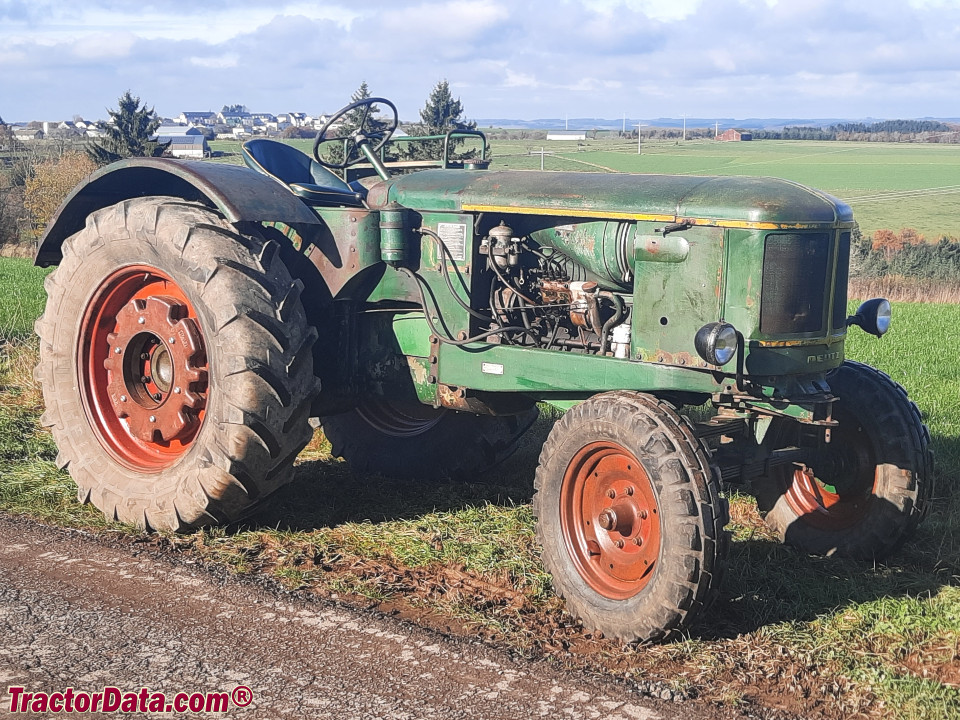

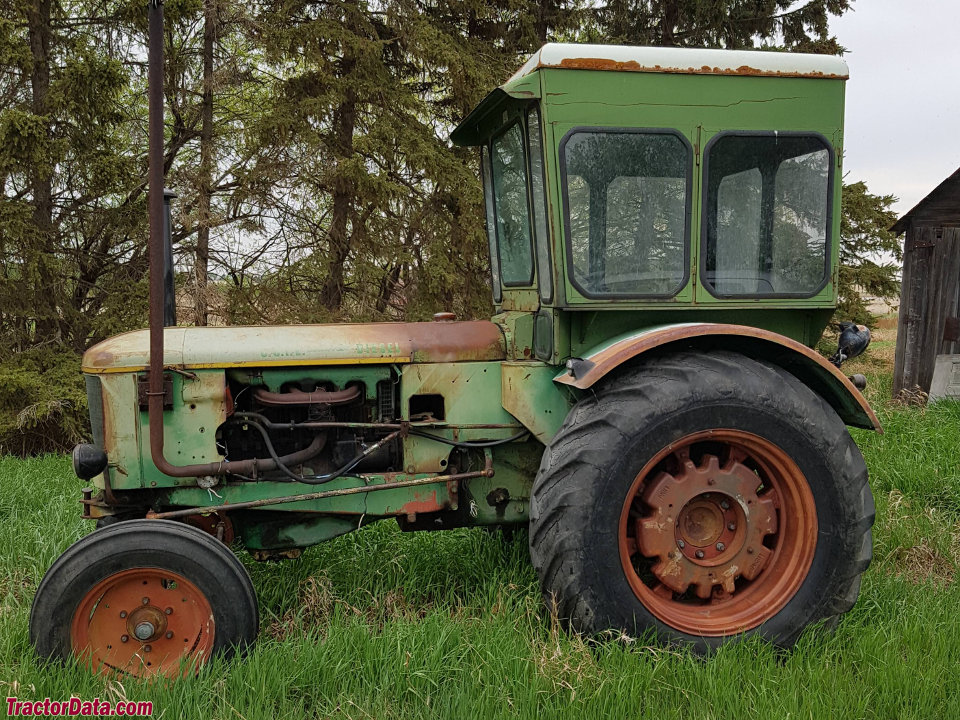

The Deutz F4L514 4 is a compact tractor with a rated output of 59 hp. It was manufactured from 1952 to 1966. This model features a 4-cylinder diesel air-cooled engine, driving through two-wheel drive with a 7-speed gearbox. The listed weight is 3025 kg, indicating it is suited to tasks involving approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
3025 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
59 hp
Recorded weight
3025 kg
Transmissions
7-speed gear
Production years
1952-1966
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerDeutzReference
Built in GermanyReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Variants
F4L514/460 PSReference
F4L514/565 PSReference
Engine
Deutz 5.3L 4-cyl dieselReference
Engine44.1 kWReference
DeutzReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement5.3 LReference
Bore/Stroke110 x 140 mmReference
Power44.1 kWReference
Rated RPM1650Reference
StarterelectricReference
Starter volts24Reference
Transmission
7-speed gearReference
TransmissionZFReference
TypegearReference
Gears7 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase244 cmReference
Weight3025 kgReference
Front tire6.50-20Reference
Rear tire13-30Reference
Ag front6.50-20Reference
Ag rear13-30Reference
Length389 cmReference
Width205 cmReference
Height199 cmReference
Clearance (front axle)46 cmReference
Rear tread154 to 180 cmReference
F4L514 Serial Number Location
Serial number on the left side of the tractor frame, between the axles.Reference
Capacities
Diameter34 cmReference
Width22 cmReference
RPM1390Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
