Tractor · 2018Unverified

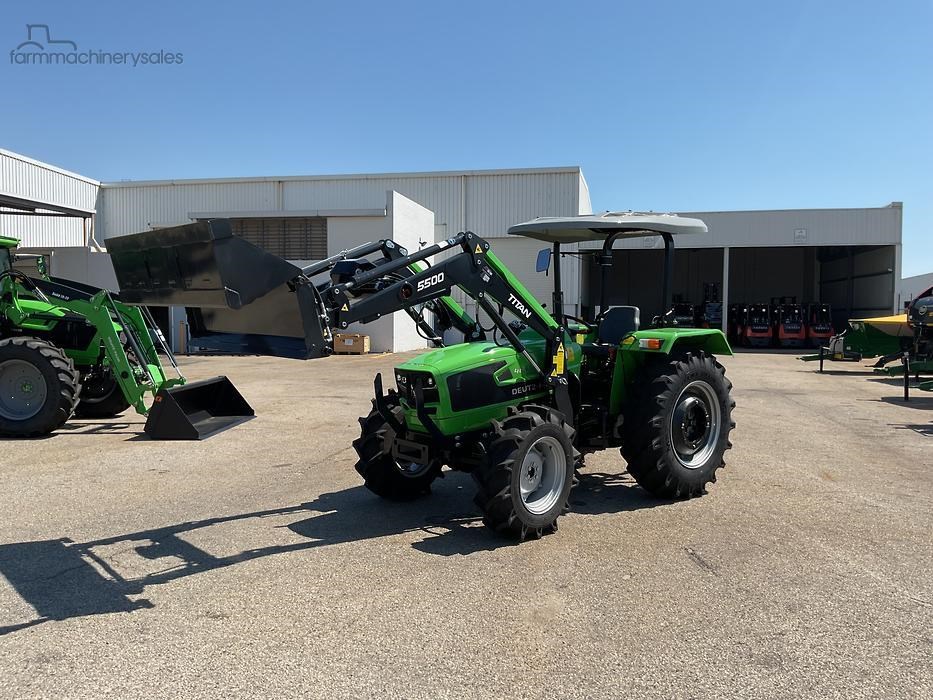

Deutz-Fahr 4050E Keyline
Deutz-Fahr 4050E Keyline — 4E Keyline Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
4630 to 5512 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanicalReference
Power steeringReference
Open operator station. Two-post ROPS available.Reference
Engine
SDF 3.0L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine36.8 kWReference
SDF 1000.3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIIAReference
Power36.8 kWReference
Rated RPM2200Reference
Torque184.0 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
12-speed creeperReference
8-speed partially synchronizedReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchmechanical dry discReference
TypecreeperReference
Gears12 forward and 3 reverseReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves2 to 4Reference
Pump flow31.0 lpmReference
Rear TypeIIReference
Rear lift1599 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase192 cmReference
4WD Wheelbase195 cmReference
Weight4630 to 5512 poundsReference
Length355 cmReference
Width180 cmReference
Height (steering wheel)163 cmReference
2WD ROPS Weight2100 kgReference
4WD ROPS Weight2500 kgReference
2WD Front tread146 cmReference
4WD Front tread148 cmReference
Rear tread144 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
