Tractor · 2018Unverified

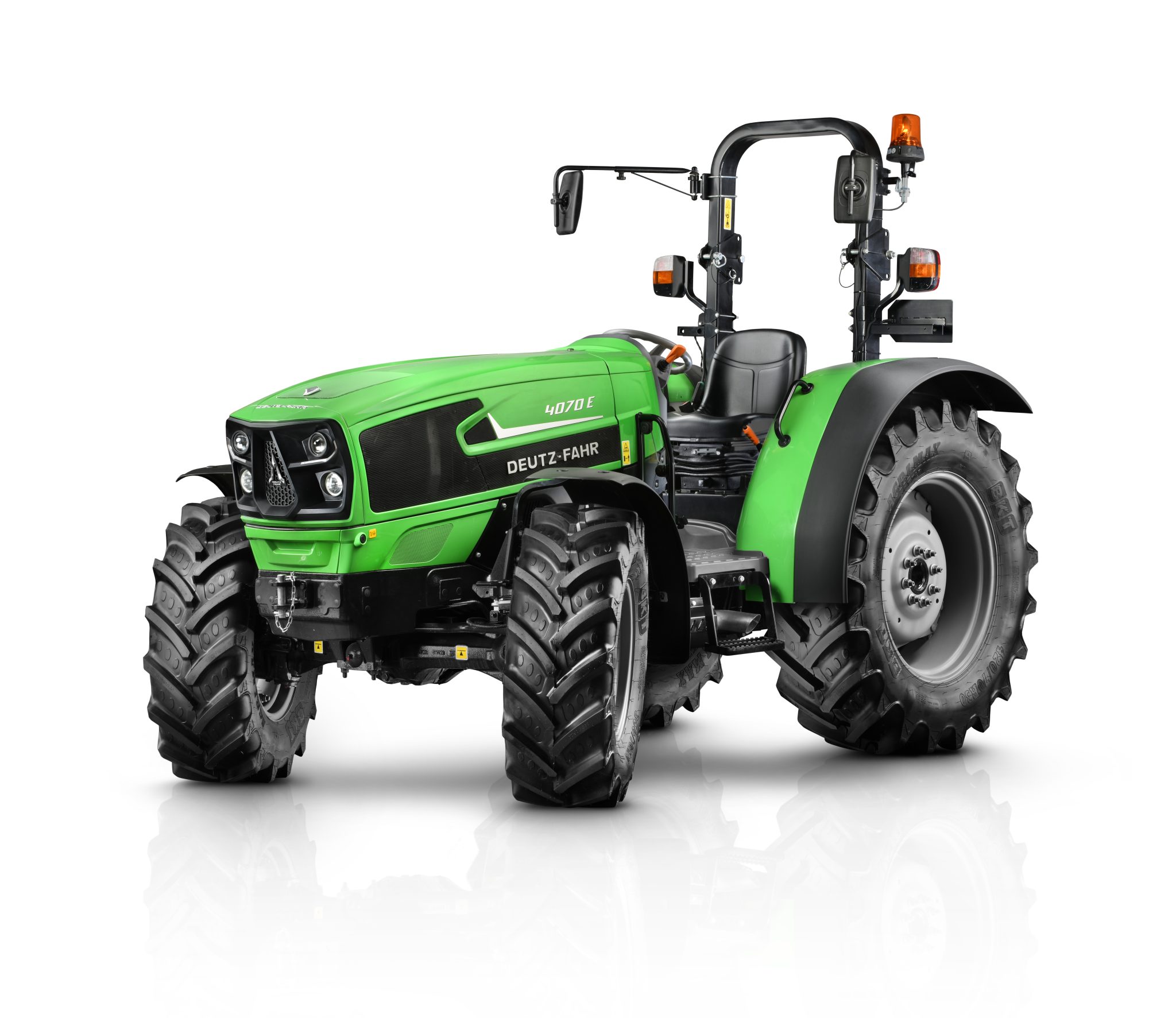

Deutz-Fahr 4070E

Name: Deutz-Fahr 4070E
Brand: Deutz-Fahr

Deutz-Fahr 4070E — 4E Series · 64 hp. Reference specifications; pending source verification.

The Deutz-Fahr 4070E is a compact tractor rated at 64 hp. Manufactured in 2018, it features a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a 12-speed gearbox and four-wheel drive. Its listed weight ranges from 6173 to 6614 pounds. This model is suitable for jobs covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Weight

6173 to 6614 pounds

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

64 hp

Transmissions

12-speed gear

Production years

2018-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanicalReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

SDF 2.9L 3-cyl dieselReference

Fuel tank74.9 LReference

Engine (gross)48.0 kWReference

SDF FARMotion KD3TAReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement2.9 LReference

Bore/Stroke103 x 115 mmReference

EmissionsStage IIIBReference

Rated Power (gross)48.0 kWReference

Rated RPM2200Reference

Torque292.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed gearReference

8-speed partially synchronizedReference

15-speed partially synchronizedReference

TypegearReference

Gears12 forward and 3 reverseReference

Typepartially synchronizedReference

Gears8 forward and reverseReference

Four synchronized gears in two ranges with shuttle.Reference

Gears15 forward and reverseReference

Five synchronized gears in three ranges with shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Valves1 to 3Reference

Pump flow42.0 lpmReference

Pump flow50.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2500 kgReference

Rear lift3500 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000Reference

Dimensions

2WD Wheelbase216 cmReference

4WD Wheelbase210 cmReference

Weight6173 to 6614 poundsReference

Front tire280/85R20Reference

Rear tire380/85R28Reference

Standard tires (ag)Front: 280/85R20. Rear: 380/85R28Reference

Length386 cmReference

Width178 cmReference

2WD2800 kgReference

4WD3000 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

2WD Max capacity3754 kgReference

4WD Max capacity4799 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
