Tractor · 2018Unverified

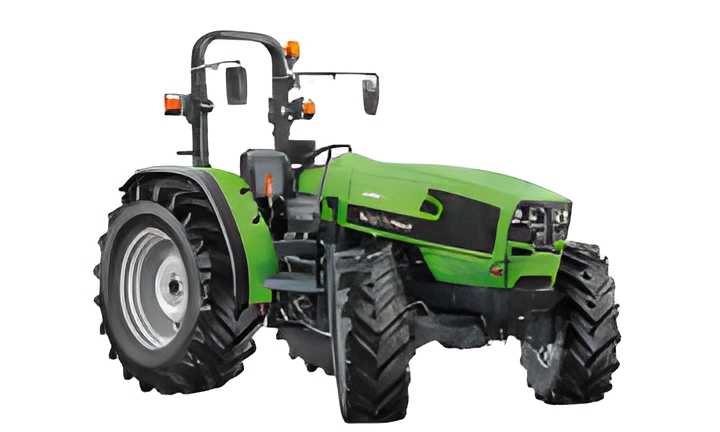

Deutz-Fahr 4080E
Deutz-Fahr 4080E — 4E Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
6173 to 6614 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanicalReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
SDF 2.9L 3-cyl dieselReference
Fuel tank74.9 LReference
Engine (gross)55.4 kWReference
SDF FARMotion KD3TAReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.9 LReference
Bore/Stroke103 x 115 mmReference
EmissionsStage IIIBReference
Rated Power (gross)55.4 kWReference
Rated RPM2200Reference
Torque342.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
8-speed partially synchronizedReference
15-speed partially synchronizedReference
TypegearReference
Gears12 forward and 3 reverseReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Four synchronized gears in two ranges with shuttle.Reference
Gears15 forward and reverseReference
Five synchronized gears in three ranges with shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Valves1 to 3Reference
Pump flow42.0 lpmReference
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2500 kgReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000Reference
Dimensions
2WD Wheelbase216 cmReference
4WD Wheelbase210 cmReference
Weight6173 to 6614 poundsReference
Front tire320/85R20Reference
Rear tire420/85R28Reference
Standard tires (ag)Front: 320/85R20. Rear: 420/85R28Reference
Length386 cmReference
Width183 cmReference
2WD2800 kgReference
4WD3000 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
2WD Max capacity3754 kgReference
4WD Max capacity4799 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
