Tractor · 2018Unverified

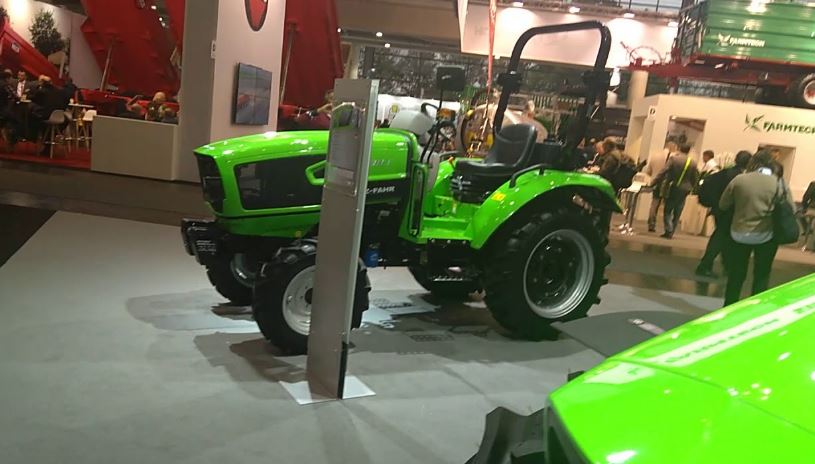

Deutz-Fahr 4085E
Deutz-Fahr 4085E — 4E Series · 81 hp. Reference specifications; pending source verification.
The Deutz-Fahr 4085E is a tractor featuring an 81 hp rated output, positioning it within the middle power range of its class. Produced in 2018, the 4085E is equipped with a 3-cylinder turbocharged intercooled diesel liquid-cooled engine, which transmits power through a 30-speed gearbox and four-wheel drive system. Weighing between 5952 and 6945 pounds, this tractor is designed for agricultural tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Weight
5952 to 6945 pounds
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
81 hp
Transmissions
30-speed partially synchronized
Production years
2018-2018
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanicalReference
Power steeringReference
Wet disc brakesReference
Open operator station. Cab optional with air-conditioning.Reference
Engine
SDF 3.0L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine60.3 kWReference
SDF 1000.3 WTIReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsStage IIIAReference
Power60.3 kWReference
Torque318.0 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed partially synchronizedReference
Typepartially synchronizedReference
Gears30 forward and 15 reverseReference
Five synchronized gears in three ranges with shuttle and underdrive.Reference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow42.0 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
2WD Wheelbase204 cmReference
4WD Wheelbase197 cmReference
Weight5952 to 6945 poundsReference
Width177 cmReference
2WD Open2699 kgReference
4WD Open3000 kgReference
2WD Cab2849 kgReference
4WD Cab3150 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
2WD Max capacity3800 kgReference
4WD Max capacity4799 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
