Tractor · 2018Unverified

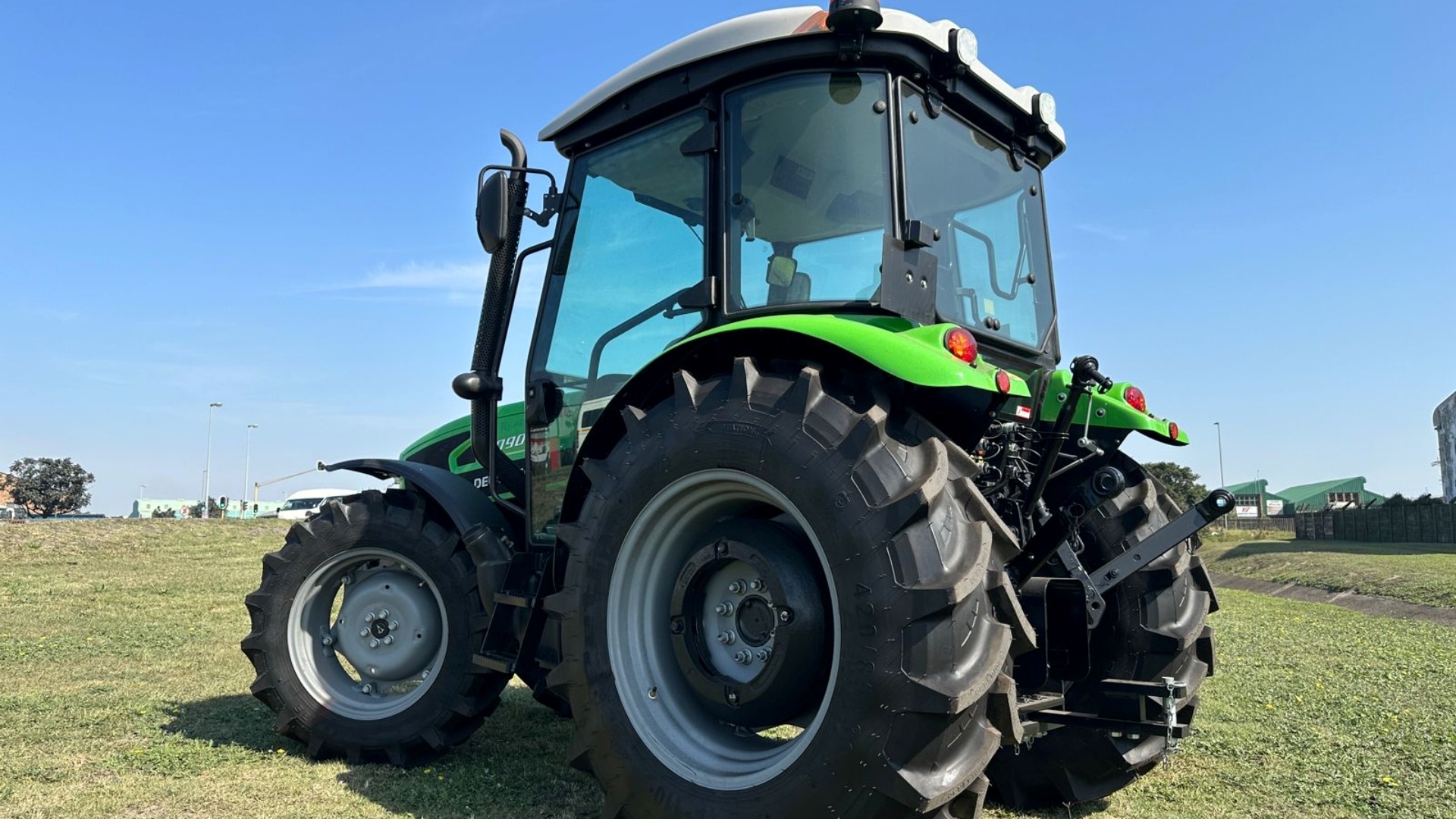

Deutz-Fahr 4090.4E
Deutz-Fahr 4090.4E — 4E Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
6834 to 7165 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanicalReference
Power steeringReference
Wet disc brakesReference
Open operator station. Cab optional with air-conditioning.Reference
Engine
SDF 4.0L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine62.5 kWReference
SDF 1000.4 WTIReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
EmissionsStage IIIAReference
Power62.5 kWReference
Torque348.1 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed partially synchronizedReference
Typepartially synchronizedReference
Gears30 forward and 15 reverseReference
Five synchronized gears in three ranges with shuttle and underdrive.Reference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow42.0 lpmReference
Rear TypeIIReference
Rear lift3500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase197 cmReference
Weight6834 to 7165 poundsReference
Width177 cmReference
Open3099 kgReference
Cab3250 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity4799 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
