Tractor · 2018Unverified

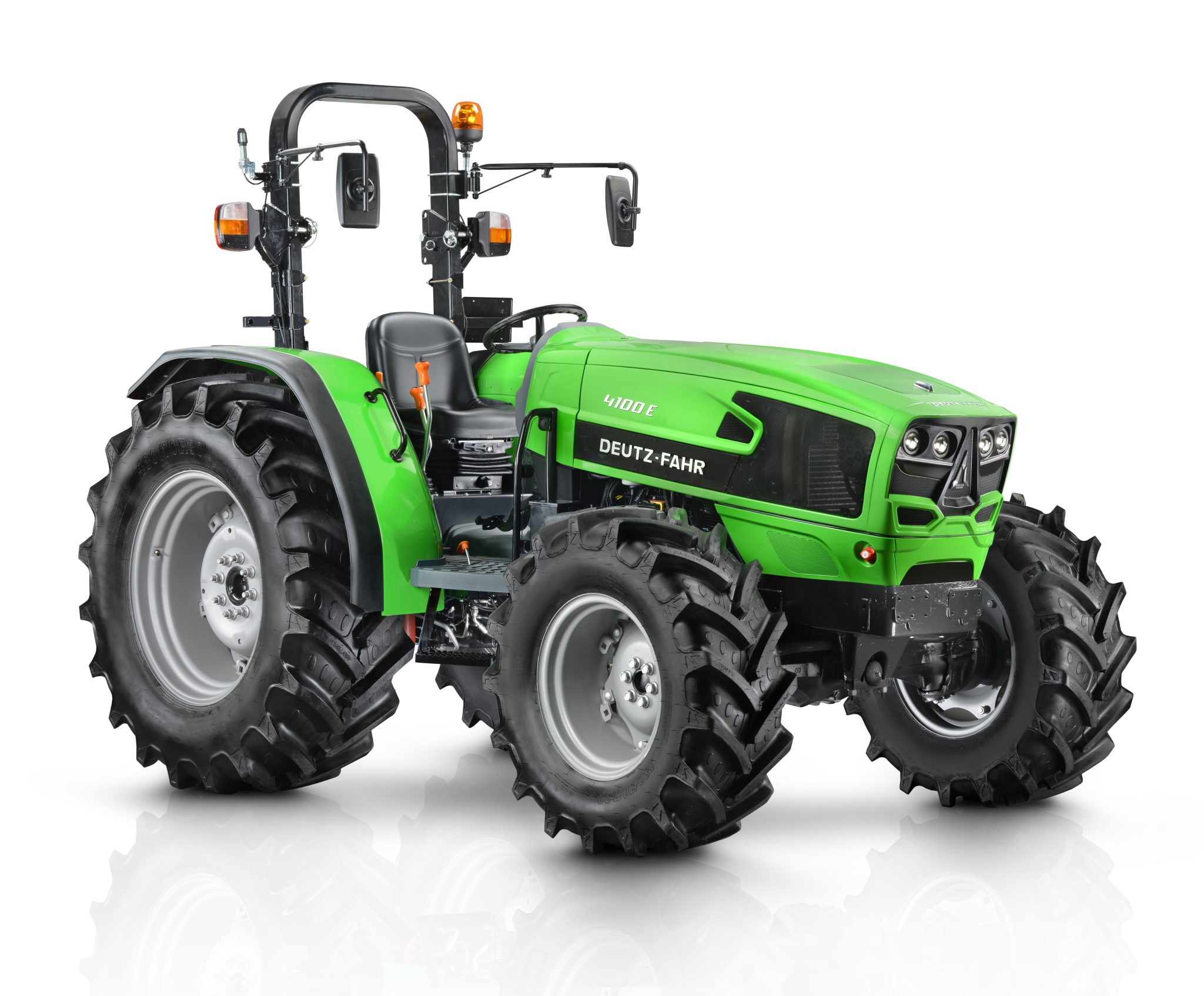

Deutz-Fahr 4100E

Name: Deutz-Fahr 4100E
Brand: Deutz-Fahr

Deutz-Fahr 4100E — 4E Series · 95 hp. Reference specifications; pending source verification.

The Deutz-Fahr 4100E is a tractor model with a rated output of 95 hp, positioning it in the middle of its class for power. It was first produced in 2018. Equipped with a 3-cylinder turbocharged, intercooled diesel liquid-cooled engine, it features a four-wheel drive system with a 15-speed gearbox. The listed weight is 3000 kg, and it is designed for tasks involving areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

95 hp

Weight

3000 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

95 hp

Recorded weight

3000 kg

Transmissions

15-speed partially synchronized

Production years

2018-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

SDF 2.9L 3-cyl dieselReference

Fuel tank74.9 LReference

Engine (gross)71.0 kWReference

Engine (max)71.0 kWReference

SDF FARMotion KD3TAReference

turbocharged intercooled dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement2.9 LReference

Bore/Stroke103 x 115 mmReference

EmissionsStage IIIBReference

Rated Power (gross)71.0 kWReference

Maximum Power (gross)71.0 kWReference

Rated RPM2200Reference

Torque369.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

15-speed partially synchronizedReference

8-speed partially synchronizedReference

Typepartially synchronizedReference

Gears15 forward and reverseReference

Five synchronized gears in three ranges with shuttle.Reference

Gears8 forward and reverseReference

Four synchronized gears in two ranges with shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Valves1 to 3Reference

Pump flow50.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2500 kgReference

Rear lift3500 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000Reference

Dimensions

Wheelbase210 cmReference

Weight3000 kgReference

Front tire360/70R24Reference

Rear tire480/70R30Reference

Standard tires (ag)Front: 360/70R24. Rear: 480/70R30Reference

Length386 cmReference

Width200 cmReference

Max weight4799 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
