Tractor · 2013Unverified

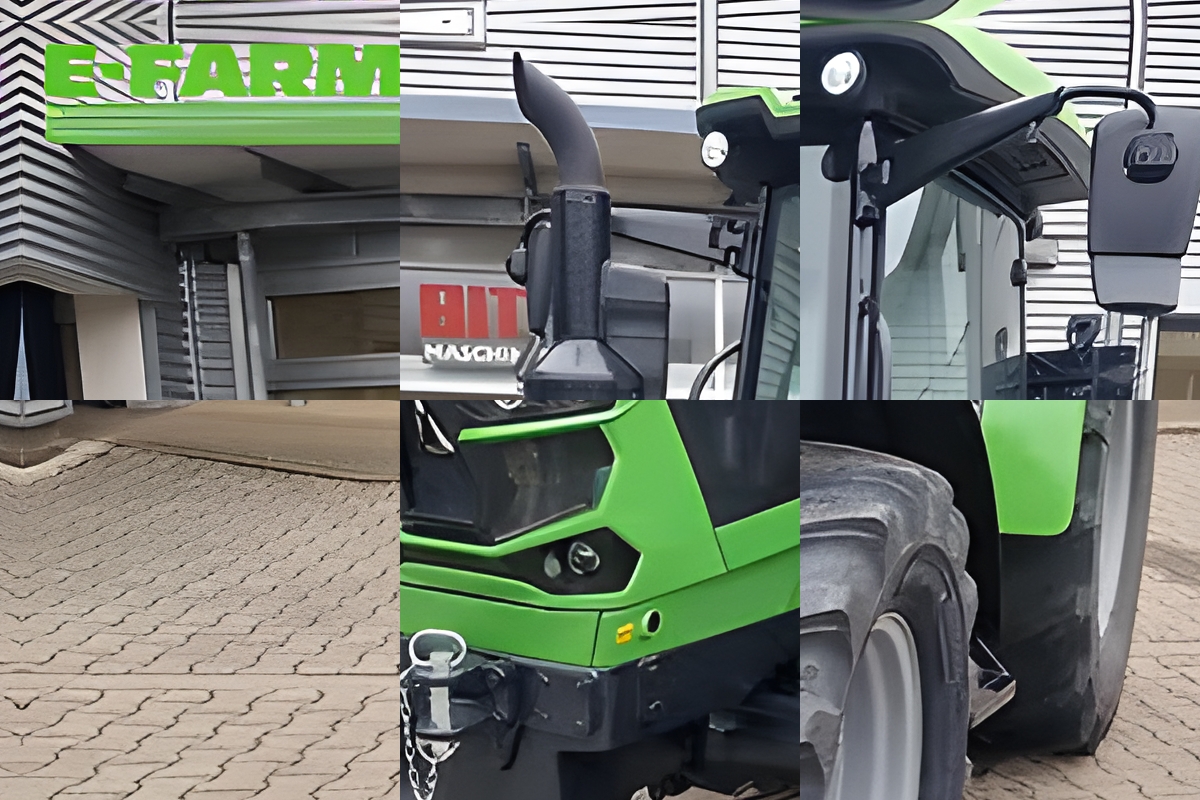

Deutz-Fahr 5100
Deutz-Fahr 5100 — 5 Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
9811 to 10031 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
5100TTVCVT transmissionReference
Engine
Deutz 3.6L 4-cyl dieselReference
Fuel tank202.9 LReference
Engine (gross)69.5 kWReference
Engine (max)72.5 kWReference
Deutz TCD 3.6 L04Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke98 x 120 mmReference
Rated Power (gross)69.5 kWReference
Maximum Power (gross)72.5 kWReference
Fuel systemcommon railReference
Rated RPM2200Reference
Torque397.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.0 LReference
Oil change500 hReference
Transmission
30-speed partial power shiftReference
60-speed partial power shiftReference
infinitely variable transmissionReference
Typepartial power shiftReference
Gears30 forward and reverseReference
Five gears in two ranges with three-speed power shift and power shuttle.Reference
Gears60 forward and reverseReference
Five gears in four ranges with three-speed power shift and power shuttle.Reference
TransmissionZF TTVReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pressure185.0 barReference
Pump flow60.0 lpmReference
Pump flow90.1 lpmReference
Rear TypeIIReference
Rear lift4650 kgReference
Rear lift6600 kgReference
Front lift1850 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000/1000EReference
Rear PTO Type540/540E/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase243 cmReference
Weight9811 to 10031 poundsReference
Front tire420/70R24Reference
Rear tire480/70R34Reference
Standard tires (ag)Front: 420/70R24. Rear: 480/70R34Reference
Length426 cmReference
Width220 cmReference
Height (cab)194 cmReference
Front tread172 to 212 cmReference
Rear tread170 to 210 cmReference
4450 kgReference
TTV4550 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity7500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
