Tractor · 2017Unverified

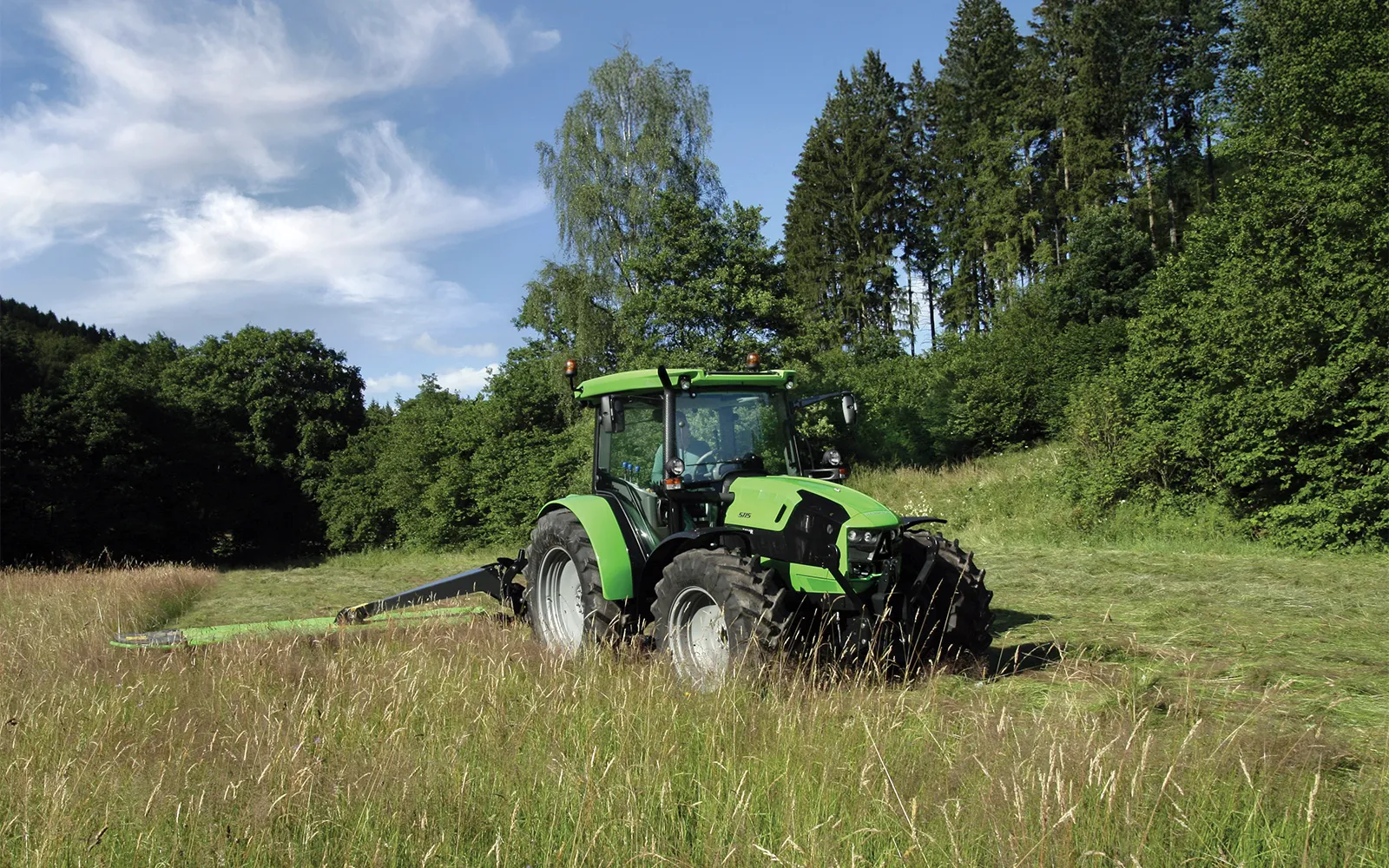

Deutz-Fahr 5115
Deutz-Fahr 5115 — 5 Series · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Weight
4500 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Engine
Deutz 3.6L 4-cyl dieselReference
Fuel tank135.1 LReference
Exhaust fluid (DEF)7.9 LReference
Engine (gross)83.0 kWReference
Engine (max)87.5 kWReference
Deutz TCD 3.6 L04Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke98 x 120 mmReference
Rated Power (gross)83.0 kWReference
Maximum Power (gross)87.5 kWReference
Rated RPM2000Reference
Torque476.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed partial power shiftReference
30-speed partial power shiftReference
TransmissionSDFReference
Typepartial power shiftReference
Gears20 forward and reverseReference
Five gears in two ranges with two-speed power shift and power shuttle. Also available with additional under-drive and super-creeper ranges, providing 40 total speeds in each direction.Reference
Gears30 forward and reverseReference
Five gears in two ranges with three-speed power shift and power shuttle. Also available with additional under-drive and super-creeper ranges, providing 60 total speeds in each direction.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow54.9 lpmReference
Pump flow60.0 lpmReference
Pump flow90.1 lpmReference
Rear TypeIIReference
Rear lift3420 kgReference
Rear lift4715 kgReference
Rear lift5259 kgReference
Front lift2100 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase236 cmReference
Weight4500 kgReference
Front tire420/85R24Reference
Rear tire460/85R34Reference
Standard tires (ag)Front: 420/85R24. Rear: 460/85R34Reference
Optional tires (ag)Front: 440/65R28. Rear: 540/65R38Reference
Length414 cmReference
Width216 cmReference
Height276 cmReference
Shipping weight4500 kgReference
Max weight7500 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Charging volts12Reference
Battery CCA650Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
