Tractor · 2014Unverified

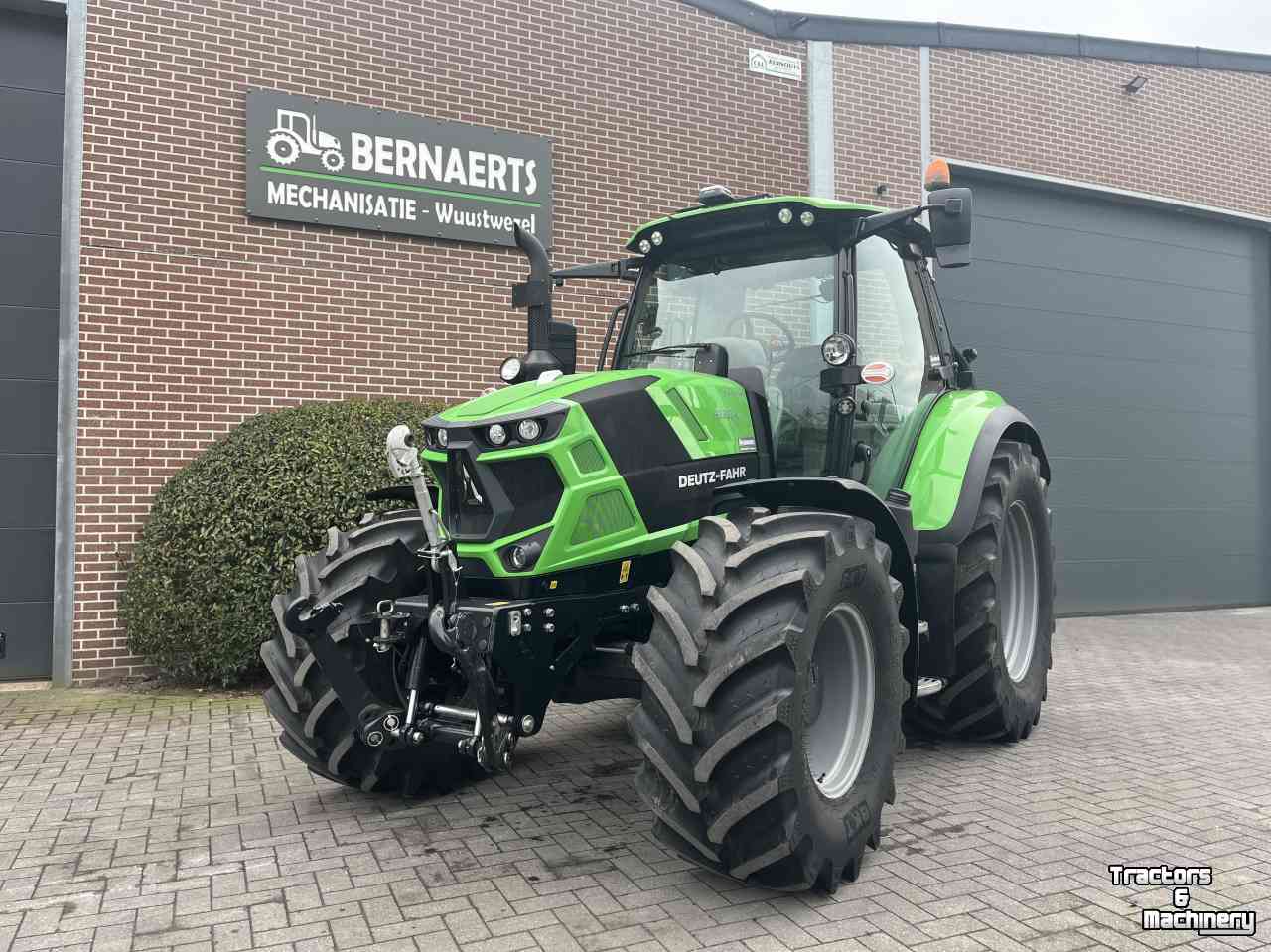

Deutz-Fahr 6130.4 TTV

Name: Deutz-Fahr 6130.4 TTV
Brand: Deutz-Fahr

Deutz-Fahr 6130.4 TTV — 6 TTV Agrotron Series · 124 hp. Reference specifications; pending source verification.

The Deutz-Fahr 6130.4 TTV is a tractor model featuring a rated output of 124 hp, categorising it amongst higher-powered machines in its class. First produced in 2014, this tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives a four-wheel drive system. It is designed for use on landholdings ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

124 hp

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

124 hp

Production years

2014-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

MaxiVision Cab standard with air-conditioning.Reference

Engine

Deutz 4.0L 4-cyl dieselReference

Engine (gross)92.5 kWReference

Engine (max)95.4 kWReference

Deutz TCD 4.1 L04 4VReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (gross)92.5 kWReference

Maximum Power (gross)95.4 kWReference

Fuel systemcommon railReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

PTO & Hydraulics

Typeload sensingReference

Pump flow120.0 lpmReference

Rear lift6200 kgReference

Rear PTOindependentReference

Dimensions

Wheelbase241 cmReference

Length432 cmReference

Width255 cmReference

Height (cab)293 cmReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
