Tractor · 2012Unverified

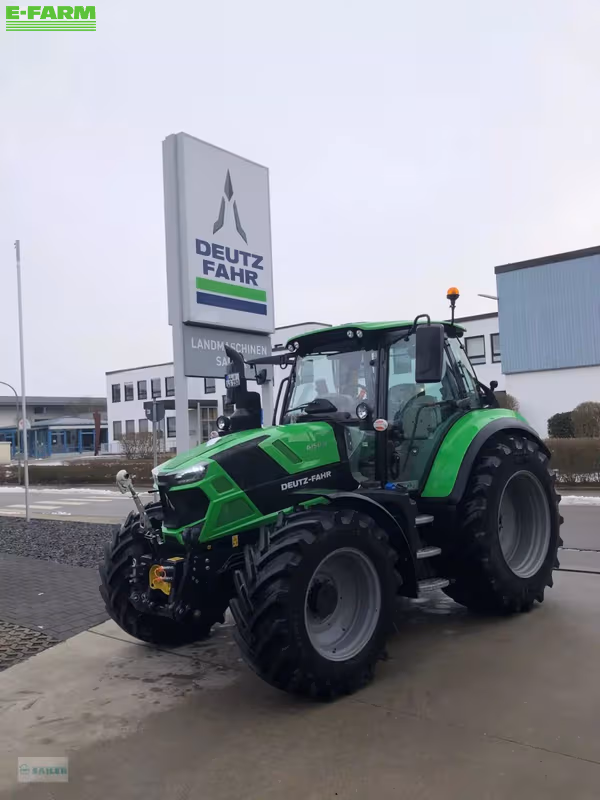

Deutz-Fahr 6150.4 TTV
Deutz-Fahr 6150.4 TTV — 6 TTV Agrotron Series · 137 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
137 hp
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
MaxiVision Cab standard with air-conditioning.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank230.1 LReference
Exhaust fluid (DEF)28.0 LReference
Engine (gross)102.2 kWReference
Engine (max)114.1 kWReference
Deutz TCD 4.1 L04 4VReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (gross)102.2 kWReference
Maximum Power (gross)114.1 kWReference
Fuel systemcommon railReference
Rated RPM2100Reference
Torque624.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Valves4 to 7Reference
Pump flow120.0 lpmReference
Pump flow160.1 lpmReference
Rear TypeIII/IIReference
Rear lift9200 kgReference
Front lift4000 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Engine RPM540@1946Reference
Engine RPM540E@1645Reference
Engine RPM1000@1946Reference
Engine RPM1000E@1645Reference
Front PTOindependentReference
Front PTO Type1000Reference
Front PTO Type1000EReference
Dimensions
Wheelbase241 cmReference
Front tire16.9R24Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 16.9R24. Rear: 18.4R38Reference
Length432 cmReference
Width255 cmReference
Height (cab)300 cmReference
Max weight10500 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
