Tractor · 2012Unverified

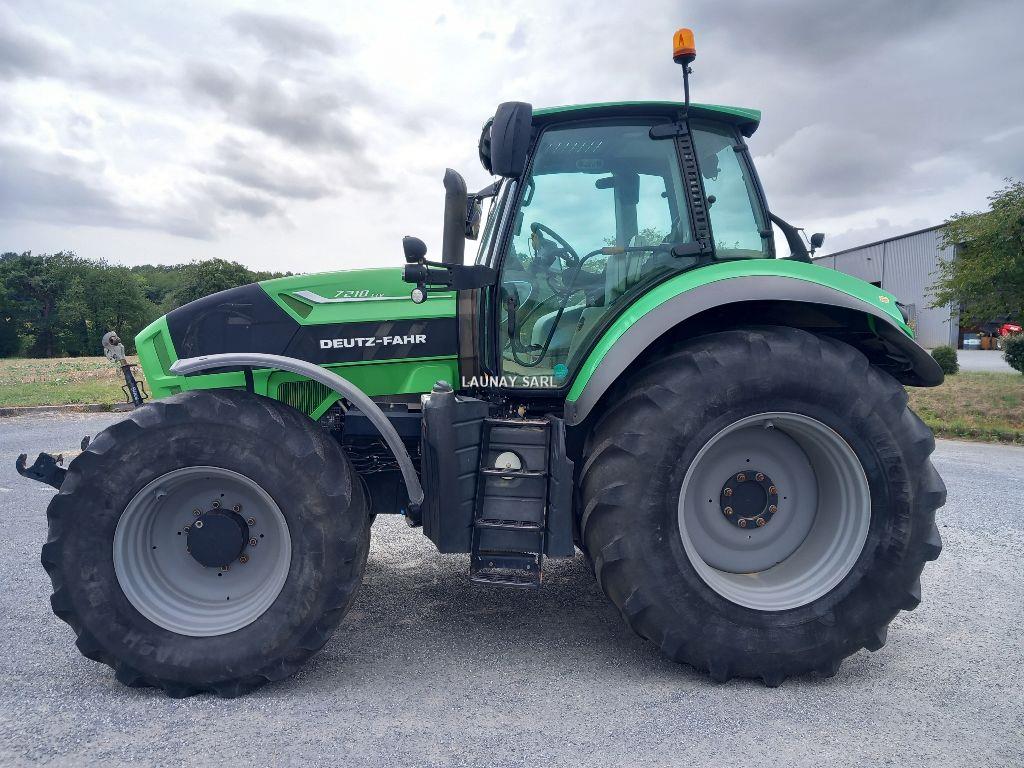

Deutz-Fahr 7210 TTV
Deutz-Fahr 7210 TTV — 7 TTV Agrotron Series · 186 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
186 hp
Weight
8580 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockautomatic front and rear differential locksReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning and suspension.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank434.9 LReference
Exhaust fluid (DEF)50.0 LReference
Engine (gross)138.7 kWReference
Engine (max)152.9 kWReference
Deutz TCD 6.1 L06 4VReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (gross)138.7 kWReference
Maximum Power (gross)152.9 kWReference
Fuel systemcommon railReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Starter power3.1 kWReference
Oil change500 hReference
PTO & Hydraulics
Typeload sensingReference
Valves4 to 7Reference
Pump flow120.0 lpmReference
Pump flow160.1 lpmReference
Steering flow43.9 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift10000 kgReference
Front HitchIII/IIReference
Front lift4500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase281 cmReference
Weight8580 kgReference
Front tire600/70R30Reference
Rear tire620/70R42Reference
Standard tires (ag)Front: 600/70R30. Rear: 620/70R42Reference
Length497 cmReference
Width249 cmReference
Height (cab)315 cmReference
Max weight11999 kgReference
Ground clearance55 cmReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH200Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
