Tractor · 2015Unverified

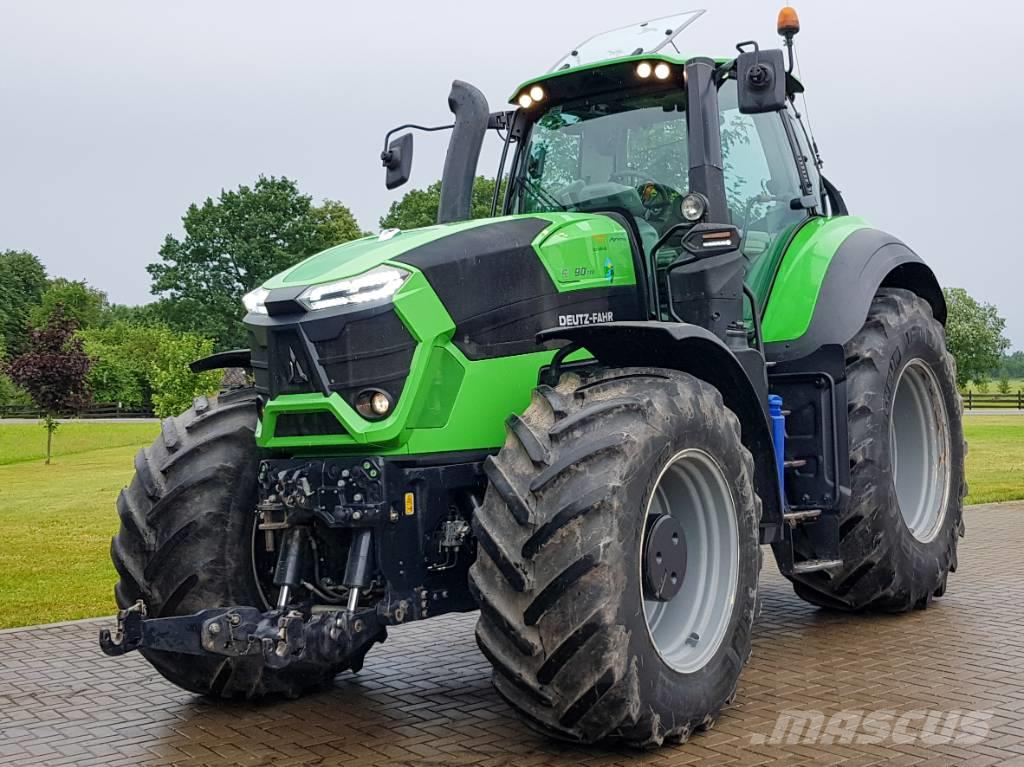

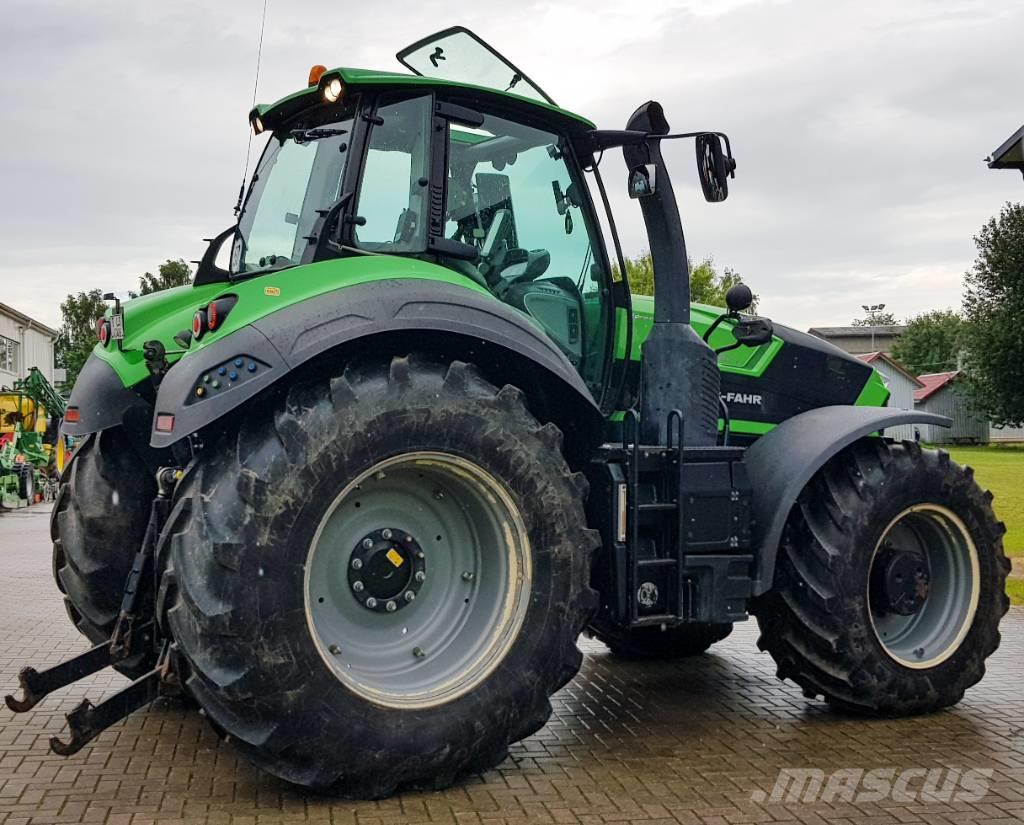

Deutz-Fahr 9290 TTV

Name: Deutz-Fahr 9290 TTV
Brand: Deutz-Fahr

Deutz-Fahr 9290 TTV — 9 TTV Agrotron Series · 277 hp. Reference specifications; pending source verification.

The Deutz-Fahr 9290 TTV is a tractor with a rated output of 277 hp, categorising it as a high-powered machine within its class. Manufactured in 2015, this tractor boasts a 6-cylinder turbocharged intercooled diesel liquid-cooled engine that drives the four-wheel drive. Weighing 11,999 kg, it is designed to tackle tasks on large areas of land exceeding 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

277 hp

Weight

11999 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

277 hp

Recorded weight

11999 kg

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockautomatic front and rear differential locksReference

Power steeringReference

Wet disc brakesReference

MaxiVision II Cab standard with air-conditioning.Reference

Engine

Deutz 7.8L 6-cyl dieselReference

Fuel tank599.9 LReference

Exhaust fluid (DEF)54.9 LReference

Engine (gross)206.6 kWReference

Engine (max)220.0 kWReference

Deutz TCD 7.8 L06Reference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.8 LReference

Bore/Stroke110 x 136 mmReference

Rated Power (gross)206.6 kWReference

Maximum Power (gross)220.0 kWReference

Fuel systemcommon railReference

Rated RPM2100Reference

Torque1205.5 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

PTO & Hydraulics

Typeclosed center load sensingReference

Valves4 to 8Reference

Pump flow160.1 lpmReference

Pump flow210.1 lpmReference

Rear lift11999 kgReference

Front lift5000 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540E/1000/1000EReference

Front PTOindependentReference

Front PTO Type1000Reference

Front PTO Type1000EReference

Dimensions

Wheelbase313 cmReference

Weight11999 kgReference

Front tire650/65R34Reference

Rear tire710/75R42Reference

Standard tires (ag)Front: 650/65R34. Rear: 710/75R42Reference

Length526 cmReference

Width255 cmReference

Height (cab)350 cmReference

Max weight18000 kgReference

Ground clearance40 cmReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Battery volts12Reference

Battery AH180Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
