Tractor · 2015Unverified

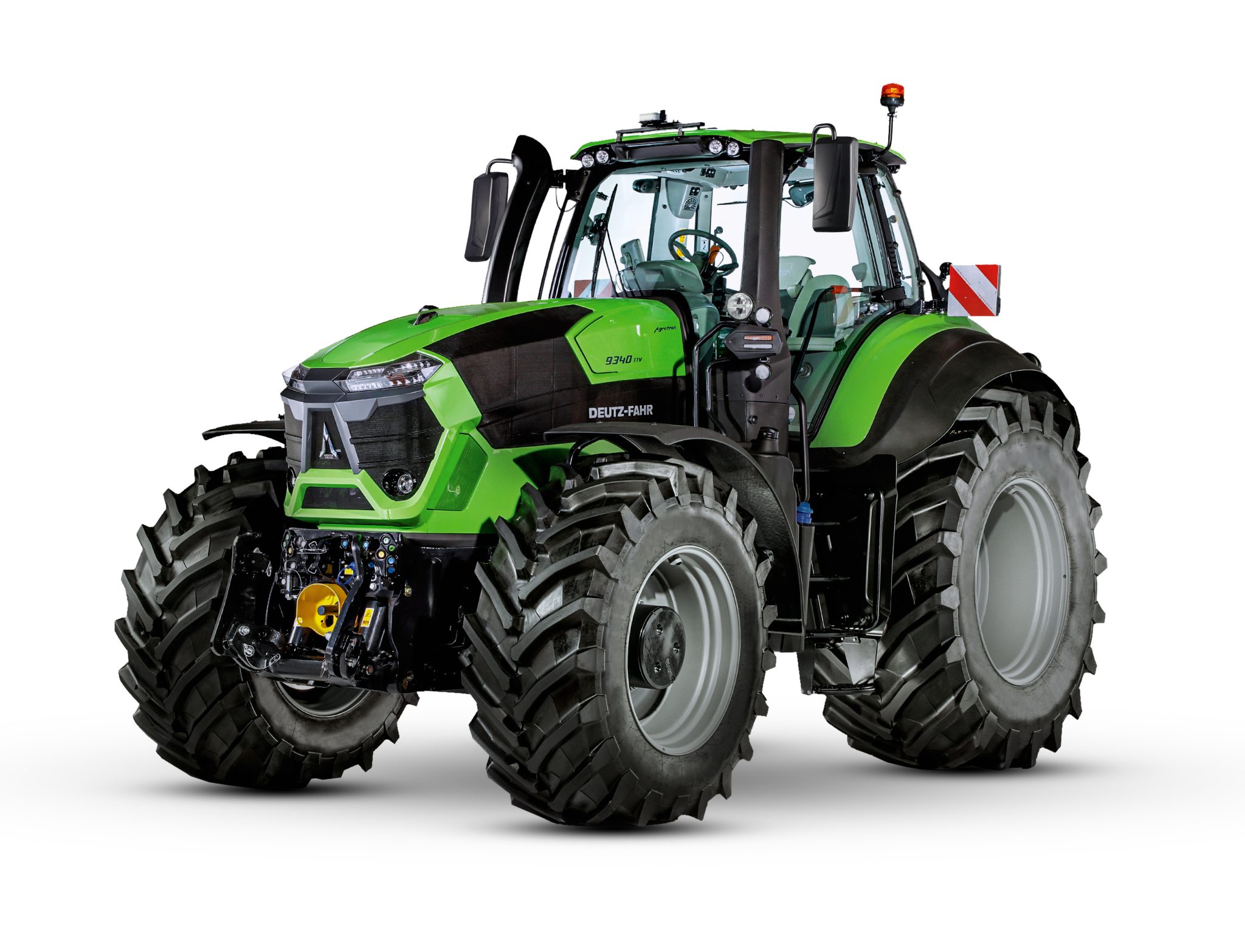

Deutz-Fahr 9310 TTV
Deutz-Fahr 9310 TTV — 9 TTV Agrotron Series · 296 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
296 hp
Weight
11999 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockautomatic front and rear differential locksReference
Power steeringReference
Wet disc brakesReference
MaxiVision II Cab standard with air-conditioning.Reference
Engine
Deutz 7.8L 6-cyl dieselReference
Fuel tank599.9 LReference
Exhaust fluid (DEF)54.9 LReference
Engine (gross)220.7 kWReference
Engine (max)232.7 kWReference
Deutz TCD 7.8 L06Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.8 LReference
Bore/Stroke110 x 136 mmReference
Rated Power (gross)220.7 kWReference
Maximum Power (gross)232.7 kWReference
Fuel systemcommon railReference
Rated RPM2100Reference
Torque1290.9 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
PTO & Hydraulics
Typeclosed center load sensingReference
Valves4 to 8Reference
Pump flow160.1 lpmReference
Pump flow210.1 lpmReference
Rear lift11999 kgReference
Front lift5000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Front PTO Type1000EReference
Dimensions
Wheelbase313 cmReference
Weight11999 kgReference
Front tire650/65R34Reference
Rear tire710/75R42Reference
Standard tires (ag)Front: 650/65R34. Rear: 710/75R42Reference
Length526 cmReference
Width255 cmReference
Height (cab)350 cmReference
Max weight18000 kgReference
Ground clearance40 cmReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH180Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
