Tractor · 2007Unverified

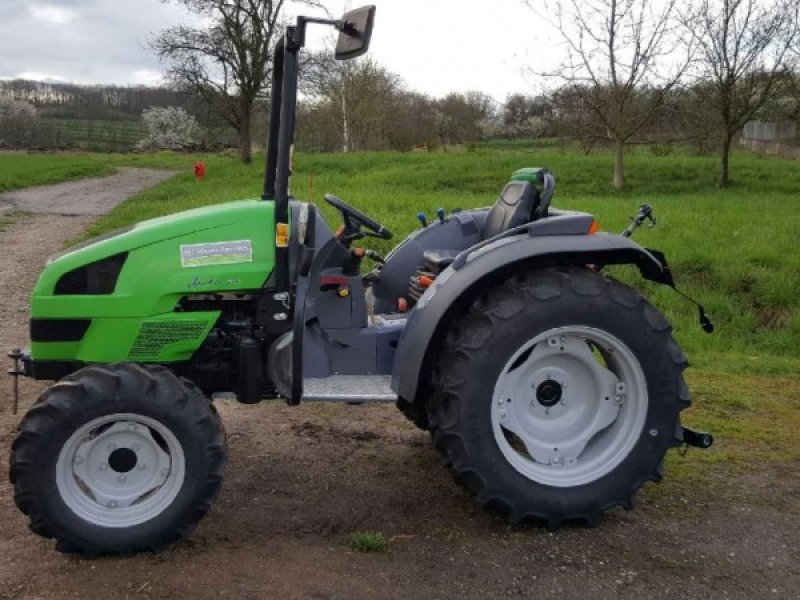

Deutz-Fahr Agrokid 210
Deutz-Fahr Agrokid 210 — Agrokid Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2491 to 3109 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding mid-mount ROPS. Cab optional with available air-conditioning.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank37.9 LReference
Fuel tank53.0 LReference
Engine28.5 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power28.5 kWReference
Rated RPM3000Reference
Torque85.0 NmReference
Torque RPM1900Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
16-speed creeperReference
TypeshuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow29.9 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase174 cmReference
Weight2491 to 3109 poundsReference
Length294 cmReference
Width125 cmReference
Height (ROPS)195 cmReference
Height (cab)213 cmReference
Ground clearance34 cmReference
Front tread107 to 119 cmReference
Rear tread104 to 113 cmReference
ROPS1129 kgReference
Cab1410 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity2299 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
