Tractor · 2007Unverified

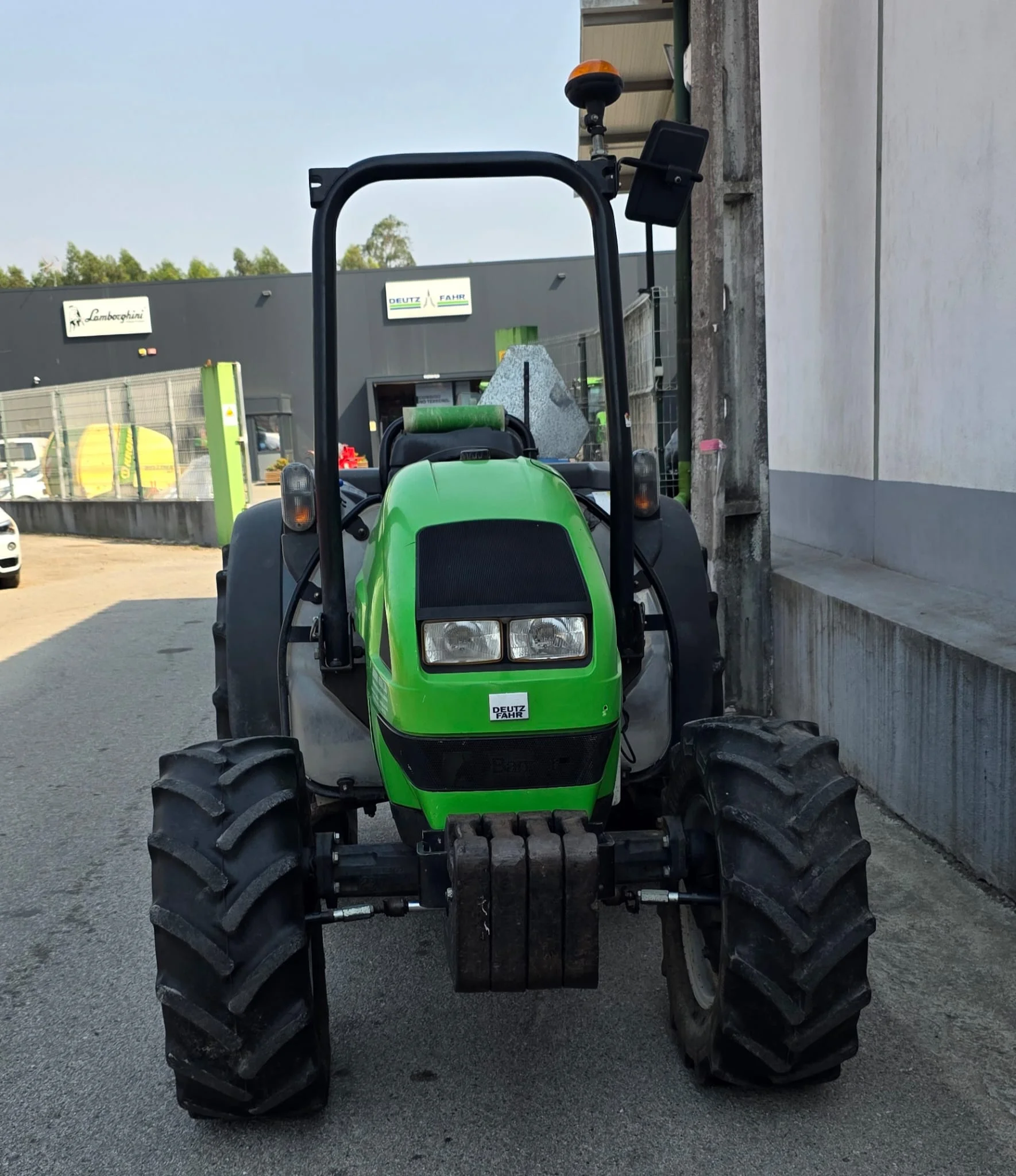

Deutz-Fahr Agrokid 220
Deutz-Fahr Agrokid 220 — Agrokid Series · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2661 to 3278 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding mid-mount ROPS. Cab optional with available air-conditioning.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank37.9 LReference
Fuel tank53.0 LReference
Engine31.5 kWReference
MitsubishiReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power31.5 kWReference
Rated RPM3000Reference
Torque105.0 NmReference
Torque RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
16-speed creeperReference
TypeshuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow29.9 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase174 cmReference
Weight2661 to 3278 poundsReference
Length297 cmReference
Width129 cmReference
Height (ROPS)201 cmReference
Height (cab)219 cmReference
Ground clearance39 cmReference
Front tread106 to 134 cmReference
Rear tread103 to 131 cmReference
ROPS1207 kgReference
Cab1486 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity2299 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
