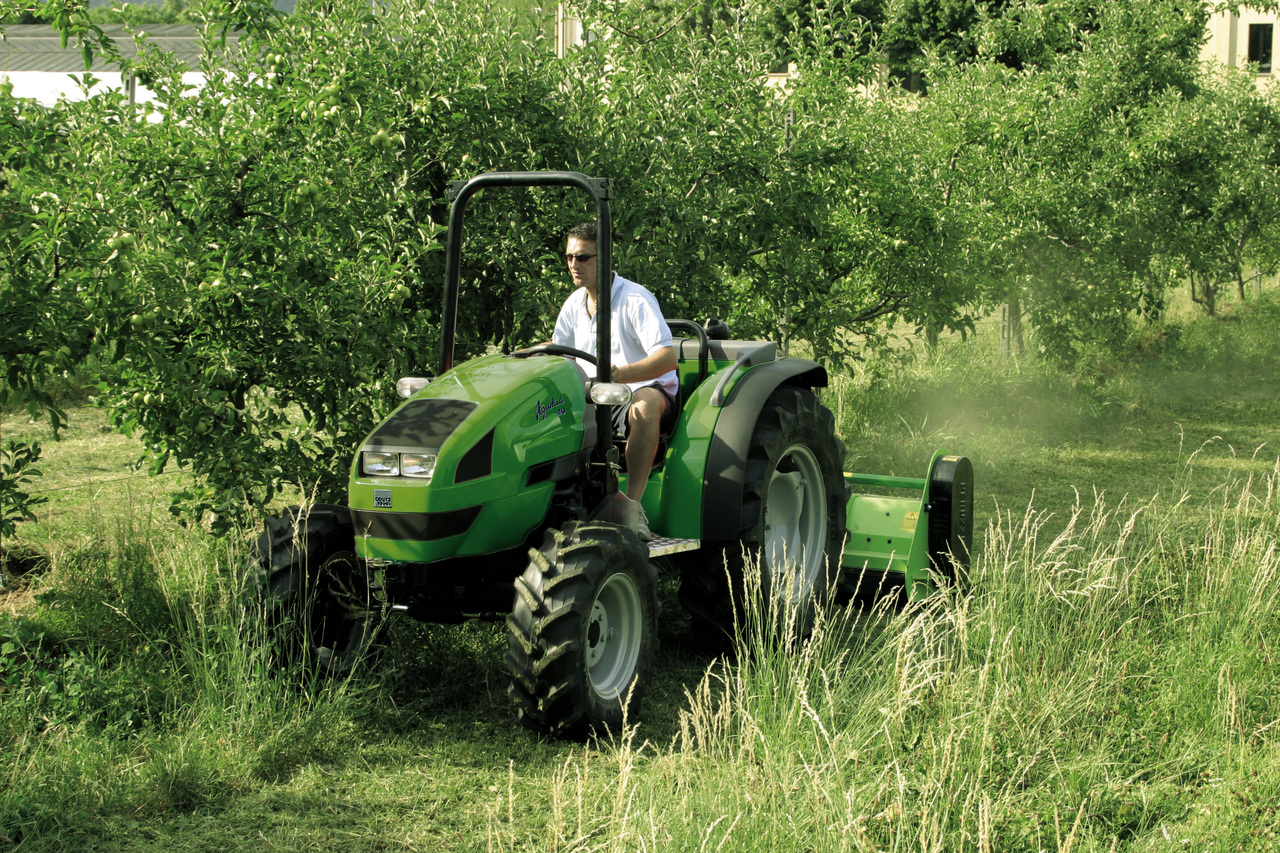

Deutz-Fahr Agrokid 30
Deutz-Fahr Agrokid 30 — Agrokid Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1247 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount folding ROPS. Cab optional.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank37.9 LReference
Engine26.0 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power26.0 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow29.9 lpmReference
Steering flow15.1 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase175 cmReference
Weight1247 kgReference
Front tire6.50/80-12Reference
Rear tire280/70R18Reference
Standard tires (ag)Front: 6.50/80-12. Rear: 280/70R18Reference
Length294 cmReference
Width104 cmReference
Height (steering wheel)124 cmReference
Ground clearance35 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
