Tractor · 1997Unverified

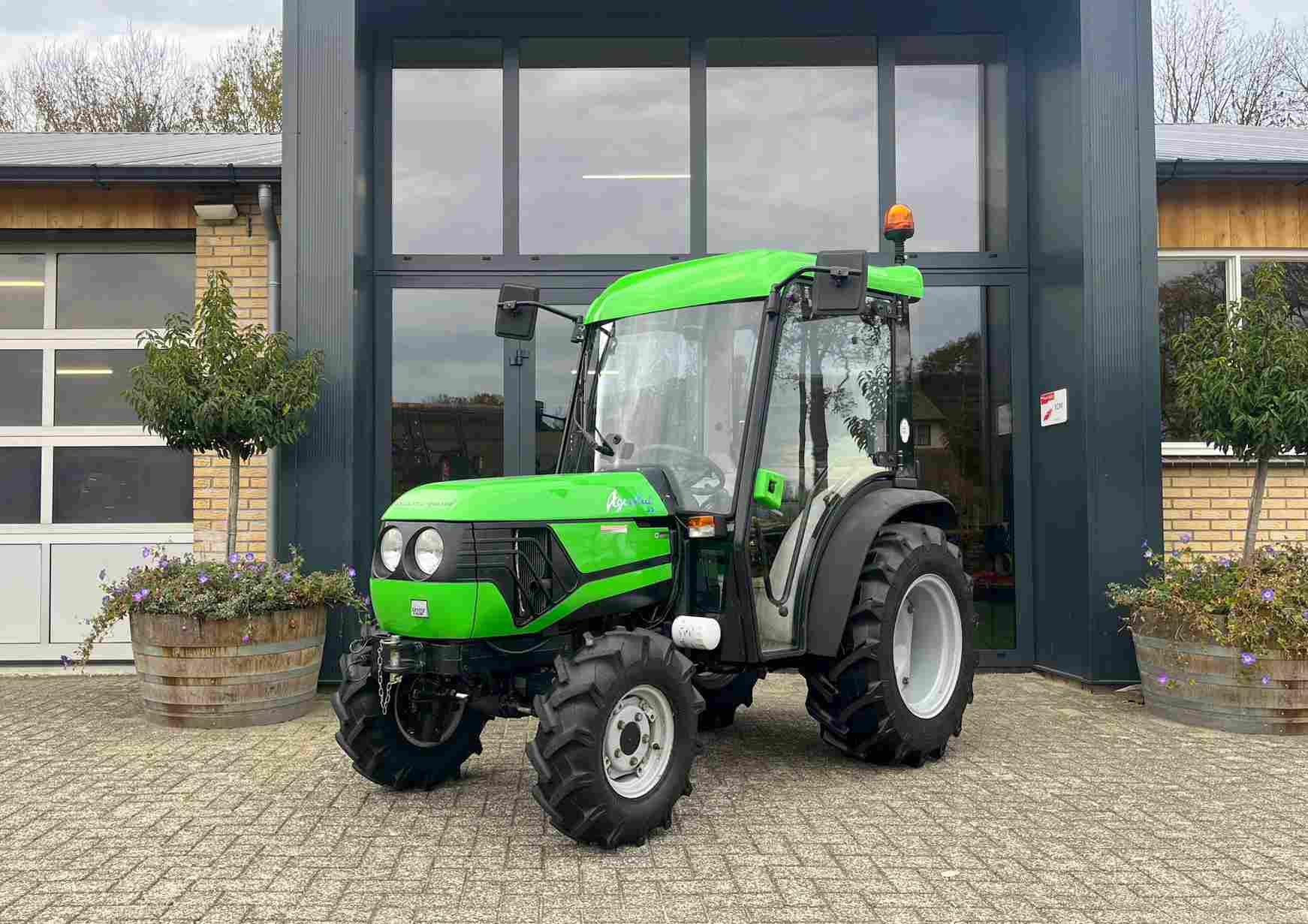

Deutz-Fahr Agrokid 35

Name: Deutz-Fahr Agrokid 35
Brand: Deutz-Fahr

Deutz-Fahr Agrokid 35 — Agrokid Series · 35 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrokid 35 is a compact tractor with a rated output of 35 horsepower. It was manufactured from 1997 to 2002, and features a 4-cylinder diesel liquid-cooled engine powering four-wheel drive via a hydrostatic transmission. The listed weight of the tractor is 1139 kilograms. It is suited for tasks involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Weight

1139 kg

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

35 hp

Recorded weight

1139 kg

Transmissions

12-speed shuttle

Production years

1997-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Compact Utility tractorReference

Four-wheel driveReference

Mechanical wet disc brakesReference

Two-post mid-mount folding ROPS. Cab optional.Reference

Engine

Mitsubishi 1.5L 4-cyl dieselReference

Fuel tank29.1 LReference

Engine26.0 kWReference

Mitsubishi K4FReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power26.0 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed shuttleReference

hydrostaticReference

TypeshuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Typeopen centerReference

Pump flow29.9 lpmReference

Rear TypeIReference

Rear lift1200 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase163 cmReference

Weight1139 kgReference

Front tire7.00-12Reference

Rear tire320/70R20Reference

Standard tires (ag)Front: 7.00-12. Rear: 320/70R20Reference

Length298 cmReference

Width123 cmReference

Max weight2399 kgReference

Ground clearance34 cmReference

Front tread97 to 119 cmReference

Rear tread82 to 103 cmReference

Steering wheel114 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Deutz-Fahr Agrokid 35 Height

ROPS199 cmReference

Cab210 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
