Tractor · 2003Unverified

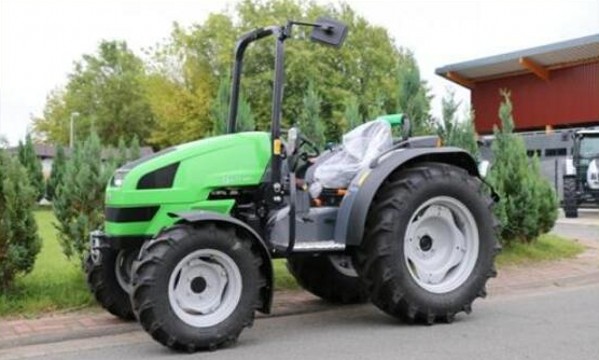

Deutz-Fahr Agrokid 40
Deutz-Fahr Agrokid 40 — Agrokid Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1297 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount folding ROPS. Cab optional.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank37.9 LReference
Engine30.0 kWReference
Mitsubishi S4LReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power30.0 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow29.9 lpmReference
Steering flow15.1 lpmReference
Rear TypeIReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase175 cmReference
Weight1297 kgReference
Front tire7.00-12Reference
Rear tire320/70R20Reference
Standard tires (ag)Front: 7.00-12. Rear: 320/70R20Reference
Length297 cmReference
Width121 cmReference
Height (steering wheel)129 cmReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
