Tractor · 2008Unverified

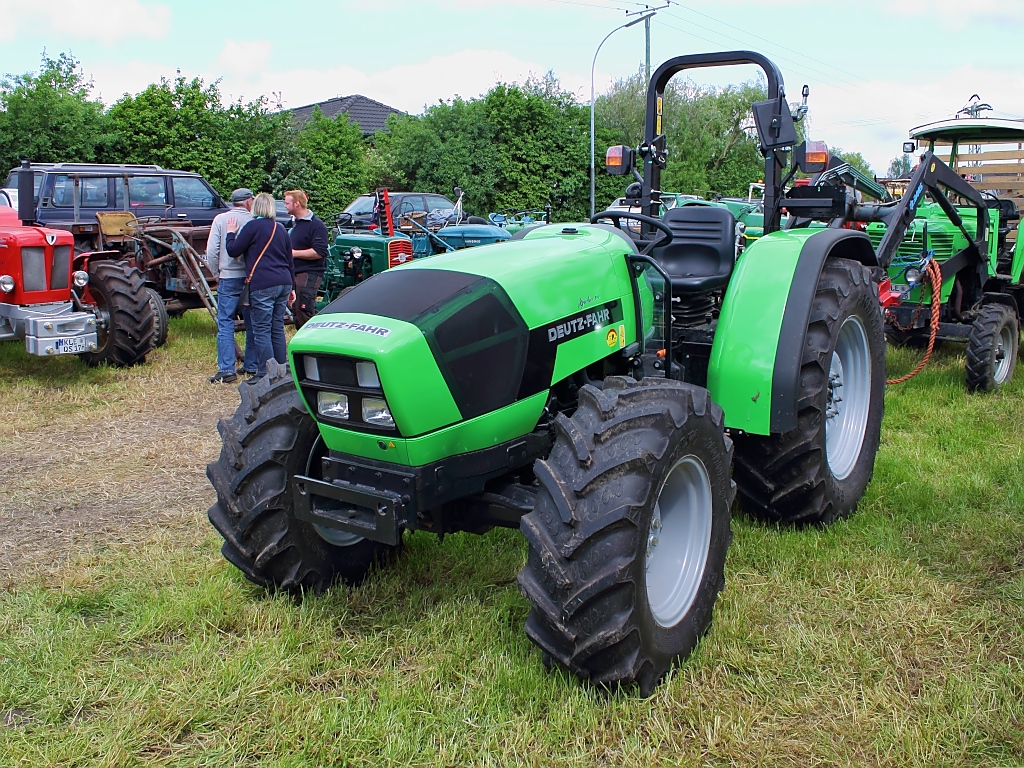

Deutz-Fahr Agrolux 310

Name: Deutz-Fahr Agrolux 310
Brand: Deutz-Fahr

Deutz-Fahr Agrolux 310 — Utility tractor · 62 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrolux 310 is a tractor with a power output of 62 hp, categorising it as a compact option within its class. The model was produced in 2008. It features a 3-cylinder turbocharged diesel liquid-cooled engine, which powers the mechanical front-wheel drive via a hydrostatic transmission. The tractor's listed weight is 2380 kg and is designed for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

62 hp

Weight

2380 kg

Catalogue coverage

Variants represented

Richest spec table

66 rows

Recorded power

62 hp

Recorded weight

2380 kg

Transmissions

15-speed partially synchronized

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Built in TurkeyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockmechanical front and rearReference

Steeringhydrostatic powerReference

Hydraulic brakesReference

Two-post foldable ROPS. Cab available.Reference

Variants

Agrolux 658/12 speedReference

Agrolux 31015-speed shuttleReference

Engine

SAME 3.0L 3-cyl dieselReference

Fuel tank70.0 LReference

Engine (gross)46.2 kWReference

SAME 1000.3Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Bore/Stroke105 x 116 mmReference

EmissionsTier IIIReference

Rated Power (gross)46.2 kWReference

Air cleanerdry with safety cartridgeReference

Rated RPM2200Reference

Idle RPM750-2350Reference

Torque240.0 NmReference

Torque RPM1600Reference

Oil capacity5.8 LReference

Transmission

15-speed partially synchronizedReference

Typepartially synchronizedReference

Gears15 forward and reverseReference

Clutchsingle dry discReference

Fives gears (1-5) in three ranges with reverser. Gear shifts are synchronized.Reference

PTO & Hydraulics

Typeopen centerReference

Valves2 to 4Reference

Pump flow33.0 lpmReference

Steering flow17.0 lpmReference

Rear TypeIIReference

Rear lift (at ends)3000 kgReference

Rear PTOindependentReference

Clutchdry mechanicalReference

Rear PTO Type540/540E (1.375)Reference

Dimensions

Wheelbase203 cmReference

Wheelbase197 cmReference

Weight2380 kgReference

Front tire7.50R16Reference

Rear tire16.9R28 (2WD)Reference

Standard tires (ag)Front: 7.50R16. Rear: 16.9R28 (2WD)Reference

Standard tires (ag)Front: 12.4R20. Rear: 16.9R28 (4WD)Reference

Optional tires (ag)Front: 6.00R16. Rear: 13.6R28 (2WD)Reference

Optional tires (ag)Front: 7.50R16. Rear: 14.9R28 (2WD)Reference

Optional tires (ag)Front: 9.50R20. Rear: 13.6R28 (4WD)Reference

Optional tires (ag)Front: 11.2R20. Rear: 14.9R28 (4WD)Reference

Length331 cmReference

Width226 cmReference

Height (ROPS)229 cmReference

Max weight4799 kgReference

Ground clearance40 cmReference

Front tread173 cmReference

Front tread175 cmReference

Rear tread183 cmReference

Electrical

Charging systemalternatorReference

Charging amps65Reference

Charging volts12Reference

Battery volts12Reference

Battery AH100Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
