Tractor · 2008Unverified

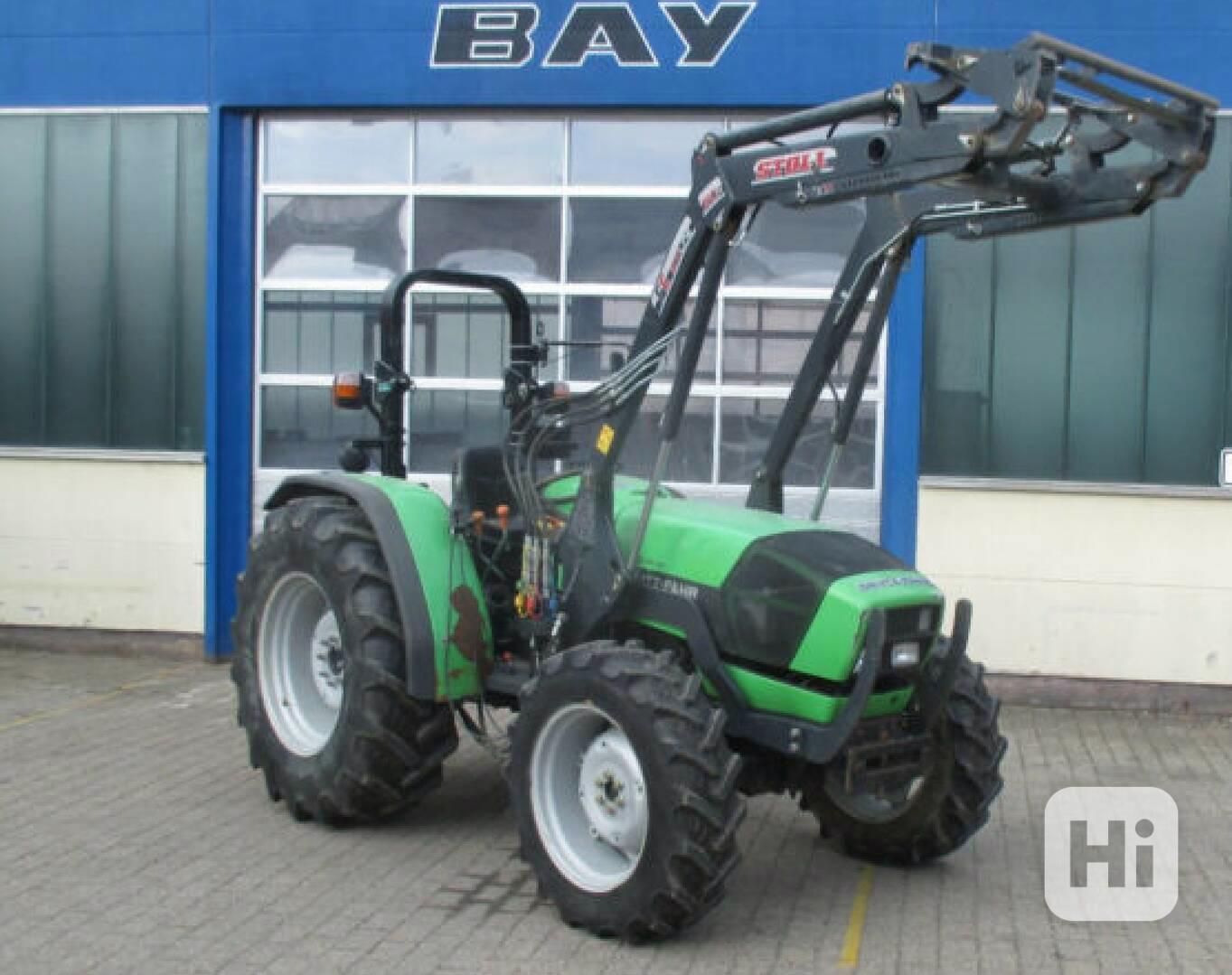

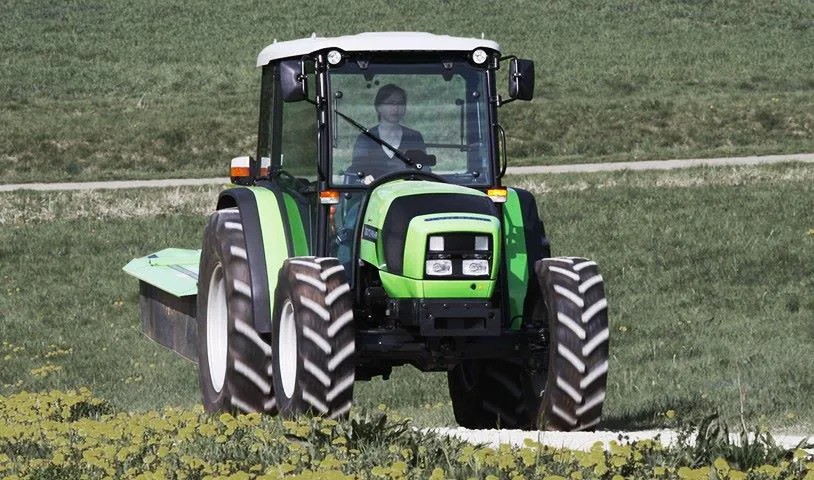

Deutz-Fahr Agrolux 320
Deutz-Fahr Agrolux 320 — Utility tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
2380 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Built in TurkeyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockmechanical front and rearReference
Steeringhydrostatic powerReference
Hydraulic brakesReference
Two-post foldable ROPS. Cab available.Reference
Variants
Agrolux 758/12 speedReference
Agrolux 32015-speed shuttleReference
Engine
SAME 3.0L 3-cyl dieselReference
Fuel tank70.0 LReference
Engine (gross)53.7 kWReference
SAME 1000.3Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke105 x 116 mmReference
EmissionsTier IIIReference
Rated Power (gross)53.7 kWReference
Air cleanerdry with safety cartridgeReference
Rated RPM2200Reference
Idle RPM750-2350Reference
Torque265.1 NmReference
Torque RPM1600Reference
Oil capacity5.8 LReference
Transmission
15-speed partially synchronizedReference
Typepartially synchronizedReference
Gears15 forward and reverseReference
Clutchsingle dry discReference
Fives gears (1-5) in three ranges with reverser. Gear shifts are synchronized.Reference
PTO & Hydraulics
Typeopen centerReference
Valves2 to 4Reference
Pump flow33.0 lpmReference
Steering flow17.0 lpmReference
Rear TypeIIReference
Rear lift (at ends)3000 kgReference
Rear PTOindependentReference
Clutchdry mechanicalReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase203 cmReference
Wheelbase197 cmReference
Weight2380 kgReference
Front tire7.50R16Reference
Rear tire16.9R28 (2WD)Reference
Standard tires (ag)Front: 7.50R16. Rear: 16.9R28 (2WD)Reference
Standard tires (ag)Front: 12.4R20. Rear: 16.9R28 (4WD)Reference
Optional tires (ag)Front: 7.50R16. Rear: 14.9R28 (2WD)Reference
Optional tires (ag)Front: 6.50R20. Rear: 16.9R30 (2WD)Reference
Optional tires (ag)Front: 11.2R20. Rear: 14.9R28 (4WD)Reference
Optional tires (ag)Front: 11.2R24. Rear: 16.9R30 (4WD)Reference
Optional tires (ag)Front: 11.2R24. Rear: 16.9R28 (4WD)Reference
Length331 cmReference
Width228 cmReference
Height (ROPS)243 cmReference
Max weight4799 kgReference
Ground clearance40 cmReference
Front tread173 cmReference
Front tread175 cmReference
Rear tread183 cmReference
Electrical
Charging systemalternatorReference
Charging amps65Reference
Charging volts12Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
