Tractor · 2008Unverified

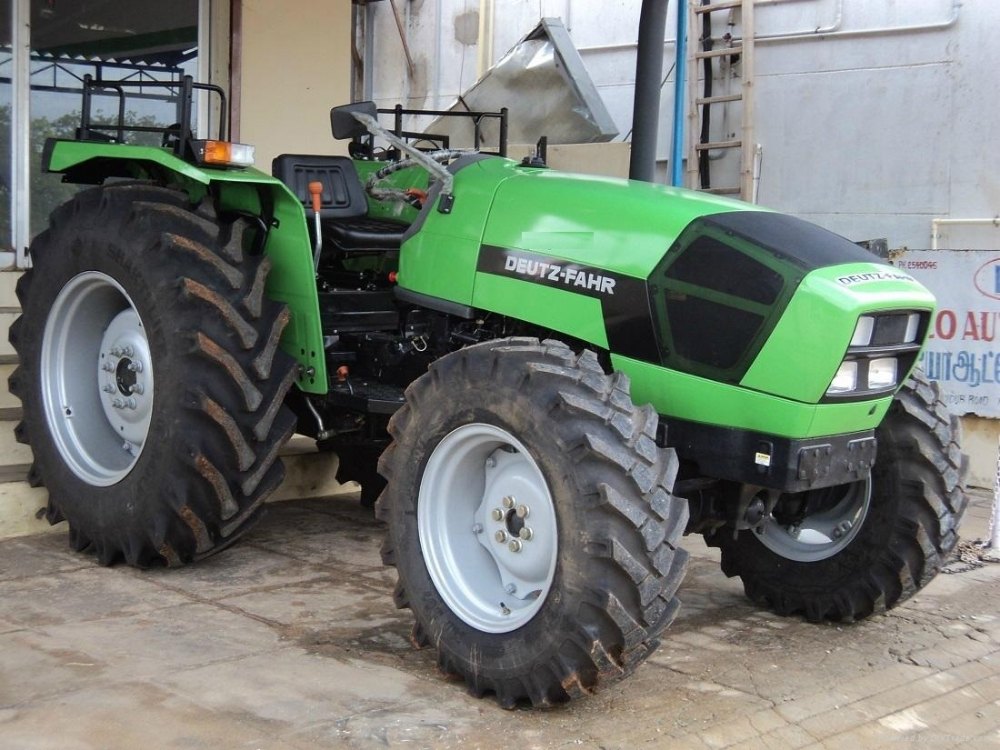

Deutz-Fahr Agrolux 75

Name: Deutz-Fahr Agrolux 75
Brand: Deutz-Fahr

Deutz-Fahr Agrolux 75 — Utility tractor · 72 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrolux 75 is a tractor with a rated power output of 72 hp, falling within the mid-range of its class. Manufactured in 2008, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, combined with mechanical front-wheel drive and a hydrostatic transmission. The tractor's operating weight is 2380 kg, and it is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

2380 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

72 hp

Recorded weight

2380 kg

Transmissions

8-speed partially synchronized

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Built in TurkeyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockmechanical front and rearReference

Steeringhydrostatic powerReference

Hydraulic brakesReference

Two-post foldable ROPS. Canopy available.Reference

Variants

Agrolux 758/12 speedReference

Agrolux 32015-speed shuttleReference

Rekord 75similar Lamborghini modelReference

Agrolux 75similar Deutz-Fahr modelReference

Tiger 75similar SAME modelReference

Engine

SAME 3.0L 3-cyl dieselReference

Fuel tank70.0 LReference

Engine (gross)53.7 kWReference

SAME 1000.3Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Bore/Stroke105 x 116 mmReference

EmissionsTier IIIReference

Rated Power (gross)53.7 kWReference

Air cleanerdry with safety cartridgeReference

Rated RPM2200Reference

Idle RPM750-2350Reference

Torque265.1 NmReference

Torque RPM1600Reference

Oil capacity5.8 LReference

Transmission

8-speed partially synchronizedReference

12-speed partially synchronizedReference

Typepartially synchronizedReference

Gears8 forward and 2 reverseReference

Clutchsingle dry discReference

Four gears (1-4) plus reverse (R) in two ranges. Gear shifts in range are synchronized.Reference

Gears12 forward and 3 reverseReference

Four gears (1-4) plus reverse (R) in three ranges (L/M/V). Gear shifts in range are synchronized.Reference

PTO & Hydraulics

Typeopen centerReference

Valves2 to 4Reference

Pump flow33.0 lpmReference

Steering flow17.0 lpmReference

Rear TypeIIReference

Rear lift (at ends)3000 kgReference

Rear PTOindependentReference

Clutchdry mechanicalReference

Rear PTO Type540/540E (1.375)Reference

Dimensions

Wheelbase203 cmReference

Wheelbase197 cmReference

Weight2380 kgReference

Front tire7.50R16Reference

Rear tire16.9R28 (2WD)Reference

Standard tires (ag)Front: 7.50R16. Rear: 16.9R28 (2WD)Reference

Standard tires (ag)Front: 12.4R20. Rear: 16.9R28 (4WD)Reference

Optional tires (ag)Front: 7.50R16. Rear: 14.9R28 (2WD)Reference

Optional tires (ag)Front: 6.50R20. Rear: 16.9R30 (2WD)Reference

Optional tires (ag)Front: 11.2R20. Rear: 14.9R28 (4WD)Reference

Optional tires (ag)Front: 11.2R24. Rear: 16.9R30 (4WD)Reference

Optional tires (ag)Front: 11.2R24. Rear: 16.9R28 (4WD)Reference

Length331 cmReference

Width198 cmReference

Height (ROPS)243 cmReference

Max weight4799 kgReference

Ground clearance40 cmReference

Front tread173 cmReference

Front tread175 cmReference

Rear tread183 cmReference

Electrical

Charging systemalternatorReference

Charging amps65Reference

Charging volts12Reference

Battery volts12Reference

Battery AH100Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
