Tractor · 2001Unverified

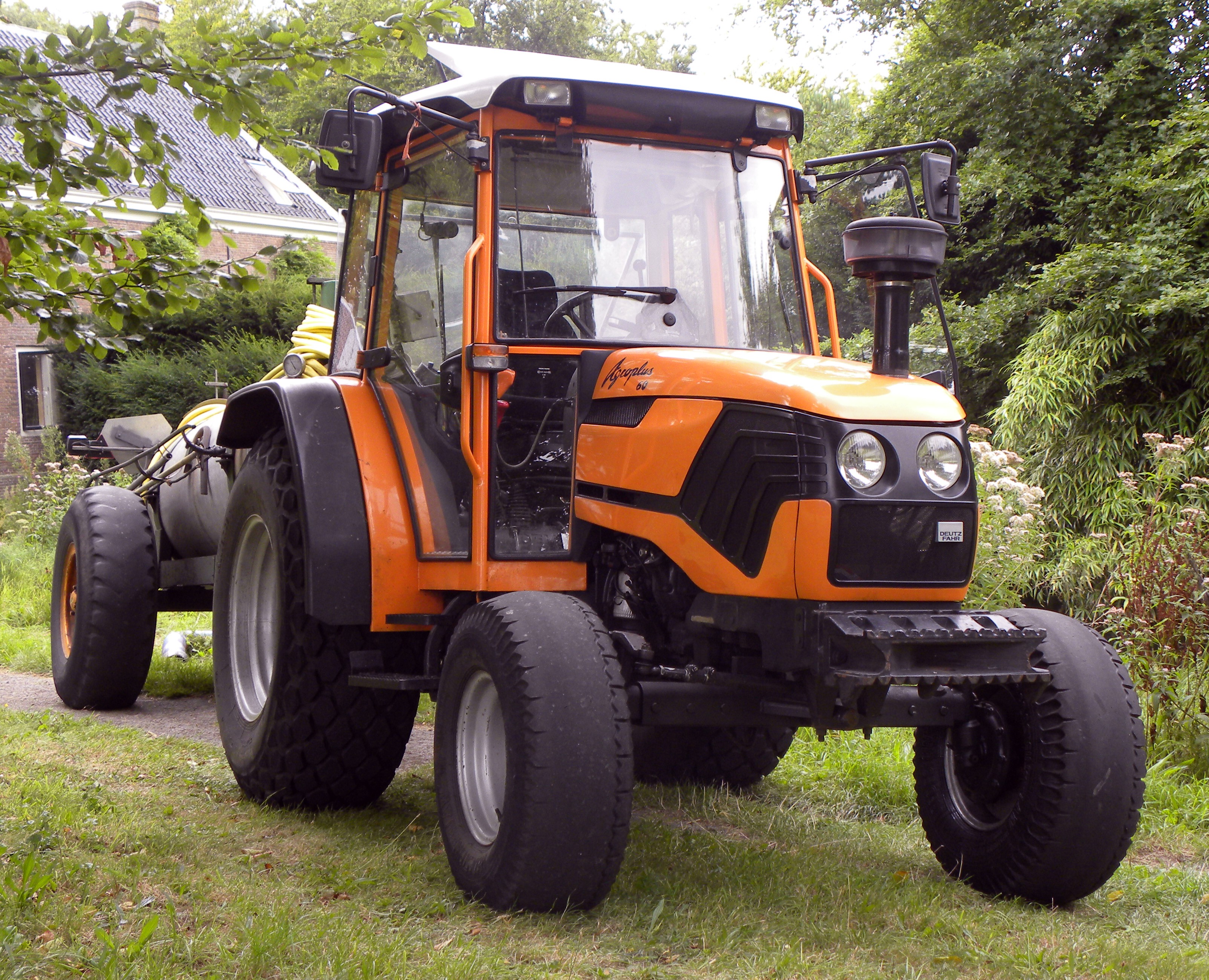

Deutz-Fahr Agroplus 60
Deutz-Fahr Agroplus 60 — Agroplus Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5622 to 6394 pounds
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS in select markets. Deluxe and low-profile cabs available with optional air-conditioning.Reference
Engine
Deutz 3.1L 3-cyl dieselReference
Fuel tank90.1 LReference
Engine44.7 kWReference
Deutz F3L913Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.1 LReference
Bore/Stroke100 x 123 mmReference
Power44.7 kWReference
Rated RPM2400Reference
Transmission
30-speedReference
45-speed three-speed power shiftReference
TransmissionSynchrosplitReference
Gears30 forward and 15 reverseReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves3Reference
Pump flow48.1 lpmReference
Rear TypeIIReference
Rear lift2899 kgReference
Front HitchIIReference
Front lift1749 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase211 cmReference
Weight5622 to 6394 poundsReference
Front tire7.50-16Reference
Rear tire12.4R20Reference
Ag front7.50-16Reference
Ag front12.4R20 (4WD)Reference
Ag rear12.4R20Reference
Ag rear14.9R30 (4WD)Reference
Length383 cmReference
Width197 cmReference
Height (cab)243 cmReference
2WD Weight2550 kgReference
4WD Weight2900 kgReference
Ground clearance35 cmReference
Speeds
Power shift high and low are 20% faster and slower.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
