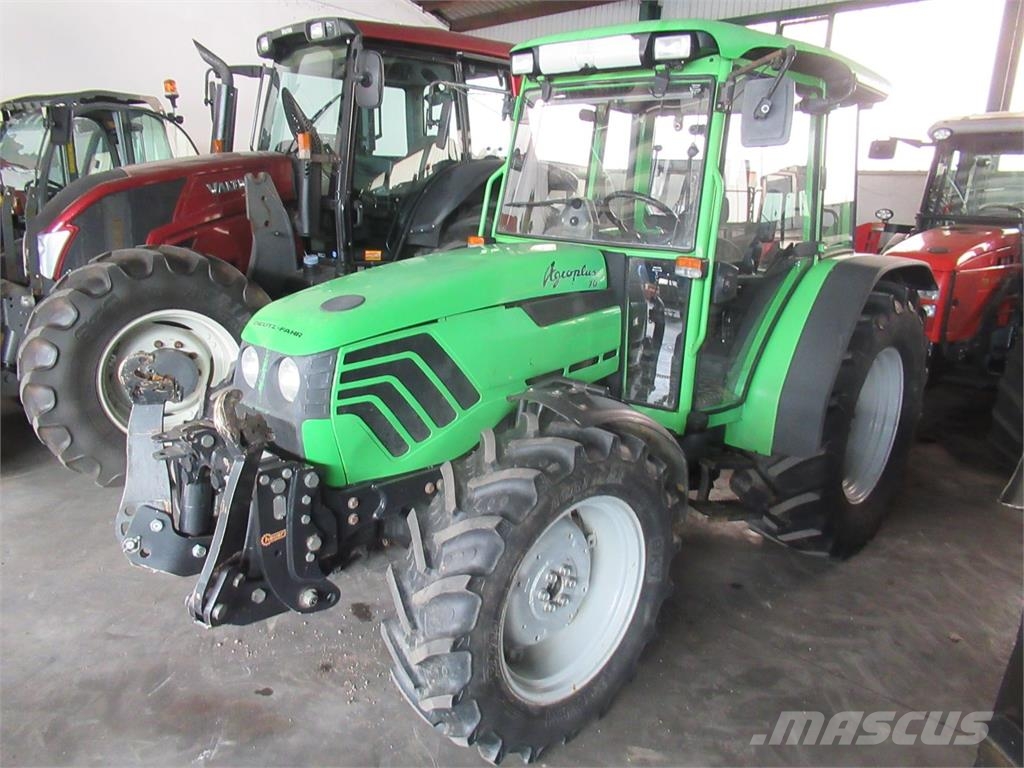

The Deutz-Fahr Agroplus 70 is a tractor with a power output of 70 hp, placing it in the middle of its class. It was produced from 2001 to 2004 and features a 4-cylinder diesel air-cooled engine, which powers a four-wheel drive system via a powershift transmission. The Agroplus 70 has a listed operating weight of 6063 to 6835 pounds and is suitable for applications covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
6063 to 6835 pounds
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
70 hp
Recorded weight
2750 kg
Transmissions
30-speed
Production years
2001-2004
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS in select markets. Deluxe and low-profile cabs available with optional air-conditioning.Reference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine52.2 kWReference
Deutz F4L913Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Power52.2 kWReference
Rated RPM2300Reference
Transmission
30-speedReference
45-speed three-speed power shiftReference
TransmissionSynchrosplitReference
Gears30 forward and 15 reverseReference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Valves3Reference
Pump flow48.1 lpmReference
Rear TypeIIReference
Rear lift2899 kgReference
Front HitchIIReference
Front lift1749 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase229 cmReference
Weight6063 to 6835 poundsReference
Front tire7.50-18Reference
Rear tire11.52R24Reference
Ag front7.50-18Reference
Ag front11.2R24 (4WD)Reference
Ag rear11.52R24Reference
Ag rear16.9R30 (4WD)Reference
Length397 cmReference
Height245 cmReference
2WD Weight2750 kgReference
4WD Weight3100 kgReference
Speeds
Power shift high and low are 20% faster and slower.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
