Tractor · 1998Unverified

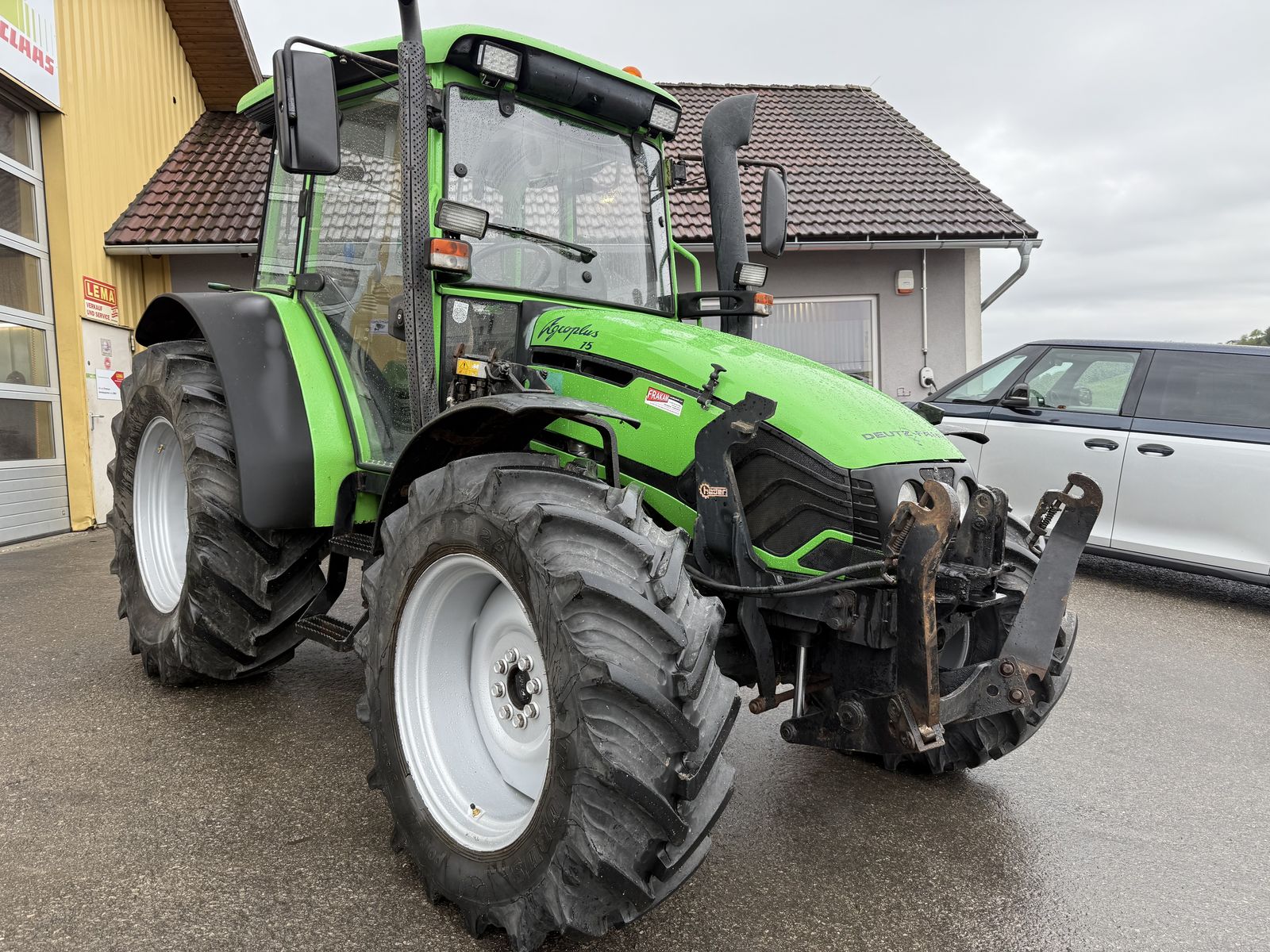

Deutz-Fahr Agroplus 75

Name: Deutz-Fahr Agroplus 75
Brand: Deutz-Fahr

Deutz-Fahr Agroplus 75 — Agroplus Series · 75 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agroplus 75 is a tractor with a rated power of 75 horsepower, positioned within a mid-range category. Produced from 1998 to 2004, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor has a listed operating weight of 3800 kilograms and is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

3800 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

75 hp

Recorded weight

3800 kg

Transmissions

30-speed

Production years

1998-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Wet disc brakesReference

Cab standard with available air-conditioning.Reference

Engine

Deutz 3.2L 4-cyl dieselReference

Fuel tank140.0 LReference

Engine55.9 kWReference

Deutz BF4M 1012EReference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.2 LReference

Bore/Stroke94 x 115 mmReference

Power55.9 kWReference

Rated RPM2300Reference

Torque295.6 NmReference

Torque RPM1380Reference

Oil capacity9.0 LReference

Transmission

30-speedReference

45-speed three-speed power shiftReference

TransmissionSynchrosplitReference

Gears30 forward and 15 reverseReference

Five gears in three ranges. Available mechanical or hydraulic shuttle. Transmission may be equipped as a creeper with 20 speeds forward and reverse.Reference

Typethree-speed power shiftReference

Gears45 forward and reverseReference

Five gears in three ranges with three-speed power shift. Available mechanical or hydraulic shuttle. Transmission may be equipped an additional creeper range offering 60 speeds forward and reverse.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure185.0 barReference

Pump flow56.0 lpmReference

Rear TypeIIReference

Controllower-link draft sensingReference

Rear lift4900 kgReference

Front HitchIIReference

Front lift3000 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Front PTOindependentReference

Clutchelectro-hydraulic wet discReference

Front PTO Type1000 (1.375)Reference

Engine RPM1000@2100Reference

Dimensions

Wheelbase233 cmReference

Weight3800 kgReference

Front tire13.6R24Reference

Rear tire16.9R34Reference

Ag front13.6R24Reference

Ag rear16.9R34Reference

Length371 cmReference

Width205 cmReference

Height (cab)262 cmReference

Front axle1770 mmReference

Flange rear axle1739 mmReference

Shipping3800 kgReference

Max front axle3000 kgReference

Max rear axle4500 kgReference

Capacities

Max capacity6200 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
