Tractor · 1997Unverified

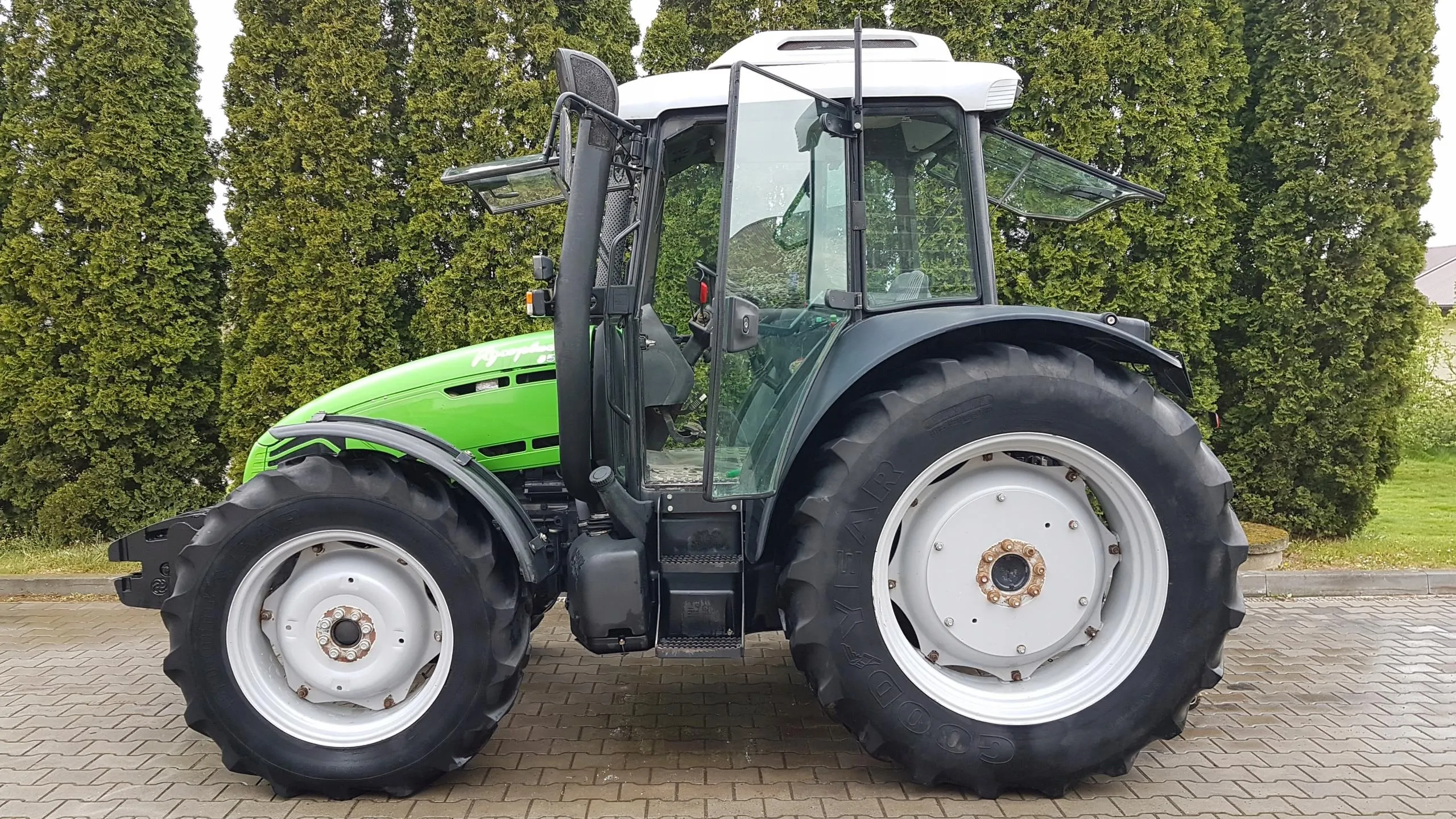

Deutz-Fahr Agroplus 85
Deutz-Fahr Agroplus 85 — Agroplus Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
3800 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with available air-conditioning.Reference
Engine
Deutz 3.2L 4-cyl dieselReference
Fuel tank140.0 LReference
Engine62.6 kWReference
Deutz BF4M 1012ECReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.2 LReference
Bore/Stroke94 x 115 mmReference
Power62.6 kWReference
Rated RPM2300Reference
Torque339.0 NmReference
Torque RPM1380Reference
Oil capacity9.0 LReference
Transmission
30-speedReference
45-speed three-speed power shiftReference
TransmissionSynchrosplitReference
Gears30 forward and 15 reverseReference
Five gears in three ranges. Available mechanical or hydraulic shuttle. Transmission may be equipped as a creeper with 20 speeds forward and reverse.Reference
Typethree-speed power shiftReference
Gears45 forward and reverseReference
Five gears in three ranges with three-speed power shift. Available mechanical or hydraulic shuttle. Transmission may be equipped an additional creeper range offering 60 speeds forward and reverse.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure185.0 barReference
Pump flow56.0 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift4900 kgReference
Front HitchIIReference
Front lift3000 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Front PTOindependentReference
Clutchelectro-hydraulic wet discReference
Front PTO Type1000 (1.375)Reference
Engine RPM1000@2100Reference
Dimensions
Wheelbase233 cmReference
Weight3800 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length371 cmReference
Width205 cmReference
Height (cab)262 cmReference
Front axle1770 mmReference
Flange rear axle1739 mmReference
Shipping3800 kgReference
Max front axle3000 kgReference
Max rear axle4500 kgReference
Capacities
Max capacity6200 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
