Tractor · 1993Unverified

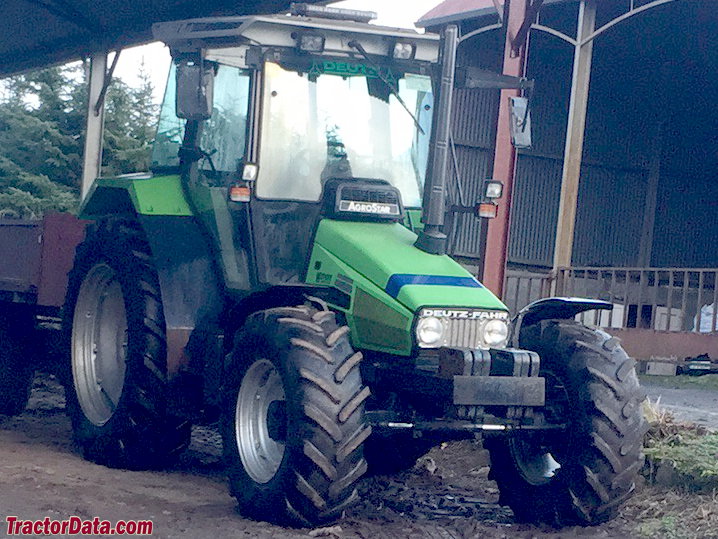

Deutz-Fahr AgroStar 4.78
Deutz-Fahr AgroStar 4.78 — AgroStar Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4200 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Cab standard.Reference
Engine
Deutz 4.1L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine74.6 kWReference
Deutz BF4L 913Reference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke100 x 123 mmReference
Power74.6 kWReference
Rated RPM2300Reference
Transmission
48-speedReference
Gears48 forward and 12 reverseReference
Clutchdry discReference
Six gears in four ranges with two-speed high-low shift.Reference
PTO & Hydraulics
Pump flow46.9 lpmReference
Rear TypeIIReference
Rear lift5100 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase245 cmReference
Weight4200 kgReference
Front tire14.9R24Reference
Rear tire16.9R38Reference
Ag front14.9R24Reference
Ag rear16.9R38Reference
Length448 cmReference
Height278 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
