Tractor · 1997Unverified

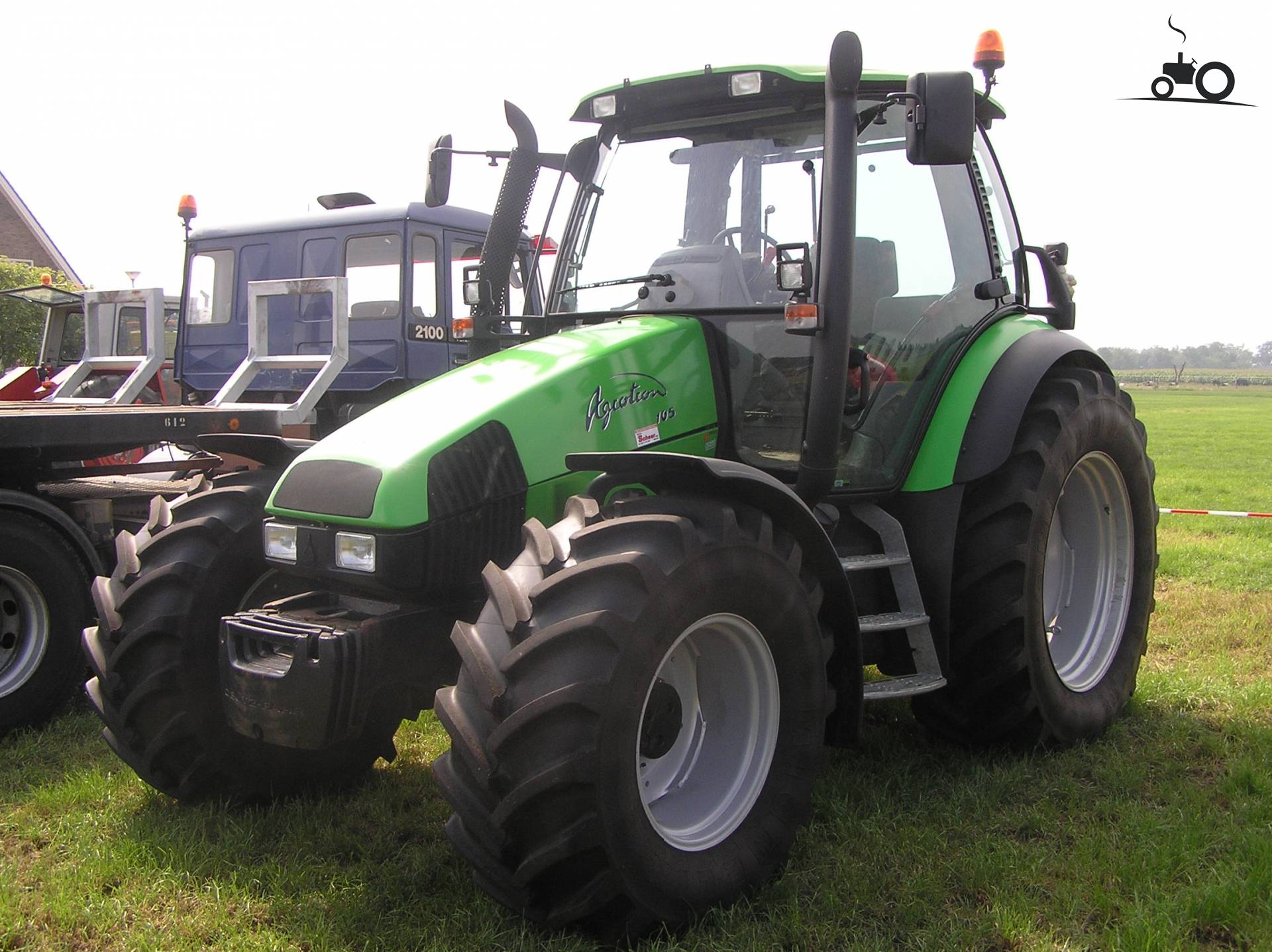

Deutz-Fahr Agrotron 105
Deutz-Fahr Agrotron 105 — Agrotron Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4500 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Deutz 4.8L 6-cyl dieselReference
Fuel tank190.0 LReference
Engine74.6 kWReference
Deutz BF6M1012EReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke94 x 115 mmReference
Power74.6 kWReference
Rated RPM2300Reference
Transmission
24-speed three-speed power shiftReference
36-speed creeperReference
Typethree-speed power shiftReference
Gears24 forward and 8 reverseReference
Four synchronized gears in three power shift ranges with high and low transmission ranges.Reference
TypecreeperReference
Gears36 forward and 12 reverseReference
PTO & Hydraulics
Pump flow65.9 lpmReference
Rear lift6221 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase264 cmReference
Weight4500 kgReference
Front tire380/70R28Reference
Rear tire480/70R38Reference
Ag front380/70R28Reference
Ag rear480/70R38Reference
Length437 cmReference
Height282 cmReference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
