Tractor · 2001Unverified

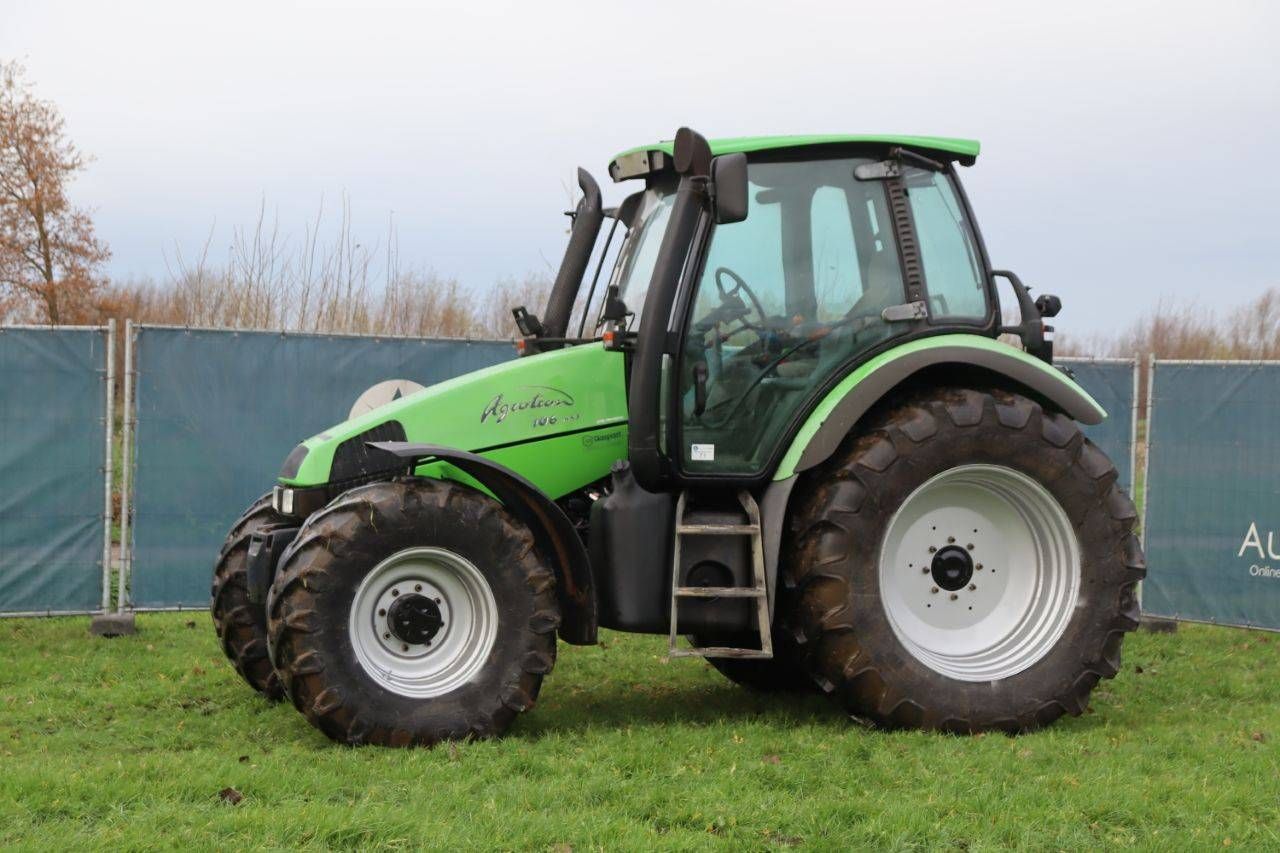

Deutz-Fahr Agrotron 106 MK3
Deutz-Fahr Agrotron 106 MK3 — Agrotron Series · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
5010 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Deutz 4.8L 6-cyl dieselReference
Fuel tank269.9 LReference
Engine76.1 kWReference
DeutzReference
turbo dieselReference
6-cylinderReference
Displacement4.8 LReference
Bore/Stroke94 x 115 mmReference
Power76.1 kWReference
Rated RPM2300Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pump flow82.9 lpmReference
Rear lift6221 kgReference
Rear PTO Type540, 750, 1000, 1400Reference
Dimensions
Wheelbase264 cmReference
Weight5010 kgReference
Front tire16.9R24Reference
Rear tire18.4R38Reference
Ag front16.9R24Reference
Ag rear18.4R38Reference
Length459 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
