Tractor · 1998Unverified

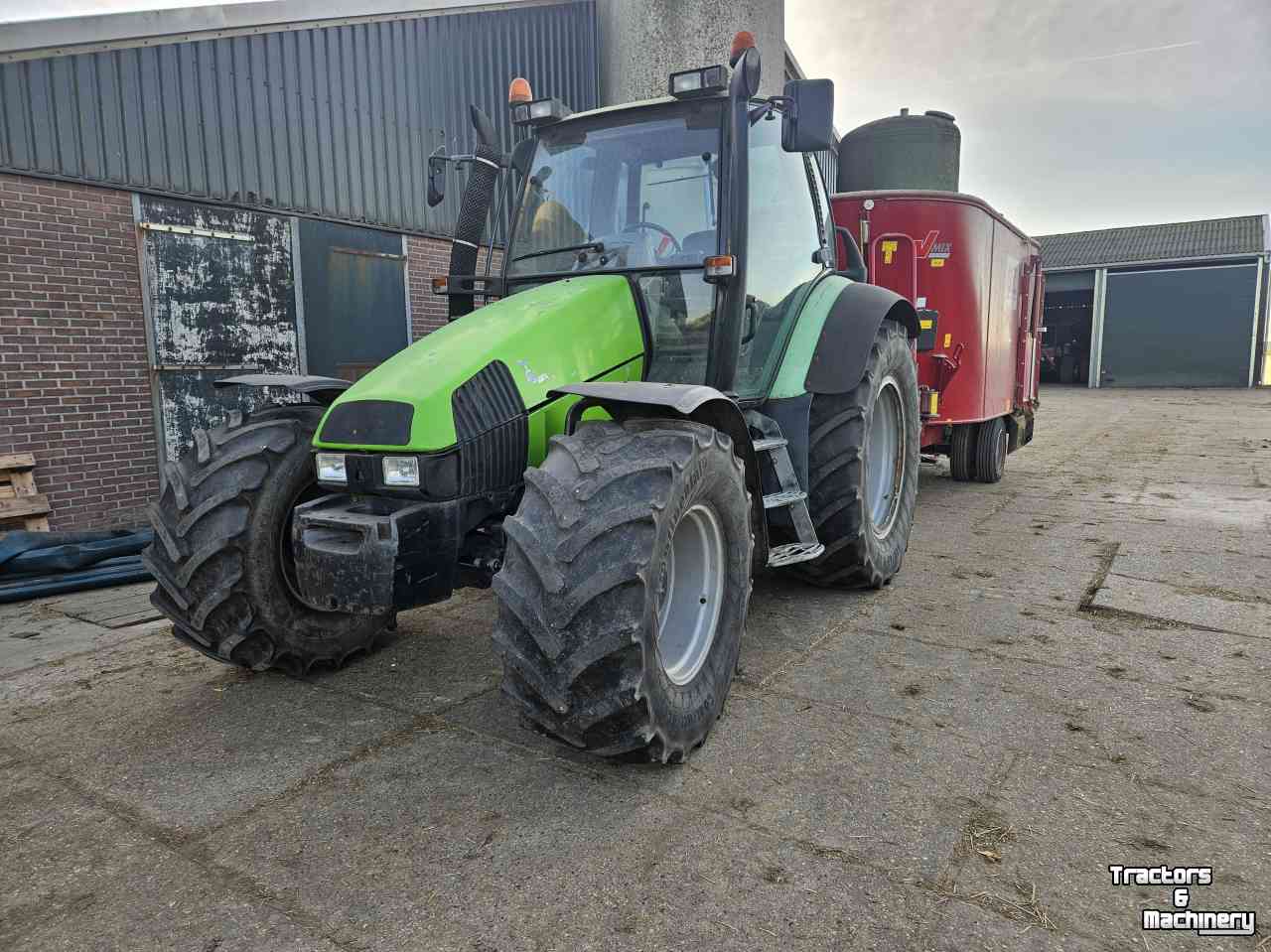

Deutz-Fahr Agrotron 115
Deutz-Fahr Agrotron 115 — Agrotron Series · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Weight
5010 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
Deutz 4.8L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine86.5 kWReference
Deutz BF6L1012ECReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke94 x 115 mmReference
Power86.5 kWReference
Rated RPM2300Reference
Transmission
24-speed four-speed power shiftReference
40-speed creeperReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Six synchronized gears in four power shift ranges.Reference
TypecreeperReference
Gears40 forward and reverseReference
PTO & Hydraulics
Pump flow82.9 lpmReference
Rear TypeIII/IIReference
Rear lift9240 kgReference
Front HitchIIReference
Front lift3000 kgReference
Rear PTO Type540/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase264 cmReference
Weight5010 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length451 cmReference
Height287 cmReference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
