Tractor · 2001Unverified

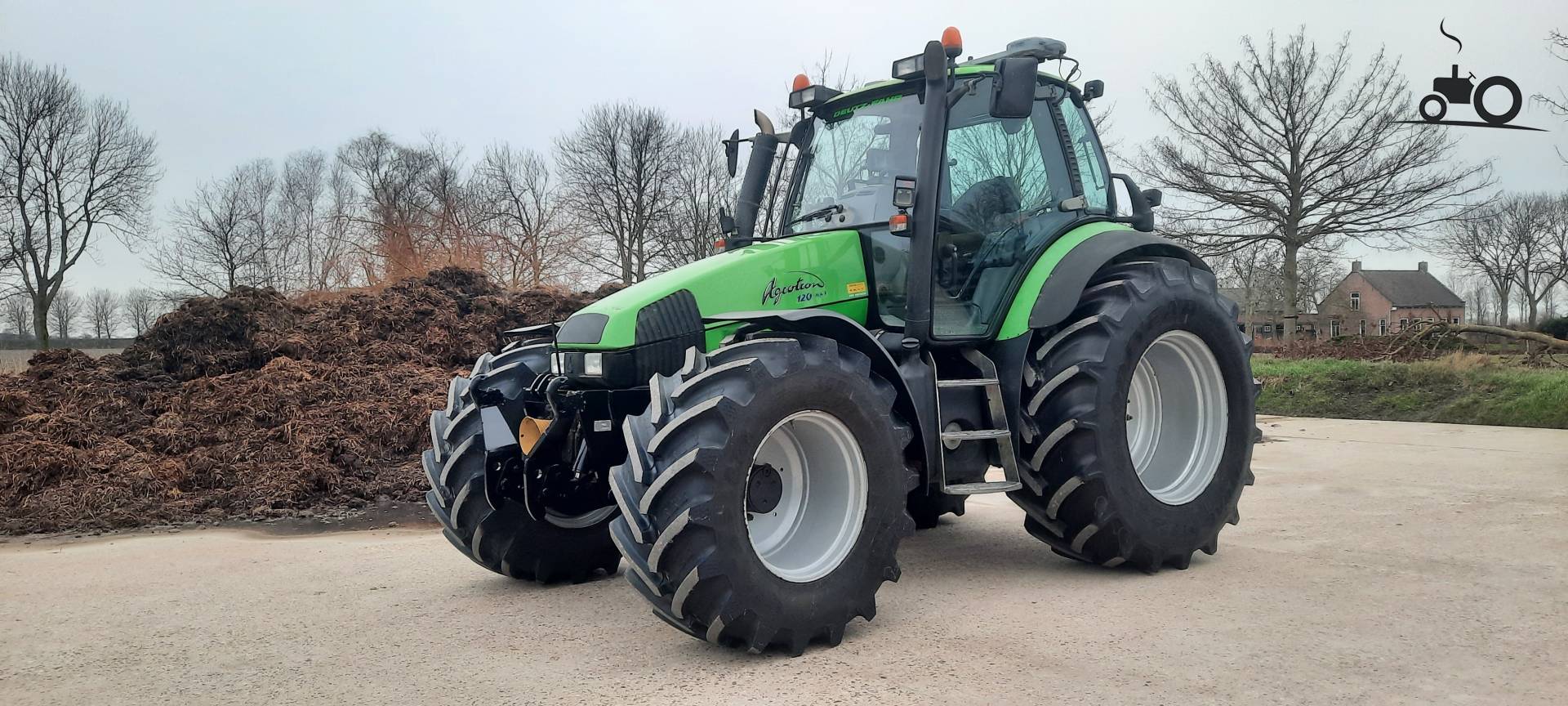

Deutz-Fahr Agrotron 120 MK3
Deutz-Fahr Agrotron 120 MK3 — Agrotron Series · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
5710 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank269.9 LReference
Engine93.2 kWReference
DeutzReference
turbo dieselReference
6-cylinderReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power93.2 kWReference
Rated RPM2300Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
Pump flow82.9 lpmReference
Rear lift6221 kgReference
Rear PTO Type540, 750, 1000, 1400Reference
Dimensions
Wheelbase276 cmReference
Weight5710 kgReference
Front tire480/70R28Reference
Rear tire20.8R38Reference
Ag front480/70R28Reference
Ag rear20.8R38Reference
Length475 cmReference
Height286 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
