Tractor · 2005Unverified

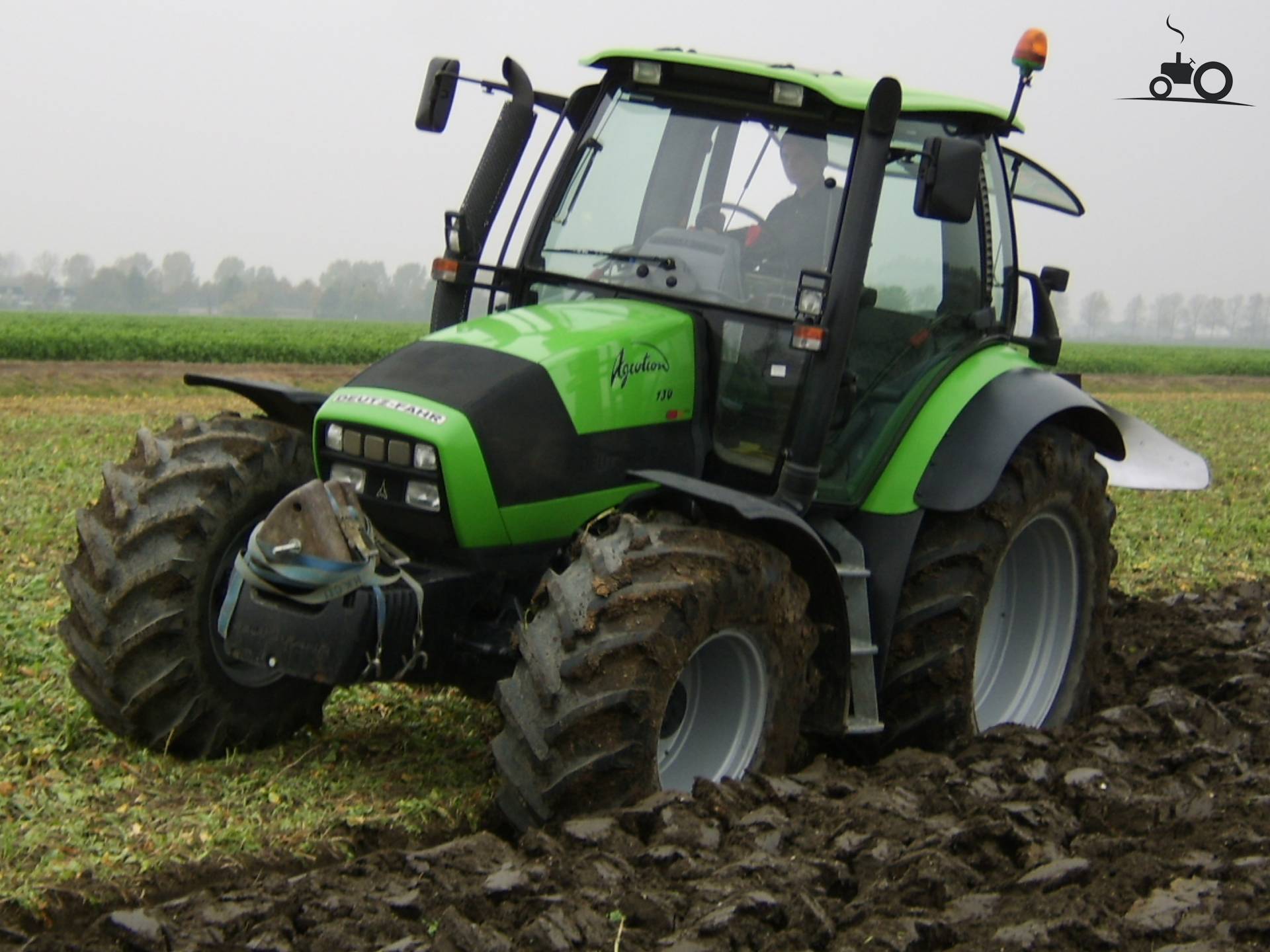

Deutz-Fahr Agrotron 130

Name: Deutz-Fahr Agrotron 130
Brand: Deutz-Fahr

Deutz-Fahr Agrotron 130 — Agrotron Series · 140 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron 130 is a tractor with a rated power output of 140 hp, placing it at the more powerful end of its class. This model was manufactured from 2005 to 2007. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The tractor has an operating weight of 5459 kg, making it suitable for agricultural operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Weight

5459 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

140 hp

Recorded weight

5459 kg

Transmissions

24-speed four-speed power shift

Production years

2005-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank269.9 LReference

Engine (gross)104.0 kWReference

Deutz BF6M2012CReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (gross)104.0 kWReference

Rated RPM2300Reference

Torque512.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity14.0 LReference

Transmission

24-speed four-speed power shiftReference

40-speed creeperReference

Typefour-speed power shiftReference

Gears24 forward and reverseReference

TypecreeperReference

Gears40 forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

Typeclosed centerReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow82.9 lpmReference

Pump flow120.0 lpmReference

Rear TypeIII/IIReference

Rear lift6200 kgReference

Rear lift9200 kgReference

Front HitchIIReference

Front lift3999 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2200Reference

Engine RPM540E@1600Reference

Engine RPM1000@2200Reference

Engine RPM1000E@1600Reference

Front PTOindependentReference

Clutch1000:2130Reference

Front PTO Type1000Reference

Dimensions

Wheelbase264 cmReference

Weight5459 kgReference

Front tire16.9R24Reference

Rear tire18.4R38Reference

Standard tires (ag)Front: 16.9R24. Rear: 18.4R38Reference

Length458 cmReference

Height (cab)292 cmReference

Max weight8500 kgReference

Front tread180 cmReference

Rear tread180 cmReference

Electrical

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Battery AH143Reference

Battery AH170Reference

Speeds

With 18.4R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
