Tractor · 1997Unverified

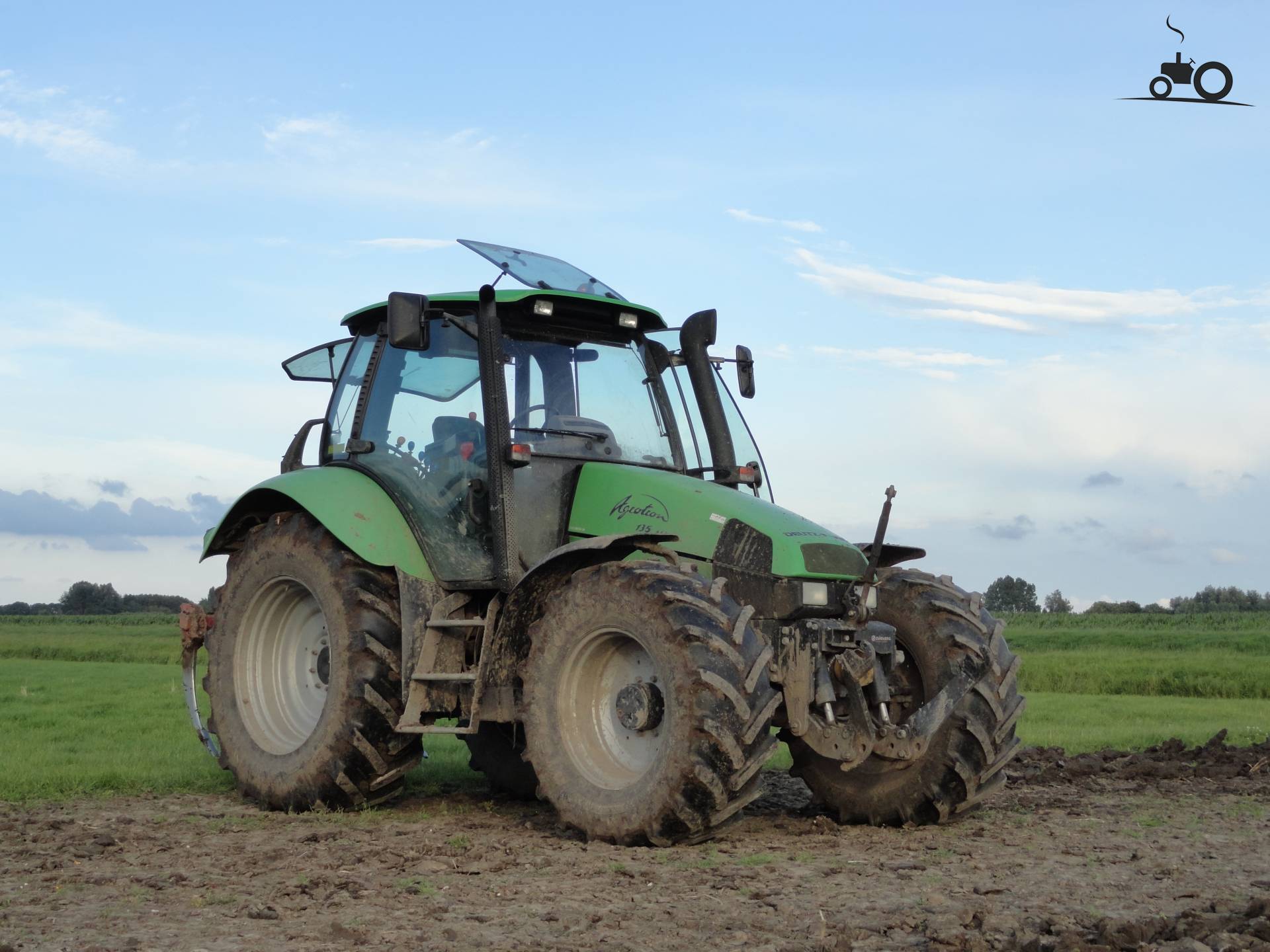

Deutz-Fahr Agrotron 135
Deutz-Fahr Agrotron 135 — Agrotron Series · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5360 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank260.0 LReference
Engine100.7 kWReference
Deutz BF6L1013EReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power100.7 kWReference
Rated RPM2300Reference
Transmission
24-speed four-speed power shiftReference
40-speed creeperReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Six synchronized gears in four power shift ranges.Reference
TypecreeperReference
Gears40 forward and reverseReference
PTO & Hydraulics
Pump flow82.9 lpmReference
Rear TypeIII/IIReference
Rear lift9240 kgReference
Front HitchIIReference
Front lift3000 kgReference
Rear PTO Type540/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase277 cmReference
Weight5360 kgReference
Front tire16.8R28Reference
Rear tire20.8R38Reference
Ag front16.8R28Reference
Ag rear20.8R38Reference
Length267 cmReference
Height (cab)295 cmReference
Ground clearance56 cmReference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
