Tractor · 2005Unverified

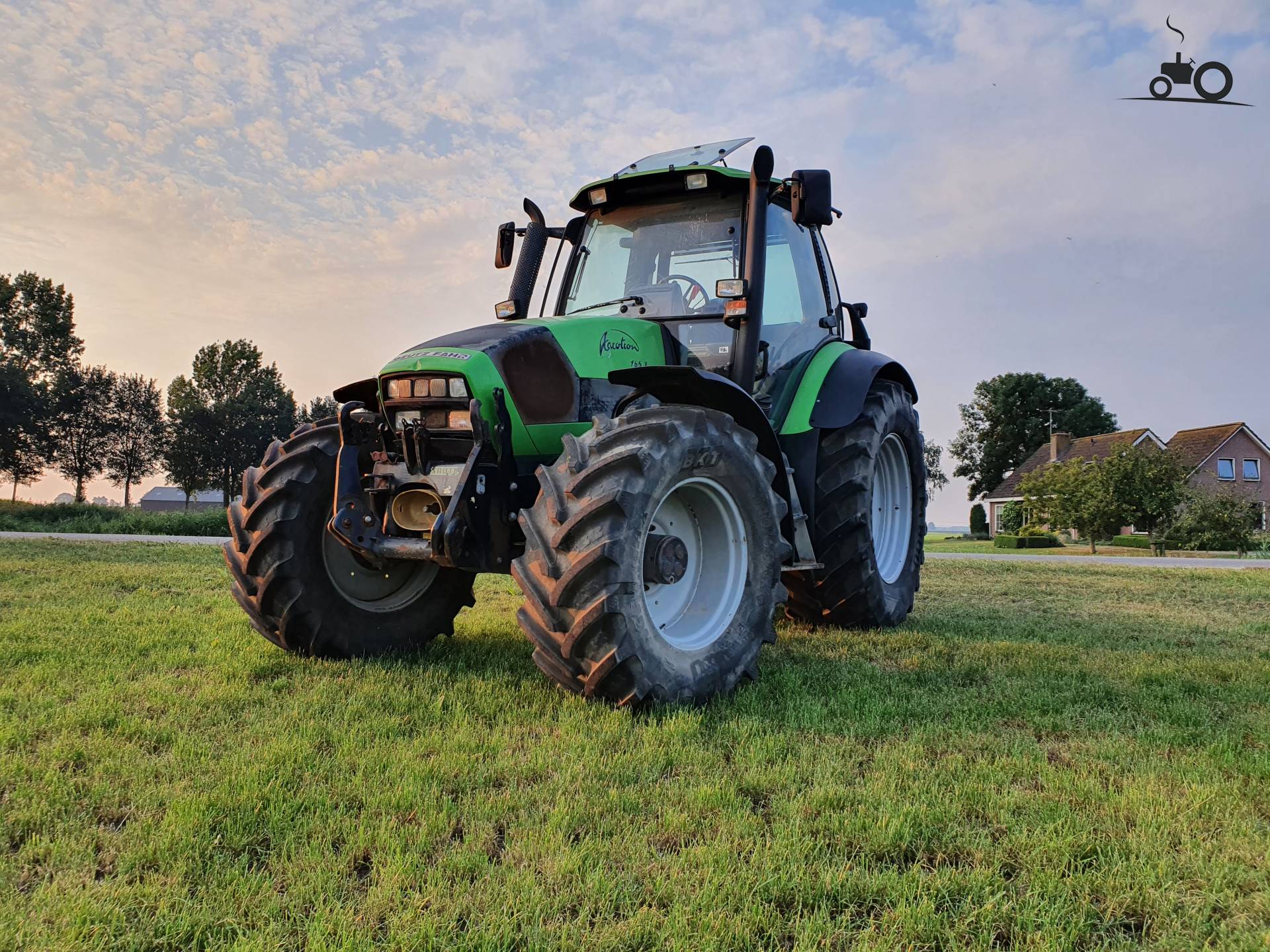

Deutz-Fahr Agrotron 165.7

Name: Deutz-Fahr Agrotron 165.7
Brand: Deutz-Fahr

Deutz-Fahr Agrotron 165.7 — Agrotron Series · 177 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron 165.7 is a tractor with a rated power of 177 hp, categorising it among the higher-powered machines in its class. Manufactured between 2005 and 2007, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, transmitting power to all four wheels via a powershift transmission. The listed weight of the tractor is 5970 kg, and it is suitable for tasks involving approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

177 hp

Weight

5970 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

177 hp

Recorded weight

5970 kg

Transmissions

24-speed four-speed power shift

Production years

2005-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 7.1L 6-cyl dieselReference

Fuel tank305.1 LReference

Engine (gross)132.0 kWReference

Deutz BF6M1013ECReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Rated Power (gross)132.0 kWReference

Rated RPM2350Reference

Torque660.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity21.0 LReference

Transmission

24-speed four-speed power shiftReference

40-speed creeperReference

Typefour-speed power shiftReference

Gears24 forward and reverseReference

TypecreeperReference

Gears40 forward and reverseReference

PTO & Hydraulics

Typeopen centerReference

Typeclosed centerReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow82.9 lpmReference

Pump flow120.0 lpmReference

Rear TypeIII/IIReference

Rear lift9200 kgReference

Front HitchIIReference

Front lift3999 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2200Reference

Engine RPM540E@1600Reference

Engine RPM1000@2200Reference

Engine RPM1000E@1600Reference

Front PTOindependentReference

Clutch1000:2130Reference

Front PTO Type1000Reference

Dimensions

Wheelbase276 cmReference

Weight5970 kgReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Length475 cmReference

Height (cab)299 cmReference

Max weight10000 kgReference

Front tread189 cmReference

Rear tread190 cmReference

Electrical

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Battery AH143Reference

Battery AH170Reference

Speeds

With 20.8R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
