Tractor · 2001Unverified

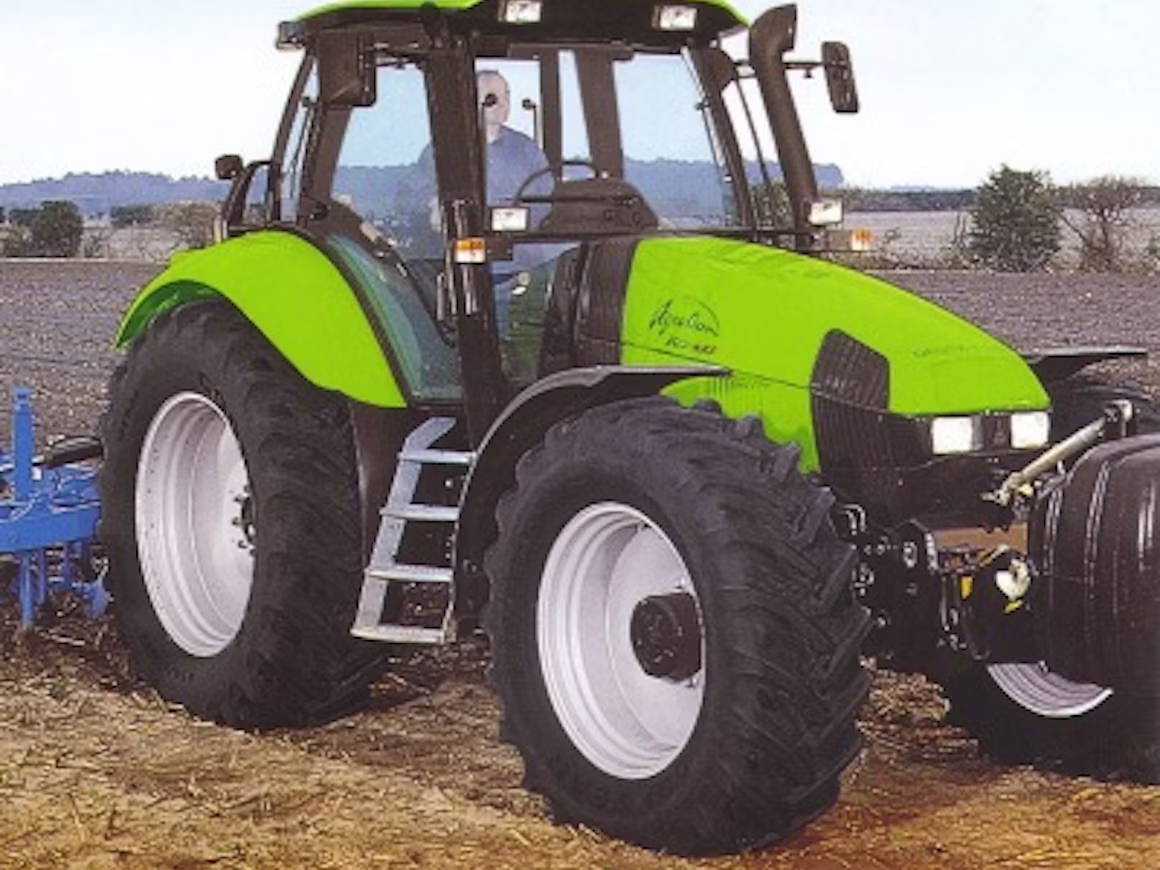

Deutz-Fahr Agrotron 175 MK3
Deutz-Fahr Agrotron 175 MK3 — Agrotron Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
7501 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Wet disc brakesReference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank380.0 LReference
Engine130.5 kWReference
Deutz BF6M1013EReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power130.5 kWReference
Rated RPM2350Reference
Operating RPM1900-2350Reference
Transmission
27-speedReference
Gears27 forward and 24 reverseReference
PTO & Hydraulics
Pump flow120.0 lpmReference
Rear lift10001 kgReference
Rear PTO Type750, 1000Reference
Dimensions
Wheelbase302 cmReference
Weight7501 kgReference
Front tire480/70R30Reference
Rear tire20.8R38Reference
Ag front480/70R30Reference
Ag rear20.8R38Reference
Length470 cmReference
Height305 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
