Tractor · 2001Unverified

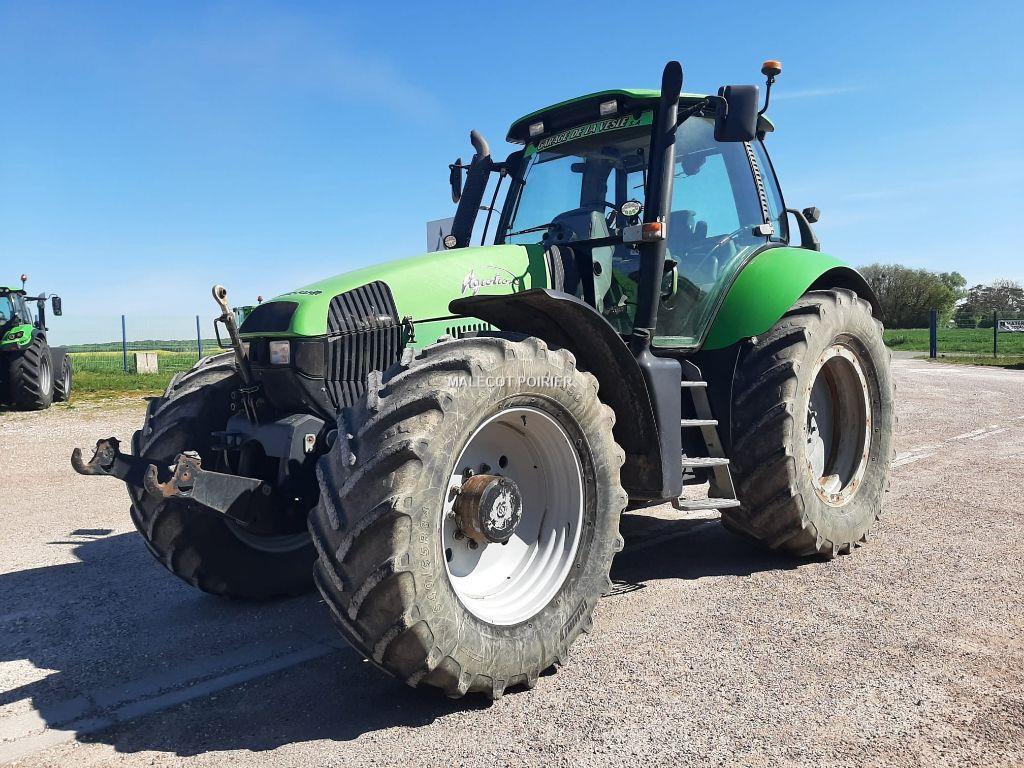

Deutz-Fahr Agrotron 200 MK3
Deutz-Fahr Agrotron 200 MK3 — Agrotron Series · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Weight
7571 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Wet disc brakesReference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank380.0 LReference
Engine149.1 kWReference
Deutz BF6M1013ECReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power149.1 kWReference
Rated RPM2350Reference
Operating RPM1900-2350Reference
Transmission
27-speedReference
Gears27 forward and 24 reverseReference
PTO & Hydraulics
Pump flow120.0 lpmReference
Rear TypeIIIReference
Rear lift10001 kgReference
Front HitchIIReference
Front lift5000 kgReference
Rear PTO Type540E/1000Reference
Front PTO Type1000Reference
Dimensions
Wheelbase303 cmReference
Weight7571 kgReference
Front tire480/70R30Reference
Rear tire20.8R38Reference
Ag front480/70R30Reference
Ag rear20.8R38Reference
Length469 cmReference
Width247 cmReference
Height (cab)306 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
