Tractor · 2002Unverified

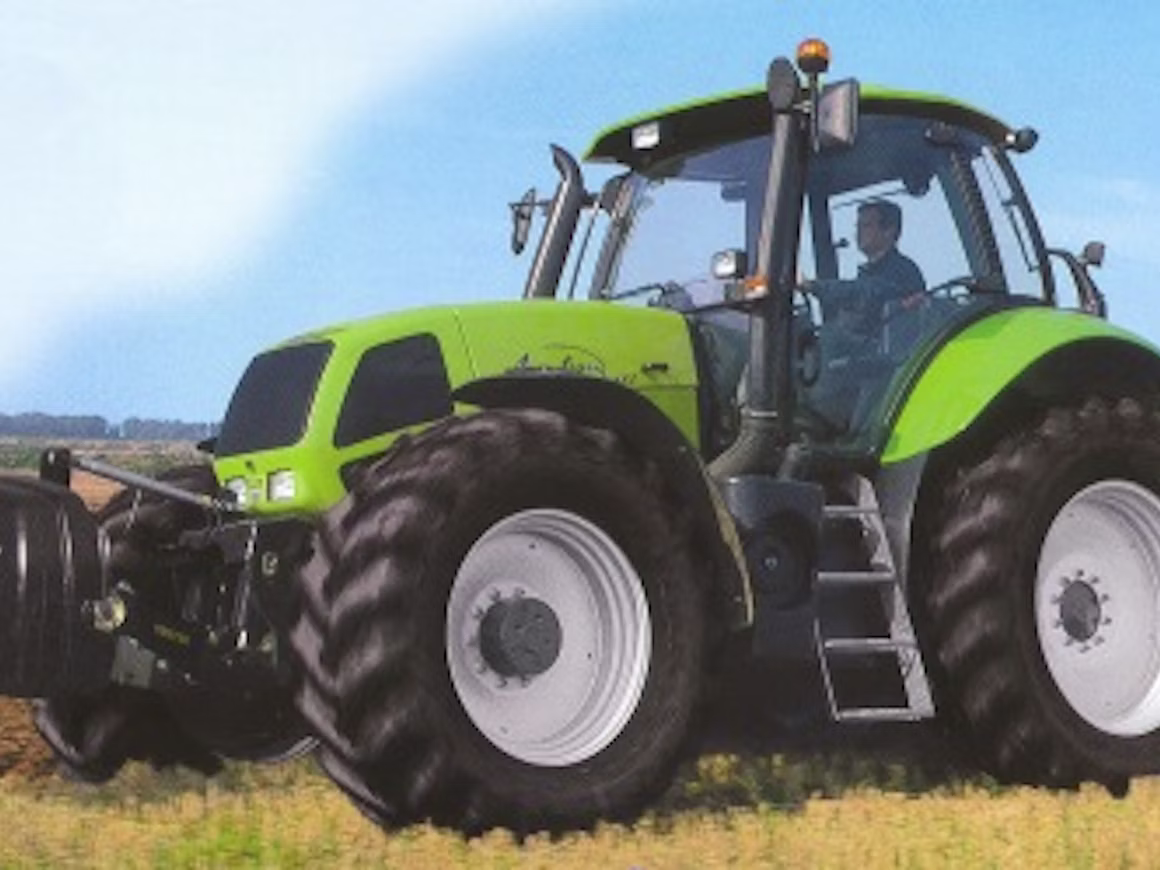

Deutz-Fahr Agrotron 205 MK3
Deutz-Fahr Agrotron 205 MK3 — Agrotron Series · 196 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
196 hp
Weight
9301 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank380.0 LReference
Engine146.2 kWReference
DeutzReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power146.2 kWReference
Rated RPM2300Reference
Transmission
40-speed 4-speed power shiftReference
Type4-speed power shiftReference
Gears40 forward and reverseReference
Four power shift gears in six ranges with additional four-range creeper.Reference
PTO & Hydraulics
Pump flow120.0 lpmReference
Rear TypeIIIReference
Rear lift10501 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase308 cmReference
Weight9301 kgReference
Front tire520/70R34Reference
Rear tire620/70R42Reference
Ag front520/70R34Reference
Ag rear620/70R42Reference
Length513 cmReference
Height329 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
