Tractor · 2003Unverified

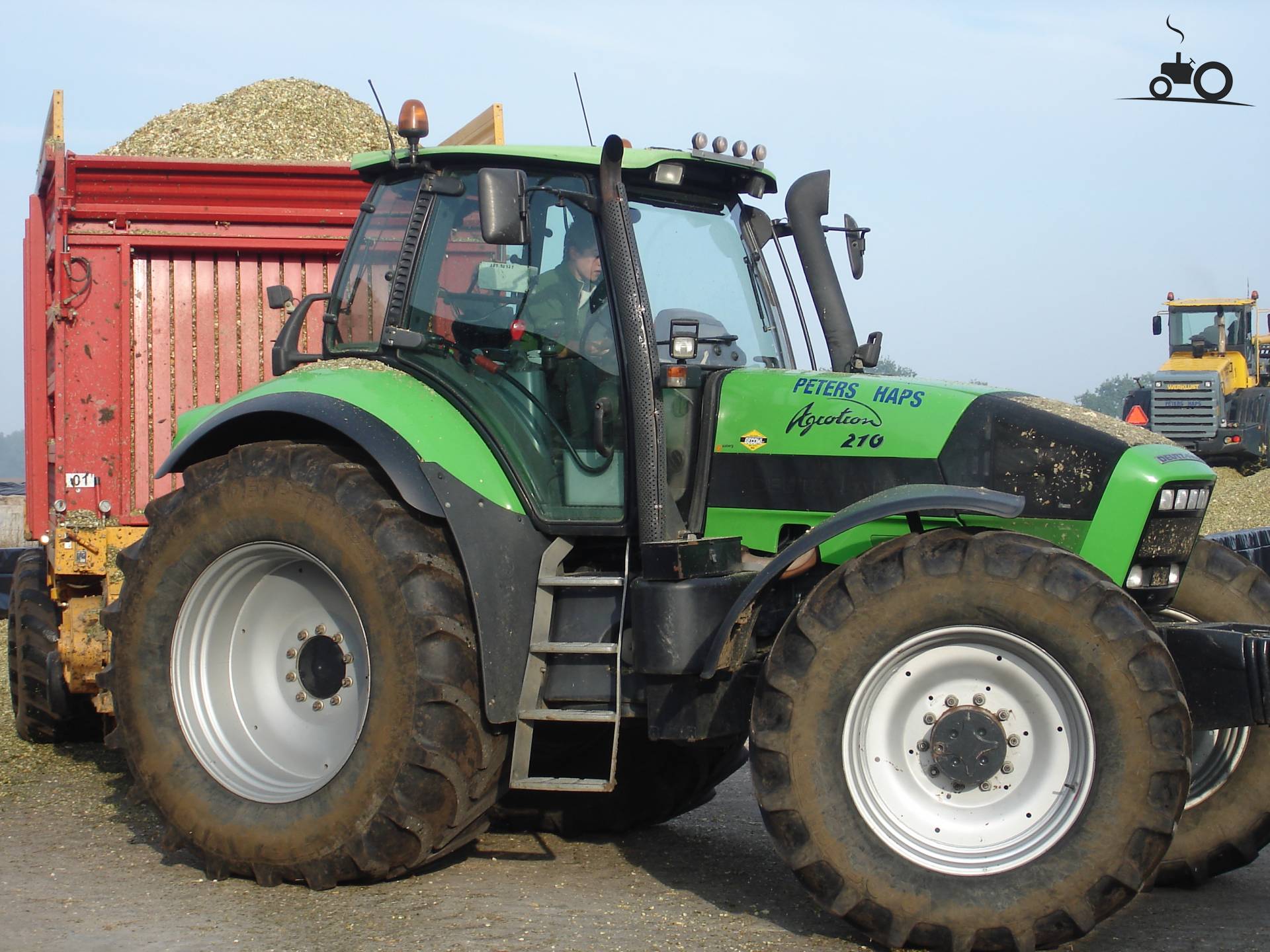

Deutz-Fahr Agrotron 210
Deutz-Fahr Agrotron 210 — Agrotron Series · 197 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
197 hp
Weight
8410 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank360.0 LReference
Fuel tank550.0 LReference
Engine (net)147.0 kWReference
Deutz BF6M1013ECReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Rated Power (net)147.0 kWReference
Maximum Power (net)155.0 kWReference
Rated RPM2300Reference
Torque865.1 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
40-speed four-speed power shiftReference
TransmissionZF 7300Reference
Typefour-speed power shiftReference
Gears40 forward and reverseReference
Four power shift speeds in six ranges with power shuttle, plus an additional four creeper ranges.Reference
PTO & Hydraulics
Typeclosed center load sensingReference
Pressure200.0 barReference
Pump flow120.0 lpmReference
Rear TypeIIIReference
Rear lift10478 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase308 cmReference
Weight8410 kgReference
Front tire520/70R34Reference
Rear tire710/70R42Reference
Standard tires (ag)Front: 520/70R34. Rear: 710/70R42Reference
Optional tires (ag)Front: 480/70R34. Rear: 650/85R38Reference
Optional tires (ag)Front: 520/70R30. Rear: 620/70R42Reference
Optional tires (ag)Front: 520/70R30. Rear: 710/70R38Reference
Optional tires (ag)Front: 600/65R30. Rear: 650/65R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 710/70R38Reference
Length500 cmReference
Height (cab)325 cmReference
Shipping weight8410 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
