Tractor · 2004Unverified

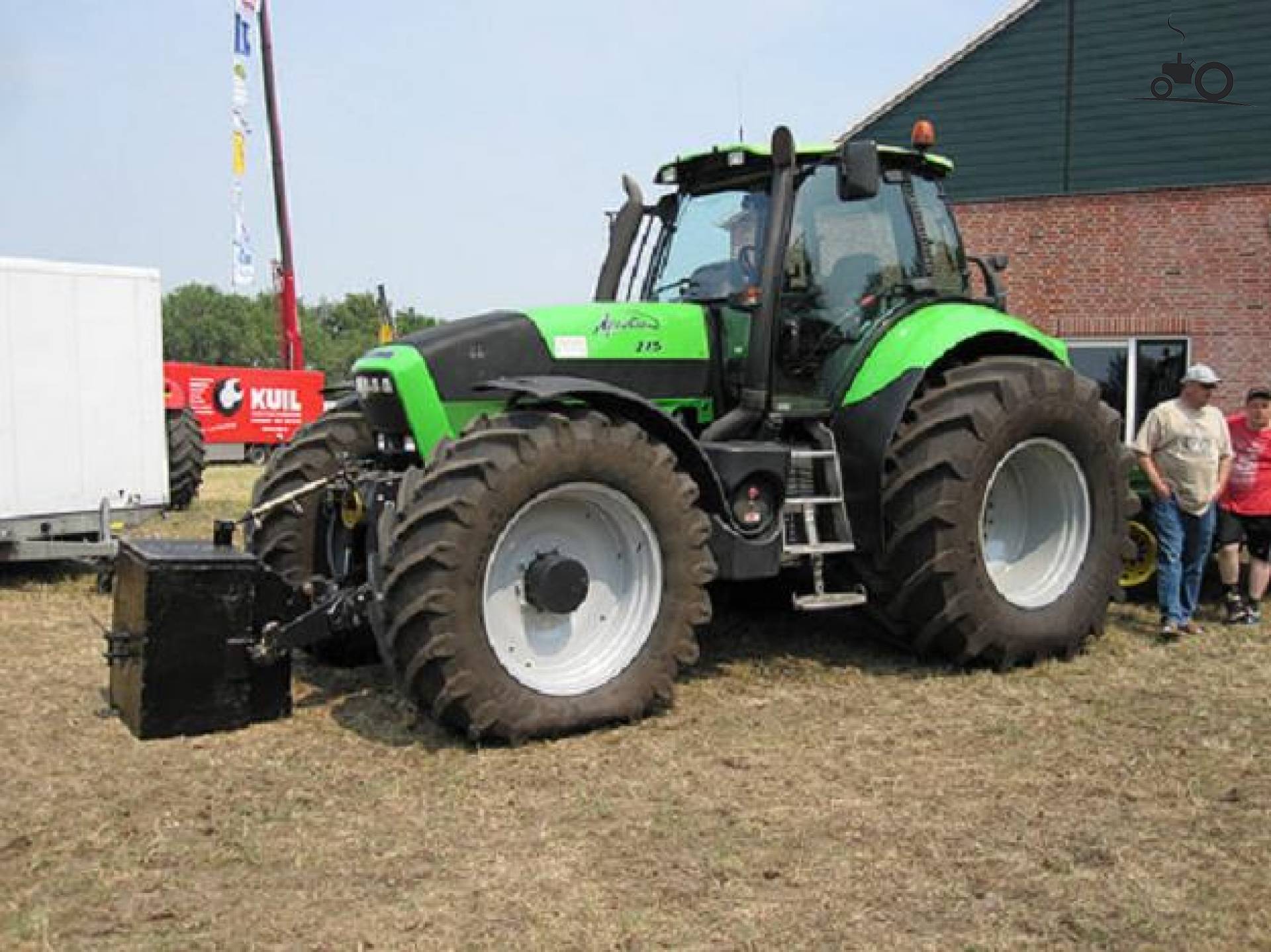

Deutz-Fahr Agrotron 215
Deutz-Fahr Agrotron 215 — Agrotron Series · 197 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
197 hp
Weight
8410 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank360.0 LReference
Fuel tank550.0 LReference
Engine (net)147.0 kWReference
Engine (max)169.0 kWReference
Deutz BF6M1013ECReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Rated Power (net)147.0 kWReference
Maximum Power (net)155.0 kWReference
Maximum Power (gross)169.0 kWReference
Rated RPM2300Reference
Torque865.1 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
40-speed four-speed power shiftReference
TransmissionZF 7300Reference
Typefour-speed power shiftReference
Gears40 forward and reverseReference
Four power shift speeds in six ranges with power shuttle, plus an additional four creeper ranges.Reference
PTO & Hydraulics
Typeclosed center load sensingReference
Pressure200.0 barReference
Pump flow120.0 lpmReference
Rear TypeIIIReference
Rear lift10478 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase308 cmReference
Weight8410 kgReference
Length500 cmReference
Height (cab)325 cmReference
Shipping weight8410 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
