Tractor · 1998Unverified

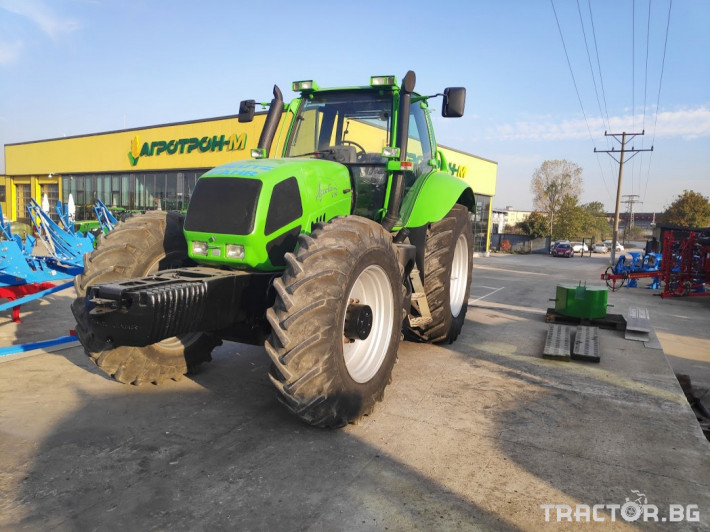

Deutz-Fahr Agrotron 230

Name: Deutz-Fahr Agrotron 230
Brand: Deutz-Fahr

Deutz-Fahr Agrotron 230 — Agrotron Series · 230 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron 230 is a tractor model with a 230 hp rating, positioning it among the higher-powered machines in its class. Manufactured between 1998 and 2001, it features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system via a powershift transmission. The listed weight of the Agrotron 230 is 8350 kg, and it is suited for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

230 hp

Weight

8350 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

230 hp

Recorded weight

8350 kg

Transmissions

40-speed four-speed power shift

Production years

1998-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

SAME 7.1L 6-cyl dieselReference

Fuel tank550.0 LReference

Engine171.5 kWReference

SAME BF6M 1013 FCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Power171.5 kWReference

Rated RPM2350Reference

Transmission

40-speed four-speed power shiftReference

TransmissionZF T 7300Reference

Typefour-speed power shiftReference

Gears40 forward and reverseReference

Clutchhydraulic wet discReference

Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle.Reference

PTO & Hydraulics

Typeclosed centerReference

Pump flow120.0 lpmReference

Rear TypeIIIReference

Rear lift10500 kgReference

Front HitchIIReference

Front lift5100 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase308 cmReference

Weight8350 kgReference

Front tire520/70R38Reference

Rear tire620/85R38Reference

Ag front520/70R38Reference

Ag rear620/85R38Reference

Length436 cmReference

Length513 cmReference

Width248 cmReference

Height (cab)322 cmReference

Shipping weight8350 kgReference

Max weight14000 kgReference

Ground clearance54 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
