Tractor · 2001Unverified

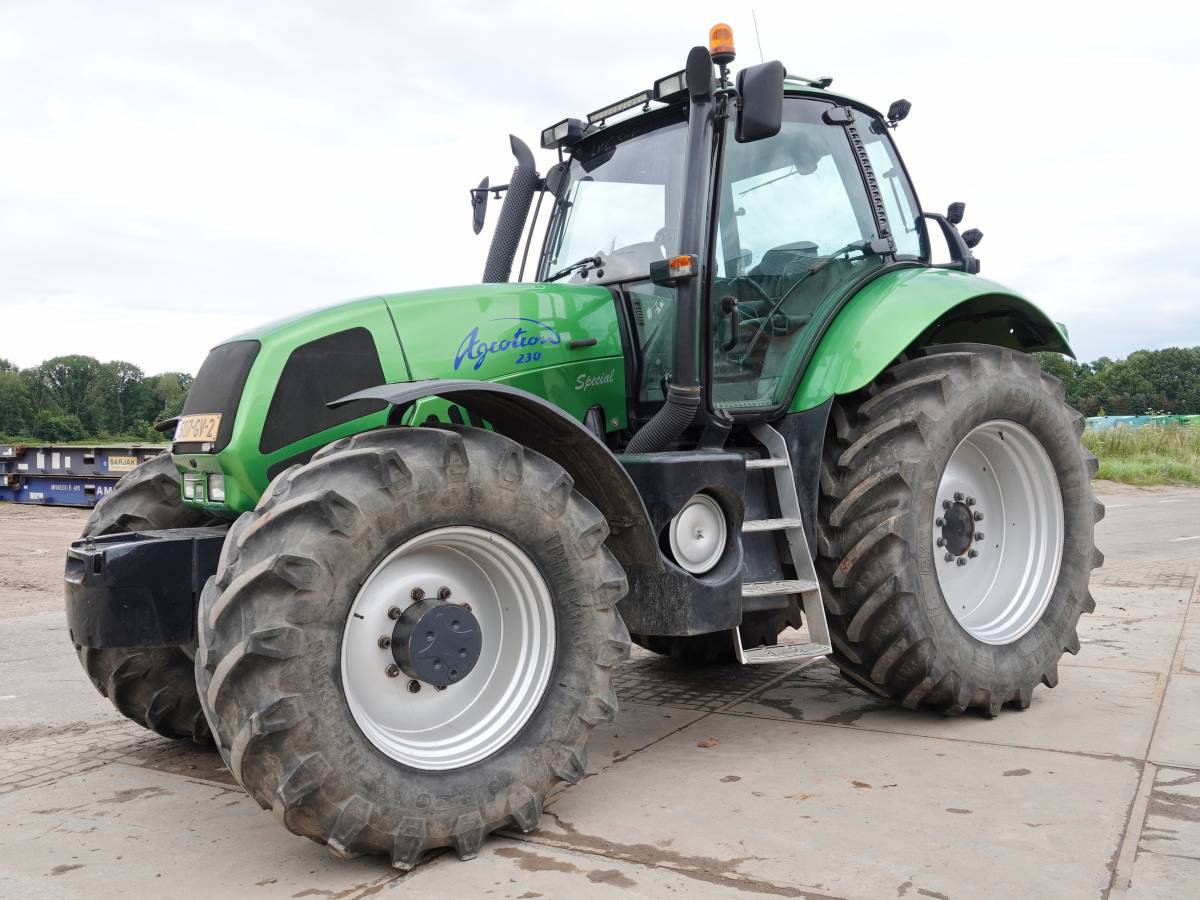

Deutz-Fahr Agrotron 230 MK3

Name: Deutz-Fahr Agrotron 230 MK3
Brand: Deutz-Fahr

Deutz-Fahr Agrotron 230 MK3 — Agrotron Series · 230 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron 230 MK3 is a tractor model with a power rating of 230 hp, positioning it among the more powerful machines in its class. Manufactured from 2001 to 2003, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight of this tractor is 8911 kg, suitable for jobs covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

230 hp

Weight

8911 kg

Catalogue coverage

Variants represented

Richest spec table

34 rows

Recorded power

230 hp

Recorded weight

8911 kg

Transmissions

40-speed 4-speed power shift

Production years

2001-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 7.1L 6-cyl dieselReference

Fuel tank550.0 LReference

Engine171.5 kWReference

Deutz BF6M 1013CReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Power171.5 kWReference

Rated RPM2350Reference

Transmission

40-speed 4-speed power shiftReference

Type4-speed power shiftReference

Gears40 forward and reverseReference

Four power shift gears in six ranges with additional four-range creeper.Reference

PTO & Hydraulics

Pump flow120.0 lpmReference

Rear TypeIIIReference

Rear lift10501 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

Wheelbase308 cmReference

Weight8911 kgReference

Front tire18.4R34Reference

Rear tire20.8R42Reference

Ag front18.4R34Reference

Ag rear20.8R42Reference

Length513 cmReference

Height329 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
