Tractor · 1995Unverified

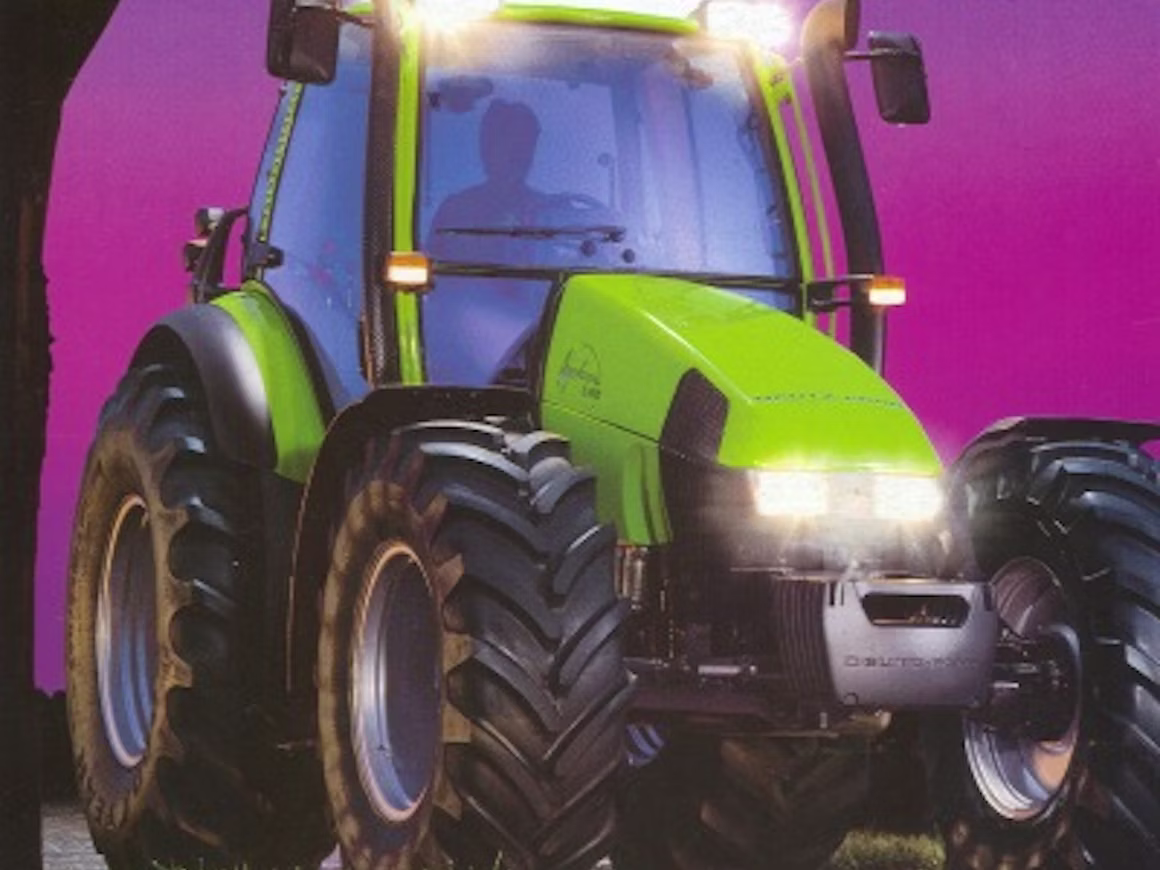

Deutz-Fahr Agrotron 4.70

Name: Deutz-Fahr Agrotron 4.70
Brand: Deutz-Fahr

Deutz-Fahr Agrotron 4.70 — Agrotron-4 Series · 68 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron 4.70 is a tractor model boasting a rated power of 68 hp, a mid-range figure for its class. Available from 1995 to 1997, the Agrotron 4.70 is equipped with a 4-cylinder turbocharged diesel engine, paired with four-wheel drive and a 24-speed gearbox. Its operating weight is listed at 3970 kg, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

68 hp

Weight

3970 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

68 hp

Recorded weight

3970 kg

Transmissions

24-speed

Production years

1995-1997

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Utility tractorReference

Four-wheel driveReference

Engine

Deutz 3.2L 4-cyl dieselReference

Fuel tank180.2 LReference

Engine50.7 kWReference

DeutzReference

turbocharged dieselReference

4-cylinderReference

Displacement3.2 LReference

Bore/Stroke94 x 115 mmReference

Power50.7 kWReference

Rated RPM2300Reference

Transmission

24-speedReference

Gears24 forward and 8 reverseReference

PTO & Hydraulics

Pump flow65.9 lpmReference

Rear lift6221 kgReference

Rear PTO Type540, 1000Reference

Dimensions

Wheelbase242 cmReference

Weight3970 kgReference

Front tire13.6R24Reference

Rear tire16.9R34Reference

Ag front13.6R24Reference

Ag rear16.9R34Reference

Length400 cmReference

Height272 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
