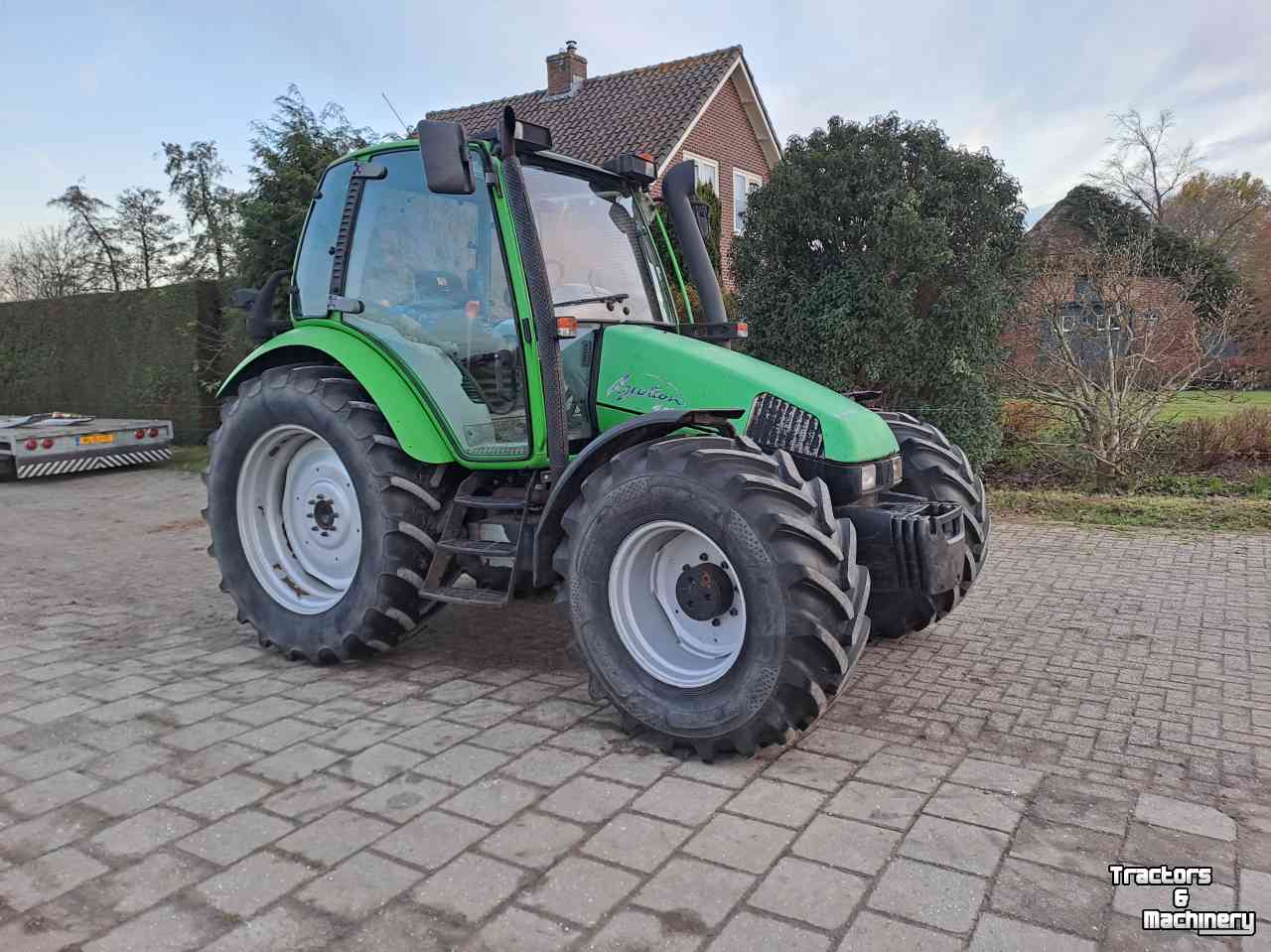

The Deutz-Fahr Agrotron 4.80 is a tractor with an engine rating of 75 hp, placing it roughly in the middle of its class in terms of power output. Production of the Agrotron 4.80 occurred between the years 1995 and 1997. It features a 4-cylinder turbocharged diesel engine coupled to a 24-speed gearbox, providing four-wheel drive. The tractor has a listed weight of 3970 kg and is suited for use on areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3970 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
75 hp
Recorded weight
3970 kg
Transmissions
24-speed
Production years
1995-1997
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Four-wheel driveReference
Engine
Deutz 3.2L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine55.9 kWReference
DeutzReference
turbocharged dieselReference
4-cylinderReference
Displacement3.2 LReference
Bore/Stroke94 x 115 mmReference
Power55.9 kWReference
Rated RPM2300Reference
Transmission
24-speedReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Pump flow65.9 lpmReference
Rear lift6221 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase242 cmReference
Weight3970 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length400 cmReference
Height272 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
