Tractor · 1995Unverified

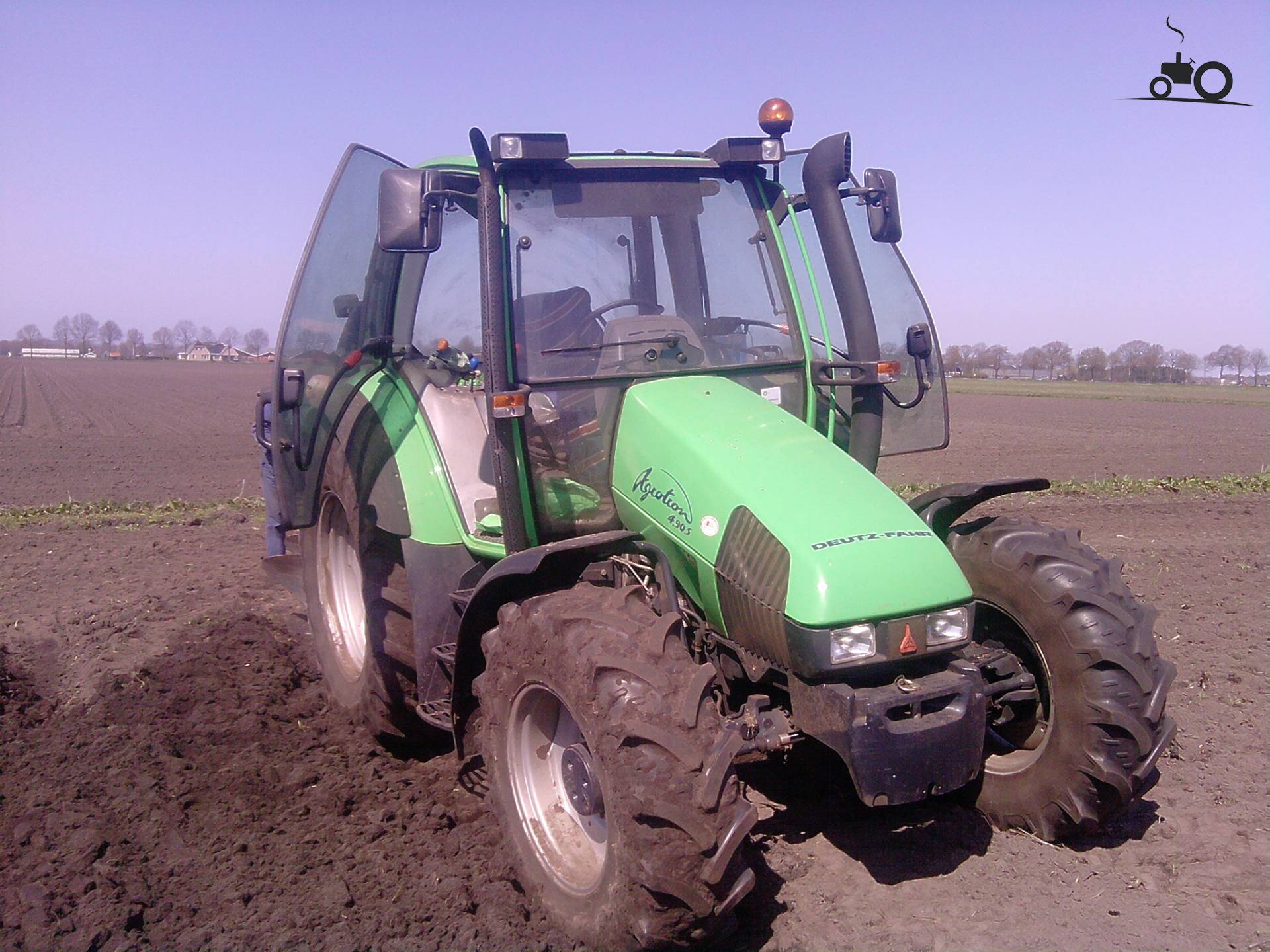

Deutz-Fahr Agrotron 4.90
Deutz-Fahr Agrotron 4.90 — Agrotron-4 Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
4160 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Utility tractorReference
Four-wheel driveReference
Engine
Deutz 3.2L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine65.6 kWReference
DeutzReference
turbocharged dieselReference
4-cylinderReference
Displacement3.2 LReference
Bore/Stroke94 x 115 mmReference
Power65.6 kWReference
Rated RPM2300Reference
Transmission
24-speedReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Pump flow65.9 lpmReference
Rear lift6221 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase242 cmReference
Weight4160 kgReference
Front tire16.9R24Reference
Rear tire16.9R34Reference
Ag front16.9R24Reference
Ag rear16.9R34Reference
Length400 cmReference
Height275 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
