Tractor · 2001Unverified

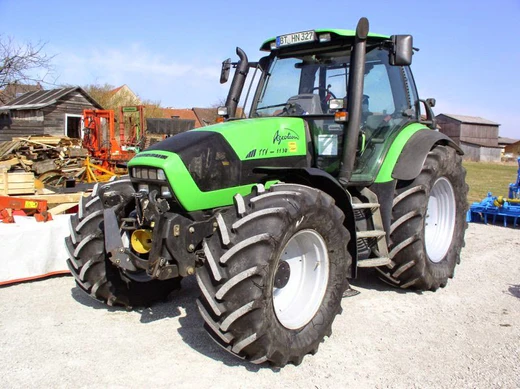

Deutz-Fahr Agrotron TTV 1145

Name: Deutz-Fahr Agrotron TTV 1145
Brand: Deutz-Fahr

Deutz-Fahr Agrotron TTV 1145 — Model year 2001-20032004-2007 · 140 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron TTV 1145 is a tractor model with an approximate engine rating of 140 hp, placing it at the high-power end of its class. Produced from 2001 to 2007, this model features a 6-cylinder turbocharged diesel engine, which is liquid-cooled and paired with four-wheel drive. Its listed operating weight is 6251 kg, making it suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Weight

6251 kg

Catalogue coverage

Variants represented

Richest spec table

37 rows

Recorded power

140 hp

Recorded weight

6251 kg

Production years

2001-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-condtioning.Reference

Engine

Deutz 7.1L 6-cyl dieselReference

Fuel tank310.0 LReference

Engine104.4 kWReference

Deutz BF6L1013EReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.1 LReference

Bore/Stroke108 x 130 mmReference

Power104.4 kWReference

Rated RPM2300Reference

Torque556.1 NmReference

Torque RPM1380Reference

Starter typeelectricReference

Transmission

infinitely variable transmissionReference

TransmissionZF EccomReference

Typeinfinitely variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Pump flow120.0 lpmReference

Rear TypeIII/IIReference

Rear lift7241 kgReference

Rear PTOindependentReference

Rear PTO Type540/750/1000/1250Reference

Dimensions

Wheelbase277 cmReference

Weight6251 kgReference

Front tire480/70R30Reference

Rear tire20.8R38Reference

Ag front480/70R30Reference

Ag rear20.8R38Reference

Length468 cmReference

Height294 cmReference

Electrical

Charging systemalternatorReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
