Tractor · 2001Unverified

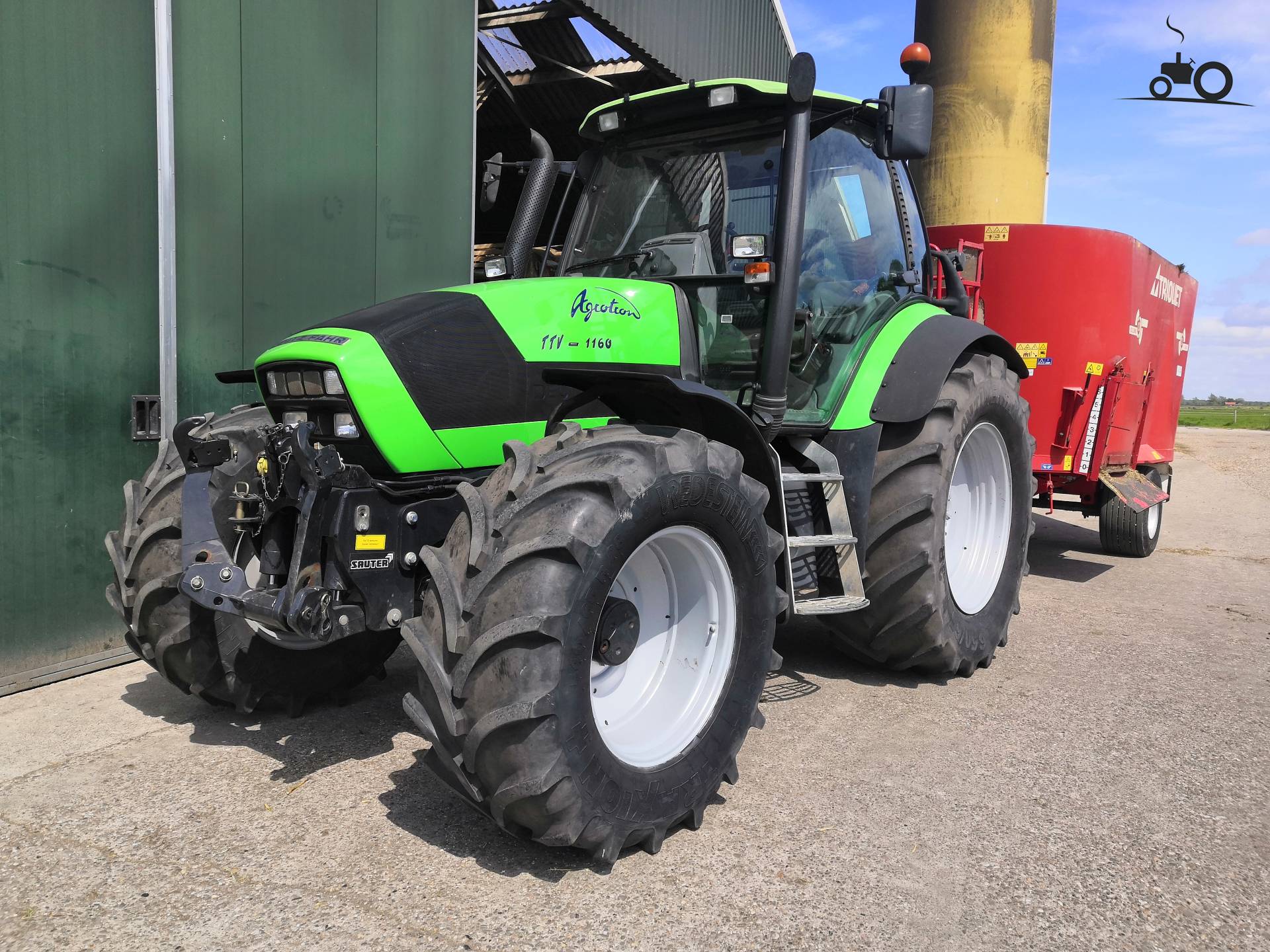

Deutz-Fahr Agrotron TTV 1160
Deutz-Fahr Agrotron TTV 1160 — Model year 2001-20032004-2007 · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
6251 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-condtioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Fuel tank310.0 LReference
Engine111.9 kWReference
Deutz BF6L1013EReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Power111.9 kWReference
Rated RPM2300Reference
Torque594.1 NmReference
Torque RPM1380Reference
Starter typeelectricReference
Transmission
infinitely variable transmissionReference
TransmissionZF EccomReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pump flow120.0 lpmReference
Rear TypeIII/IIReference
Rear lift7241 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000/1250Reference
Dimensions
Wheelbase277 cmReference
Weight6251 kgReference
Front tire480/70R30Reference
Rear tire20.8R38Reference
Ag front480/70R30Reference
Ag rear20.8R38Reference
Length468 cmReference
Height294 cmReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
