Tractor · 2007Unverified

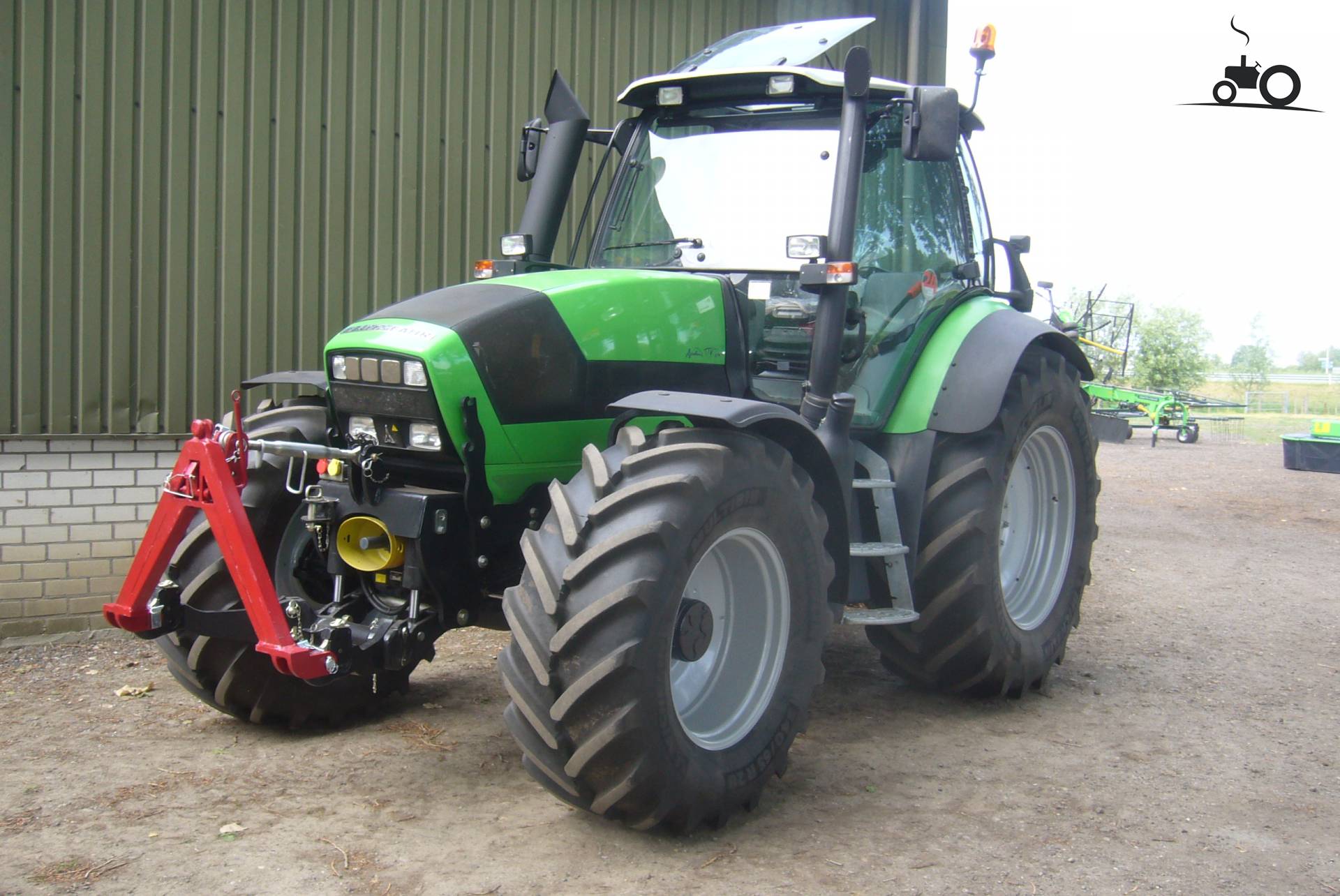

Deutz-Fahr Agrotron TTV 610
Deutz-Fahr Agrotron TTV 610 — Agrotron TTV Series · 157 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
157 hp
Weight
6525 kg
Hover a source tag to verify
Overview
ManufacturerDeutz-FahrReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockautomatic front and rear differential locksReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. Mechical or pneumatic suspension optional.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank305.1 LReference
Engine (net)117.1 kWReference
Deutz TCD 2012 L6 4VReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (net)117.1 kWReference
Maximum Power (net)123.0 kWReference
Fuel systemcommon railReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Starter power4.0 kWReference
Oil change500 hReference
PTO & Hydraulics
Typeload sensingReference
Valves4Reference
Pump flow120.0 lpmReference
Steering flow43.9 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift9200 kgReference
Front HitchIII/IIReference
Front lift4000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/540E/1000/1000EReference
Engine RPM540@1946Reference
Engine RPM540E@1645Reference
Engine RPM1000@1946Reference
Engine RPM1000E@1645Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1960Reference
Dimensions
Wheelbase276 cmReference
Weight6525 kgReference
Front tire480/70R28Reference
Rear tire580/70R38Reference
Standard tires (ag)Front: 480/70R28. Rear: 580/70R38Reference
Optional tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Length475 cmReference
Width249 cmReference
Height (cab)299 cmReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH190Reference
Transmission
Oil capacity104.0 LReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
