Tractor · 2007Unverified

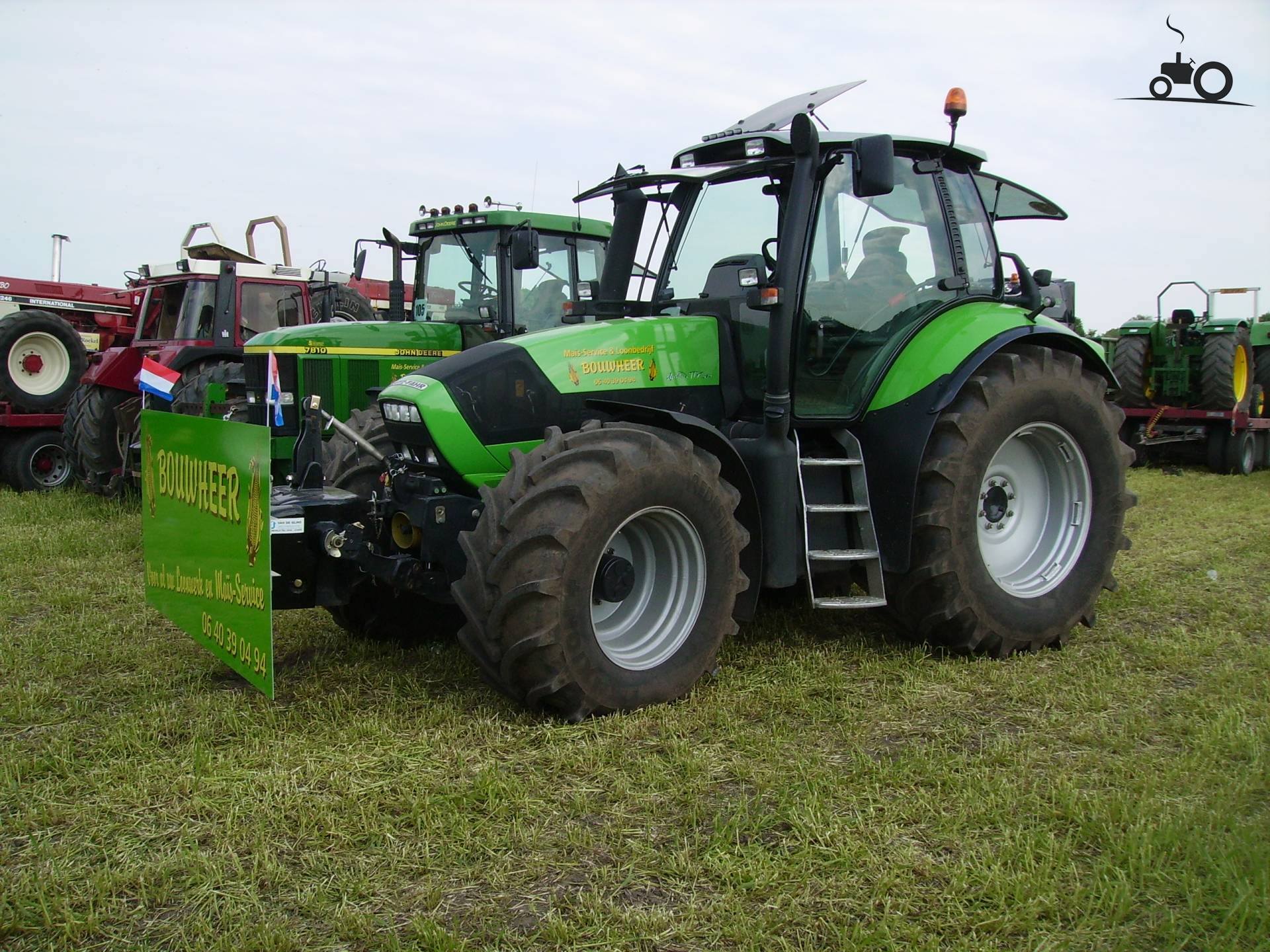

Deutz-Fahr Agrotron TTV 620

Name: Deutz-Fahr Agrotron TTV 620
Brand: Deutz-Fahr

Deutz-Fahr Agrotron TTV 620 — Agrotron TTV Series · 165 hp. Reference specifications; pending source verification.

The Deutz-Fahr Agrotron TTV 620 is a tractor with a rated output of 165 hp, categorising it among the higher-powered machines in its class. It was manufactured from 2007 to 2012. The tractor is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive. Its listed weight is 6525 kg, making it suitable for tasks involving around 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

165 hp

Weight

6525 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

165 hp

Recorded weight

6525 kg

Production years

2007-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerDeutz-FahrReference

Row-Crop tractorReference

Four-wheel driveReference

Differential lockautomatic front and rear differential locksReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. Mechical or pneumatic suspension optional.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank305.1 LReference

Engine (net)123.0 kWReference

Deutz TCD 2012 L6 4VReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (net)123.0 kWReference

Maximum Power (net)126.0 kWReference

Fuel systemcommon railReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Starter power4.0 kWReference

Oil change500 hReference

PTO & Hydraulics

Typeload sensingReference

Valves4Reference

Pump flow120.0 lpmReference

Steering flow43.9 lpmReference

Rear TypeIII/IIReference

Controlposition and draft controlReference

Rear lift9200 kgReference

Front HitchIII/IIReference

Front lift4000 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/540E/1000/1000EReference

Engine RPM540@1946Reference

Engine RPM540E@1645Reference

Engine RPM1000@1946Reference

Engine RPM1000E@1645Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1960Reference

Dimensions

Weight6525 kgReference

Front tire480/70R28Reference

Rear tire580/70R38Reference

Standard tires (ag)Front: 480/70R28. Rear: 580/70R38Reference

Optional tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Optional tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Length475 cmReference

Width249 cmReference

Height (cab)299 cmReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Battery volts12Reference

Battery AH190Reference

Transmission

Oil capacity104.0 LReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
